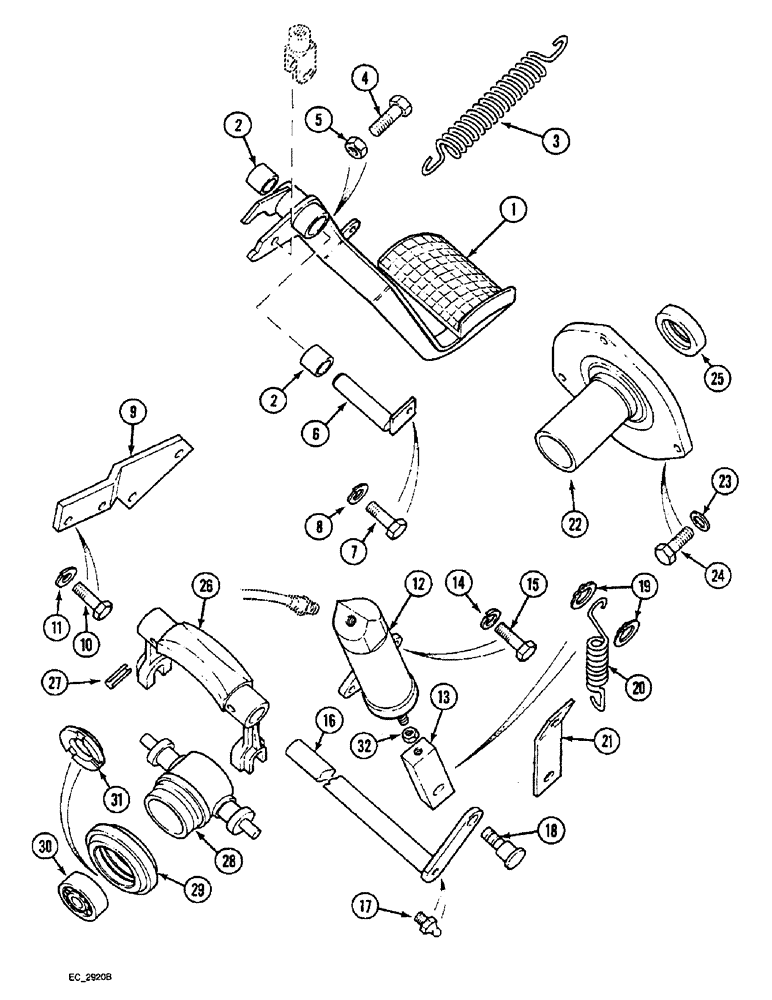

Запчасти Case IH 4240 (6-054) - CLUTCH CONTROLS, LOWER, TRACTOR WITH CAB (06) - POWER TRAIN

1

1343120C3

PEDAL ASSY.

PEDAL ASSEMBLY - clutch, (Forward and reverse attachment) (See Figure 6-88), Includes: Ref. 2 and 3

1шт.

1

1500215C92

PEDAL ASSY.

PEDAL ASSEMBLY - clutch, complete with bush and spring, Includes: Ref. 2 and 3

1шт.

2

3226548R1

BUSHING

- pedal, clutch

2шт.

3

2783696R1

SPRING

- tension

1шт.

4

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm (Pedal stop)

1шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

6

3129796R1

PIN ASSY.

PIN - clutch pedal

1шт.

7

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 16 mm

1шт.

8

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

9

3129810R1

SUPPORT

- slave cylinder

1шт.

10

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

3129799R92

MASTER CYLINDER

CYLINDER - clutch slave (See Figure 6-56), Includes: Ref. 13

1шт.

13

3129801R1

CLEVIS

EYE - connecting

1шт.

14

892-11010

LOCK WASHER,M10

2шт.

15

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm

2шт.

16

1502227C2

LARGE PIN,22mm OD x 275mm L

SHAFT - clutch release

1шт.

17

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch

2шт.

18

80347C1

PIN,25mm OD x 50mm L

- spring anchor

1шт.

19

100-3337

SNAP RING,E-Type, 0.3" OD

Ring, Retaining, #37, .300" Dia, E-Type

2шт.

20

1500587C2

SPRING

- bearing pre-load

1шт.

21

1500594C1

PLATE

- spring anchor

1шт.

22

71229C3

SUPPORT,41.7mm ID x 96.51mm OD x 113.8mm L

CARRIER - clutch release sleeve

1шт.

23

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

3шт.

24

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

3шт.

24

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch (With creeper)

2шт.

24

113-232

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

1шт.

25

108982C1

OIL SEAL

SEAL - oil, release sleeve carrier

1шт.

26

398342R2

CLUTCH FORK

FORK - clutch release

1шт.

27

38-32022

PIN,5/16" x 1 3/8", Coiled

2шт.

28

1970934C1

SLEEVE

- clutch release, 12 inch heavy duty clutch

1шт.

29

85104C92

BALL BEARING,73.1mm ID x 101.6mm OD x 21.38mm W

BEARING - ball, clutch release

1шт.

30

69844C91

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING - ball, clutch pilot

1шт.

31

1970876C3

THRUST WASHER,53.6mm ID x 100mm OD x 7mm Thk

WASHER - thrust

1шт.

32

824-1410

NUT,M10, Cl 5

- hex

1шт.
