Запчасти Case IH 4240 (6-050) - CLUTCH CONTROLS, TRACTOR WITHOUT CAB (06) - POWER TRAIN

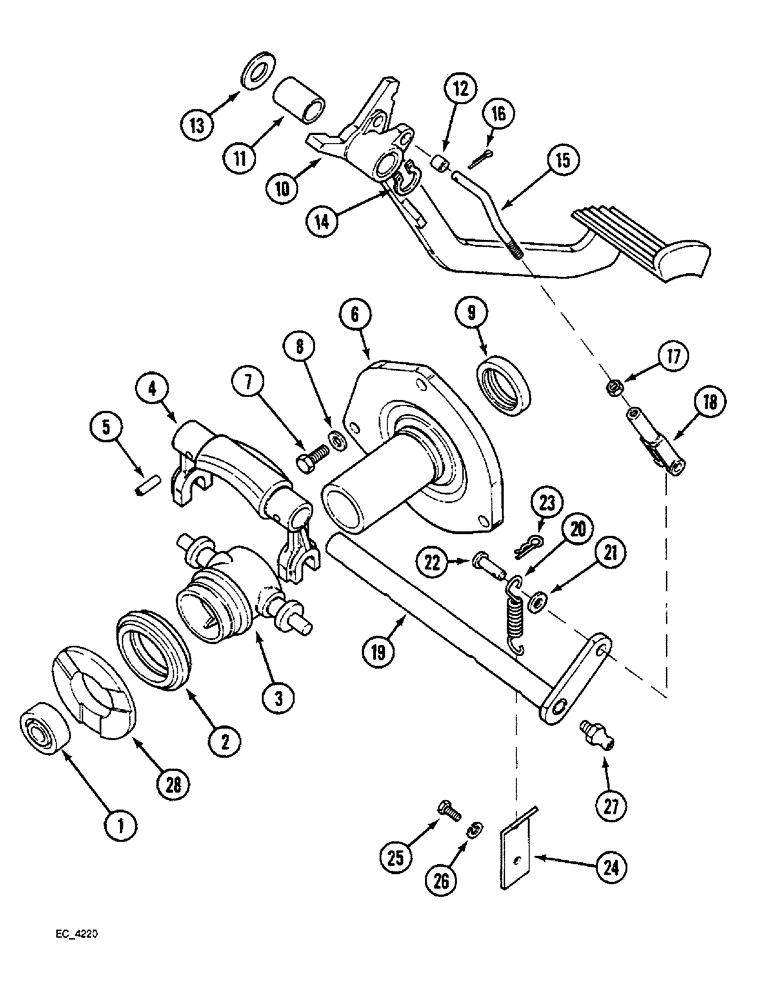

Схема запчастей Case IH 4240 - (6-050) - CLUTCH CONTROLS, TRACTOR WITHOUT CAB (06) - POWER TRAIN
14
8
23
28
16
24
25
12
15
7
27
19
9
11
13
3
20
10
5
2
6
17
26
1
18
22
4

Артикул

Название

Примечание

Количество

1

69844C91

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING - ball, clutch pilot

1шт.

2

85104C92

BALL BEARING,73.1mm ID x 101.6mm OD x 21.38mm W

BEARING - ball, clutch release

1шт.

3

1970934C1

SLEEVE

- clutch release, 12 inch heavy duty clutch

1шт.

4

398342R2

CLUTCH FORK

FORK - clutch release

1шт.

5

38-32022

PIN,5/16" x 1 3/8", Coiled

2шт.

6

71229C3

SUPPORT,41.7mm ID x 96.51mm OD x 113.8mm L

CARRIER - clutch release sleeve

1шт.

7

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

3шт.

7

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch (With creeper)

2шт.

7

113-232

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

with Creeper Hex, 3/8"-16 x 2", G5, Full Thd

1шт.

8

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

3шт.

9

108982C1

OIL SEAL

SEAL - oil

1шт.

10

1500212C93

PEDAL ASSY.

PEDAL - clutch, with bushing, Includes: Ref. 11 and 12

1шт.

11

530816R1

BUSHING,22.25mm ID x 25.48mm OD x 38.1mm L

- clutch pedal

1шт.

12

1500445C1

BUSHING,9.6mm ID x 15.03mm OD x 9.65mm L

- clutch operating rod

1шт.

13

495-81054

WASHER,0.91" ID x 1.38" OD x 0.06" Thk

- flat, 29/32 x 1-3/8 x 1/16 inch

1шт.

14

100-1187

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

1шт.

15

71086C1

ROD ASSY.

ROD ASSEMBLY - clutch operating

1шт.

16

432-610

COTTER PIN,3/32" x 5/8"

PIN - cotter, 1/8 x 3/4 inch

1шт.

17

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

18

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, ADJUSTABLE, 3/8"-24 x 2 1/2"

1шт.

19

1288115C2

PIN

SHAFT ASSEMBLY - clutch release

1шт.

20

1500587C2

SPRING

- bearing pre-load

1шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

22

27-6134

CLEVIS PIN,3/8" x 1.344"

PIN - clevis, 3/8 x 1-11/32 inch

1шт.

23

3114469R1

SPLIT PIN/SAFETY PIN

PIN - quick release

1шт.

24

1500594C1

PLATE

- spring anchor

1шт.

25

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

27

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING - grease, 65 degree, 1/4 drive type x 3/4 inch

2шт.

28

1970876C3

THRUST WASHER,53.6mm ID x 100mm OD x 7mm Thk

WASHER - thrust

1шт.

Выбрано товаров: 30
