Запчасти Case IH 4240 (6-046) - DIFFERENTIAL (06) - POWER TRAIN

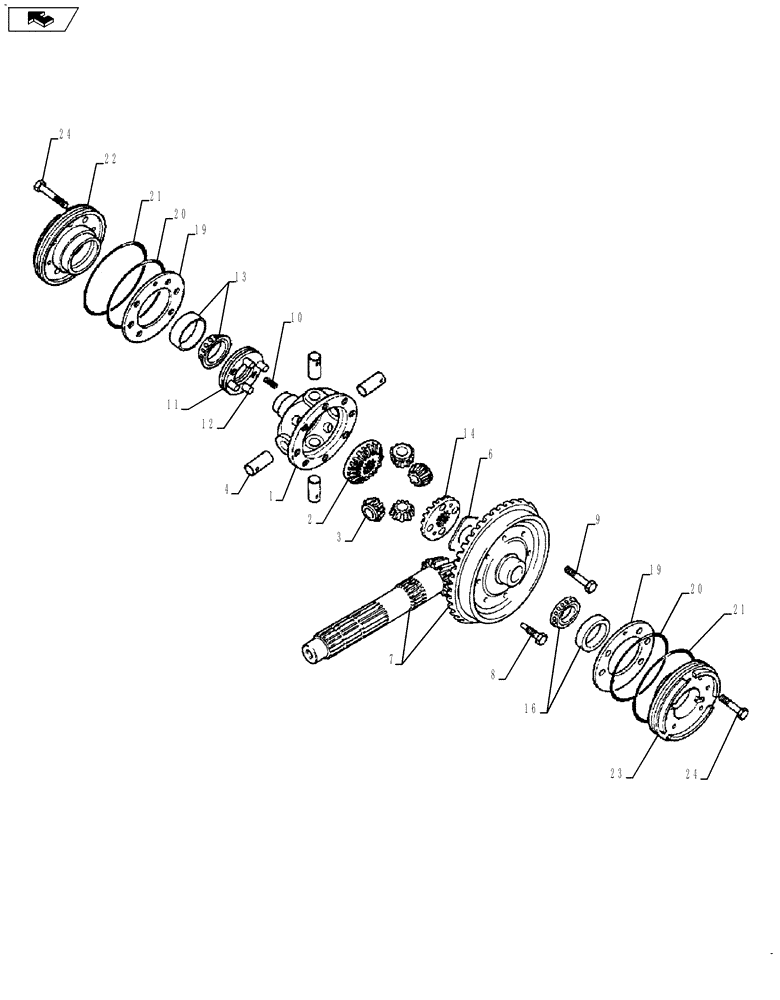

Схема запчастей Case IH 4240 - (6-046) - DIFFERENTIAL (06) - POWER TRAIN
8
16
3
20
2
21
24
20
10
7
19
6
home
21
1
14
9
24
4
13
11
22
19
23
12

Артикул

Название

Примечание

Количество

1

399763R1

PINION CARRIER

CARRIER - differential

1шт.

2

404336R1

PINION

GEAR - bevel, differential, 20 teeth

1шт.

3

399776R1

PINION

GEAR - differential pinion, 10 teeth

4шт.

4

399804R1

PIN

- differential pinion

4шт.

6

399778R1

THRUST WASHER

- thrust, differential bevel gear

1шт.

7

116638A2

GEAR, BEVEL

GEAR - bevel, with matched shaft, 11/52 teeth

1шт.

8

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT - dowel, 1/2 NC x 2-1/8 inch, hex

1шт.

9

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

7шт.

10

400867R1

SPRING

- differential lock

2шт.

11

399764R11

LOCKING RING

RING ASSEMBLY - differential lock, Includes: Ref. 12

1шт.

12

399765R1

PIN

- coupling

4шт.

13

105504H

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.2 mm

ASSEMBLY - roller, right (Order 105497H and 52843V)

1шт.

14

3129493R1

PINION

GEAR - bevel, differential

1шт.

16

399766R91

ROLLER BEARING

BEARING ASSEMBLY - roller, left (Order 105502H and 105496H)

1шт.

65419C1

BEARING CARRIER

KIT - service differential bearing carrier shims, Includes: Ref. 19

1шт.

19

399771R1

SHIM

- bearing carrier, 0.003 inch

1шт.

19

399772R1

SHIM

- bearing carrier, 0.007 inch

1шт.

19

399773R1

SHIM

- bearing carrier, 0.012 inch

1шт.

19

399774R1

SHIM

- bearing carrier, 0.030 inch

1шт.

20

238-5367

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

- 7-1/2 ID x 3/16 inch, class 6

2шт.

21

238-6267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

2шт.

22

399770R2

BEARING CARRIER

CARRIER - differential bearing, right

1шт.

23

399769R2

BEARING CARRIER

CARRIER - differential bearing, left

1шт.

24

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

Выбрано товаров: 24
