Запчасти Case IH 4240 (6-014) - SPEED TRANSMISSION, WITH CREEPER (06) - POWER TRAIN

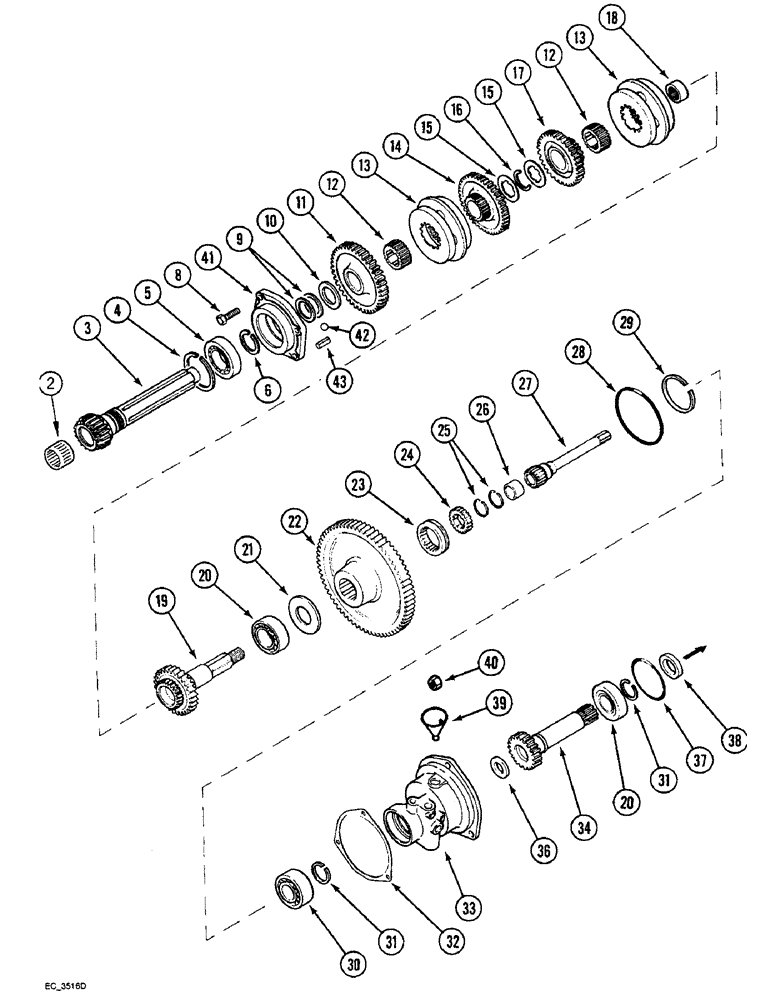

Схема запчастей Case IH 4240 - (6-014) - SPEED TRANSMISSION, WITH CREEPER (06) - POWER TRAIN
30
3
42
13
20
39
14
15
40
11
18
37
6
32
38
36
9
16
31
26
13
19
4
17
27
29
15
41
12
21
24
5
2
10
23
12
31
34
33
22
20
25
43
28
8

Артикул

Название

Примечание

Количество

2

116589A1

BEARING, NEEDLE,37.3mm ID x 50.01mm OD x 28.5mm W

BEARING - needle, forward end of bevel shaft

1шт.

3

115584A2

SHAFT

- main, speed transmission

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING - internal snap

1шт.

5

ST278

BEARING, BALL,49.99mm ID x 90mm OD x 20mm W

BEARING - ball

1шт.

6

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

9

116597A1

SEAL

RING - sealing, main shaft lubrication line

2шт.

10

186787A1

THRUST WASHER

WASHER - thrust, 6.89/6.83

1шт.

10

186788A1

THRUST WASHER

WASHER - thrust, 7.02/6.96

1шт.

10

398332R2

THRUST WASHER

WASHER - thrust, 7.14/7.08

1шт.

10

186789A1

THRUST WASHER

WASHER - thrust, 7.27/7.21

1шт.

10

183881A1

THRUST WASHER

WASHER - thrust, 7.40/7.34

1шт.

10

186790A1

THRUST WASHER

WASHER - thrust, 7.53/7.47

1шт.

10

183664A1

THRUST WASHER

WASHER - thrust, 7.65/7.59

1шт.

10

186791A1

THRUST WASHER

WASHER - thrust, 7.78/7.72

1шт.

10

183882A1

THRUST WASHER

WASHER - thrust, 7.91/7.85

1шт.

10

186792A1

THRUST WASHER

WASHER - thrust, 8.03/7.79

1шт.

10

183883A1

THRUST WASHER

WASHER - thrust, 8.16/8.10

1шт.

10

244369A1

THRUST WASHER

WASHER - thrust, 6.63/6.57

1шт.

10

244368A1

THRUST WASHER

WASHER - thrust, 6.76/6.70

1шт.

11

398331R3

PINION

GEAR - 1st speed driven, 41 teeth

1шт.

12

398325R1

HUB

- speed shift, 25.15

2шт.

12

183665A1

HUB

- speed shift, 24.64

2шт.

12

183877A1

HUB

- speed shift, 24.13

2шт.

12

183884A1

HUB

- speed shift, 23.63

2шт.

12

244365A1

HUB

- speed shift, 25.66

2шт.

13

65793C4

SYNCHRONIZER

- with cups

2шт.

14

398330R4

PINION

GEAR - 2nd speed driven, 33 teeth

1шт.

15

398328R3

THRUST WASHER

WASHER - thrust, 1.78/1.74

2шт.

15

186793A1

THRUST WASHER

WASHER - thrust, 1.90/1.86

2шт.

15

183878A1

THRUST WASHER

WASHER - thrust, 2.03/1.99

2шт.

15

186794A1

THRUST WASHER

WASHER - thrust, 2.16/2.12

2шт.

15

182854A1

THRUST WASHER

WASHER - thrust, 2.28/2.24

2шт.

15

186795A1

THRUST WASHER

WASHER - thrust, 2.41/2.37

2шт.

15

183879A1

THRUST WASHER

WASHER - thrust, 2.54/2.50

2шт.

15

186796A1

THRUST WASHER

WASHER - thrust, 2.66/2.62

2шт.

15

183880A1

THRUST WASHER

WASHER - thrust, 2.79/2.75

2шт.

15

244366A1

THRUST WASHER

WASHER - thrust, 1.65/1.61

2шт.

15

244367A1

THRUST WASHER

WASHER - thrust, 1.53/1.49

2шт.

16

398329R1

CIRCLIP

RING - snap, synchronizer locating

1шт.

17

398327R4

PINION

GEAR - 4th speed driven, 24 teeth

1шт.

18

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING - needle

1шт.

19

1343158C1

SHAFT

- creep speed, 28 teeth

1шт.

20

ST342

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING - roller

2шт.

21

1343162C1

THRUST WASHER

- thrust

1шт.

22

1343155C3

GEAR

- driven, 67 teeth

1шт.

23

1343159C3

COLLAR

- shift

1шт.

24

1343160C3

HUB

- shift sleeve

1шт.

25

1343169C1

SNAP RING

RING - retaining

2шт.

26

1349002C1

BEARING, NEEDLE

BEARING - needle

1шт.

27

1343153C4

SHAFT

- clutch

1шт.

28

238-6252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

29

101-21334

SNAP RING,#334, 3.590", Int

RING - retaining, internal, 3.59 inch

1шт.

30

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING - ball

1шт.

31

101-11177

SNAP RING,#177, 1.657", Ext

RING - snap, 1.657 inch, retaining, external

2шт.

32

1343292C1

SHIM

- cage

1шт.

33

1343151C2

BALL RACE

CAGE - clutch shaft

1шт.

34

1342556C2

SHAFT

- drive, IPTO drive, 21 teeth

1шт.

36

1277445C2

SEAL

- oil, IPTO drive shaft

1шт.

37

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

38

108982C1

OIL SEAL

SEAL - oil, release sleeve

1шт.

39

132829A1

CUP

- lubrication

1шт.

40

231-1406

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

NSS

NOT SOLD SEPARAT

CARRIER ASSEMBLY - main shaft (Order components), Includes: Ref. 41 - 43

1шт.

41

116587A2

BALL RACE

CARRIER - main shaft

1шт.

42

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch Dia.

2шт.

43

38-1605

LOCK PIN,2.36mm OD x 7.92mm L, Slotted

Pin, 3/32" x 5/16", Slotted

1шт.

Выбрано товаров: 67
