Запчасти Case IH 4240 (6-008) - CLUTCH HOUSING TOP COVER, TRACTOR WITH CAB (06) - POWER TRAIN

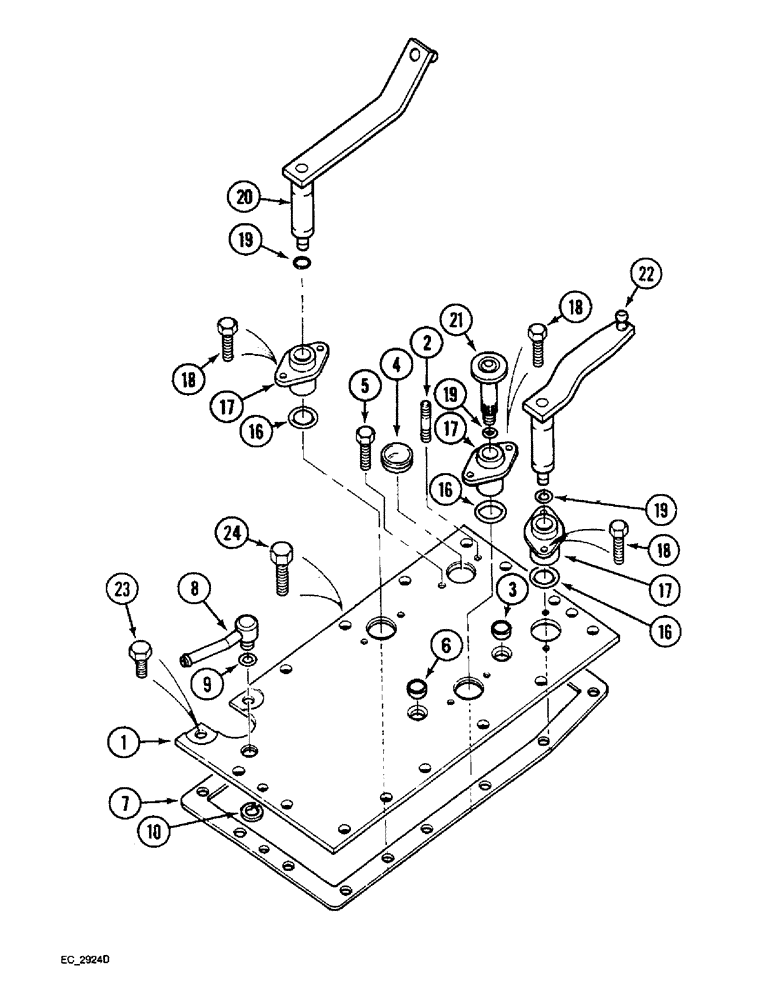

Схема запчастей Case IH 4240 - (6-008) - CLUTCH HOUSING TOP COVER, TRACTOR WITH CAB (06) - POWER TRAIN
21
10
2
23
24
6
16
19
7
19
18
5
17
16
22
4
16
19
8
3
18
18
20
17
17
1

Артикул

Название

Примечание

Количество

127429A1

COVER ASSY

COVER ASSEMBLY - (With 2 speed power shift or standard transmission) (Order components), Includes: Ref. 1 - 6

1шт.

127432A1

COVER ASSY

COVER ASSEMBLY - (With creeper) (Order components), Includes: Ref. 1 - 6

1шт.

127430A1

COVER ASSY

COVER ASSEMBLY - (With forward and reverse) (Order components), Includes: Ref. 1 - 6

1шт.

1

1288495C1

COVER

- (With 2 speed power shift or standard transmission)

1шт.

1

1343282C1

COVER

- (With creeper)

1шт.

1

1343125C1

COVER

- (With forward and reverse)

1шт.

2

3129159R1

STUD

- top cover

1шт.

3

41-1612

PLUG,Cup, 3/4", Stainless

1шт.

4

41-1620

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch diameter

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

6

41-108

PLUG,Cup, 1/2"

- cup, 1/2 inch diameter

1шт.

7

1970894C1

GASKET

- clutch housing top cover (Without creeper)

1шт.

7

1970895C1

GASKET

- clutch housing top cover (With creeper)

1шт.

8

3129197R1

PIPE

TUBE - brake line dump

1шт.

9

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

10

100-1168

SNAP RING,#68, Ext

Ring, Snap, #68, Ext

1шт.

16

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

3шт.

17

3129165R2

HOUSING

- speed shift arm

3шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

20

115905A1

ARM ASSY.

ARM - speed shift actuating, 3rd/4th (See Figure 6-66)

1шт.

21

1277030C1

PIVOT ASSY.

PIVOT - interlock

1шт.

22

115903A1

ARM ASSY.

ARM - speed shift actuating, 1st/2nd (See Figure 6-66)

1шт.

23

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(With forward and reverse) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

24

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

14шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

Выбрано товаров: 26
