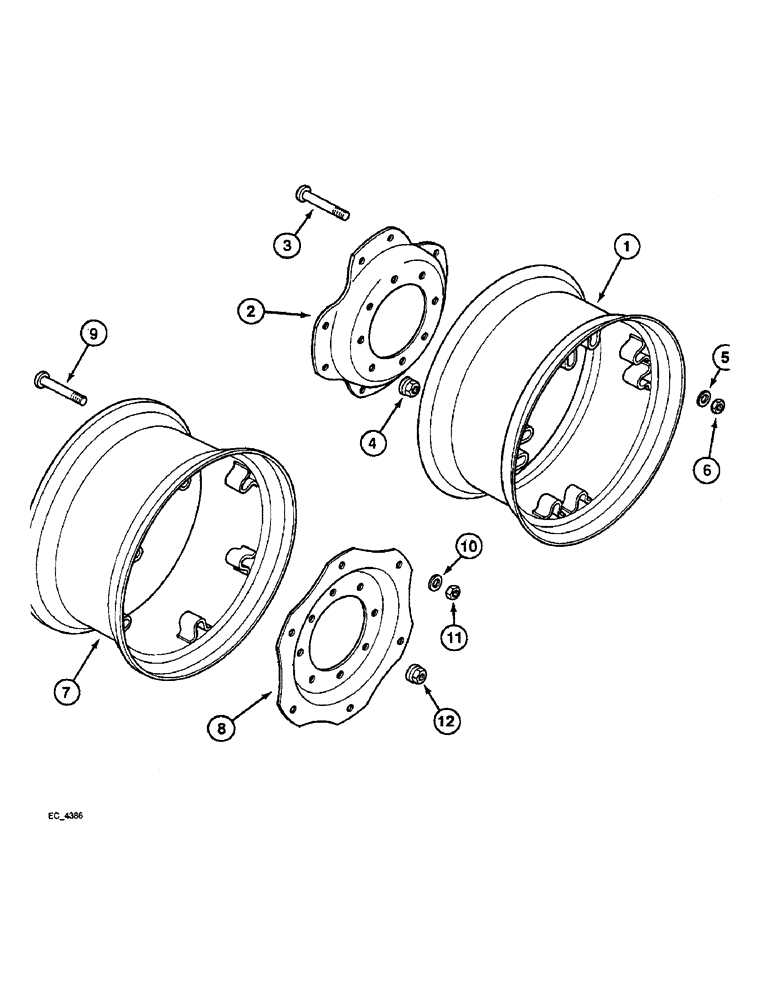

Запчасти Case IH 4240 (5-56) - FRONT WHEELS, MFD TRACTOR, 24 INCH AND 28 INCH WHEELS (05) - STEERING

1

188329A1

RIM

ASSY - adjustable, W7-24 (For 9.5 x 24 tire)

2шт.

2

188330A1

DISC, WHEEL

DISC - wheel, 24 inch

2шт.

3

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

16шт.

4

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, flange, 18 mm

16шт.

5

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

16шт.

6

1335134C1

NUT

- hex, 16 mm - 2.00

16шт.

1

188334A1

RIM

ASSY - adjustable, W10-24 (For 11.2 x 24 or 12.4 x 24 tire)

2шт.

2

188330A1

DISC, WHEEL

DISC - wheel, 24 inch

2шт.

3

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

16шт.

4

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, flange, 18 mm

16шт.

5

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

16шт.

6

1335134C1

NUT

- hex, 16 mm - 2.00

16шт.

1

188340A1

RIM

ASSY - adjustable, W12-24 (For 14.9 x 24 tire)

2шт.

2

188330A1

DISC, WHEEL

DISC - wheel, 24 inch

2шт.

3

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

16шт.

4

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, flange, 18 mm

16шт.

5

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

16шт.

6

1335134C1

NUT

- hex, 16 mm - 2.00

16шт.

89790C93

WHEEL (STEERING)

WHEEL - front, W10-28 (For 11.2 x 28 tire), Includes: Ref. 7 - 11

2шт.

7

89791C1

RIM

- wheel, 10-28

1шт.

8

89792C1

DISC, WHEEL

DISC - 28 inch wheel

1шт.

9

89744C2

BOLT

BOLT - carriage, 16 x 122 mm

6шт.

10

89746C2

WASHER

- flat, 17 x 28 x 4 mm

6шт.

11

89745C2

NUT

- hex, 16 mm

6шт.

12

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, flange, 18 mm

16шт.
