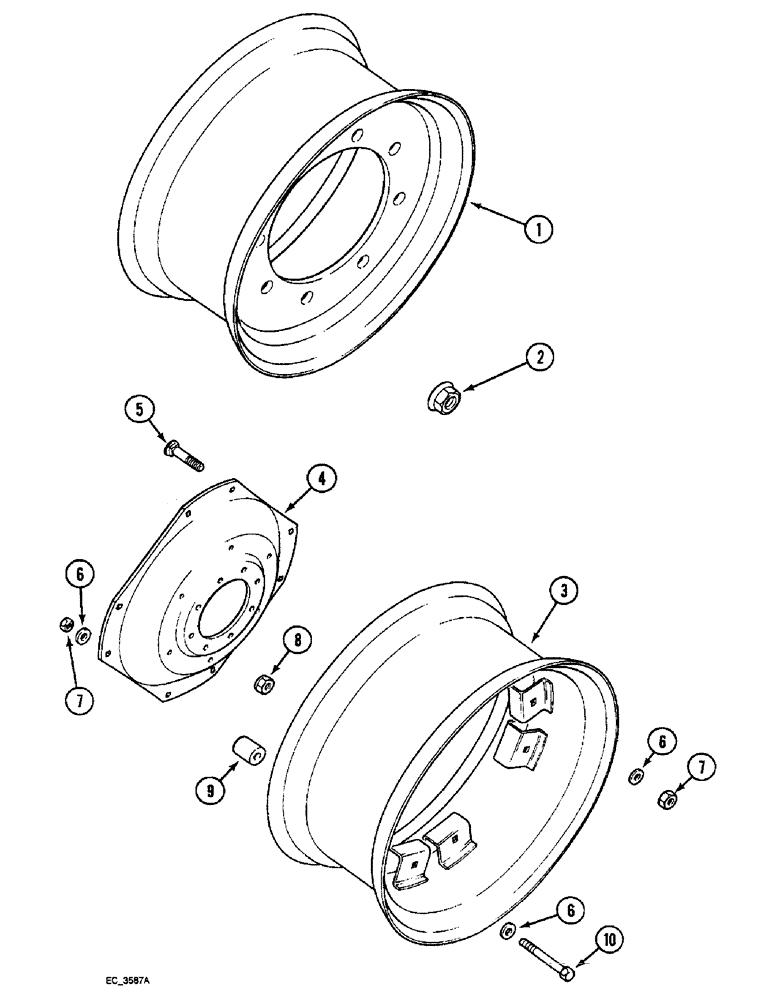

Запчасти Case IH 4240 (5-52) - FRONT WHEELS, MFD TRACTOR, 16 IN., 16-1/2 IN., 17-1/2 IN., 18 IN. AND 24 IN. WHEELS (05) - STEERING

1

1343071C1

WHEEL

- front, 5.5-16 (For 7.50 x 16 tire), 16 in. wheels

2шт.

2

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, flange, 18 mm, 2.50, wheel retaining, 16 in. wheels

16шт.

1

1343074C1

WHEEL

- front, 9.75-16.5 (For 10.5 x 16.5 tire), 16-1/2 in. wheels

2шт.

2

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, flange, 18 mm, 2.50, wheel retaining, 16-1/2 in. wheels

16шт.

1

1343072C1

WHEEL

- front, 10.5-17.5 (For 14 x 17.5 tire), 17-1/2 in. wheels

2шт.

2

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, flange, 18 mm, 2.50, wheel retaining, 17-1/2 in. wheels

16шт.

1

1328756C1

WHEEL

- front, 9.00-18 (For 10.5-18 tire), 18 in. wheels

2шт.

2

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, flange, 18 mm, 2.50, wheel retaining, 18 in. wheels

16шт.

3

1531577C2

RIM

- adjustable, W10-24 (For 11.2 x 24 tire), 24 in. wheels

2шт.

3

T103477

RIM

- adjustable, 12 - 24 (For 13.6 x 24 tire), 24 in. wheels

2шт.

4

1343042C1

DISC, WHEEL

DISC - 24 inch wheel, 24 in. wheels

2шт.

5

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm, 24" wheels

16шт.

6

1335135C1

WASHER

- flat, 17 x 33 x 5 mm, 24 in. wheels

16шт.

7

1335134C1

NUT

- hex, 16 mm - 2.00, 24 in. wheels

16шт.

8

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, flange, 18 mm, 2.50, wheel retaining, 24 in. wheels

16шт.

9

1985737C1

SPACER

- for 80 inch tread, 24 in. wheels

8шт.

10

828-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

- hex, 16 - 2.0 x 120 mm, class 10.9, 24" wheels

16шт.
