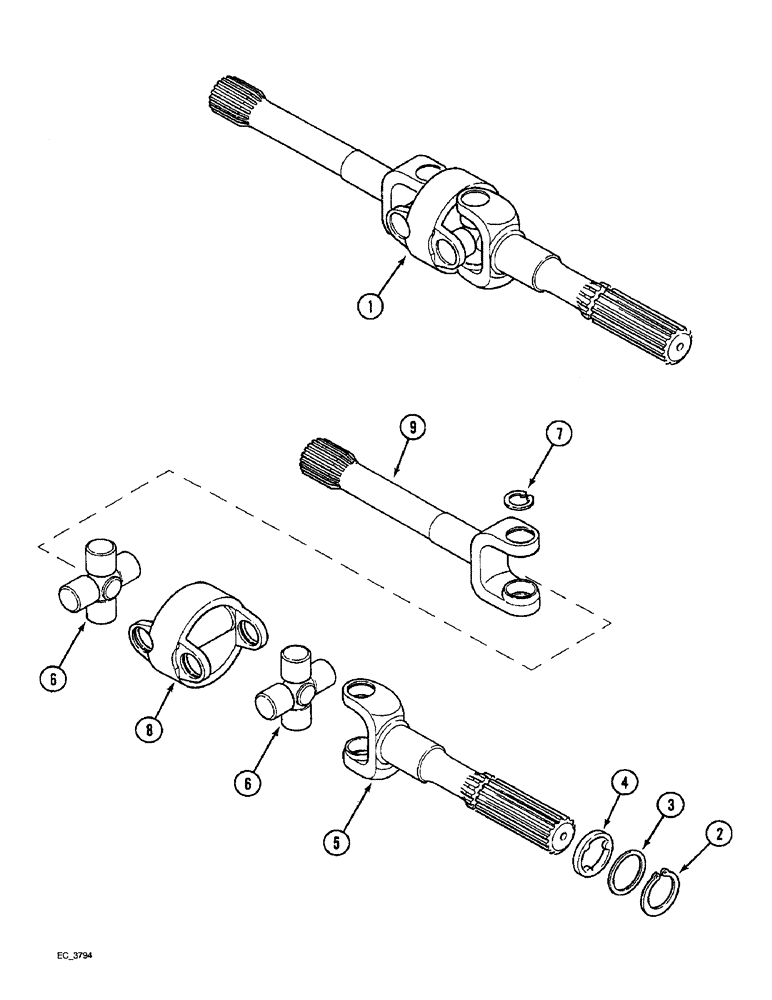

Запчасти Case IH 4240 (5-46) - MECHANICAL FRONT DRIVE, DRIVE SHAFTS (05) - STEERING

1

1537637C1

DRIVE SHAFT

SHAFT ASSEMBLY - drive, Includes: Ref. 2 - 9

2шт.

2

800-1134

SNAP RING,M34, Ext

RING, SNAP, , Retaining M34, Ext

1шт.

3

100565A1

WASHER, THRUST

WASHER - thrust

1шт.

4

100550A1

THRUST WASHER

- thrust

1шт.

5

100544A1

HALF SHAFT

SHAFT - axle

1шт.

100546A1

U-JOINT SPIDER

JOINT - universal, Includes: Ref. 6 and 7

2шт.

6

NSS

NOT SOLD SEPARAT

SPIDER - (Order 100546A1)

2шт.

7

100548A1

CIRCLIP

RING - snap

4шт.

8

100545A1

BODY

- connecting

1шт.

9

1537635C1

HALF SHAFT

SHAFT - half

1шт.
