(5-42) - MECHANICAL FRONT DRIVE, BEVEL GEAR PINION SET

Запчасти Case IH 4240 (5-42) - MECHANICAL FRONT DRIVE, BEVEL GEAR PINION SET (05) - STEERING

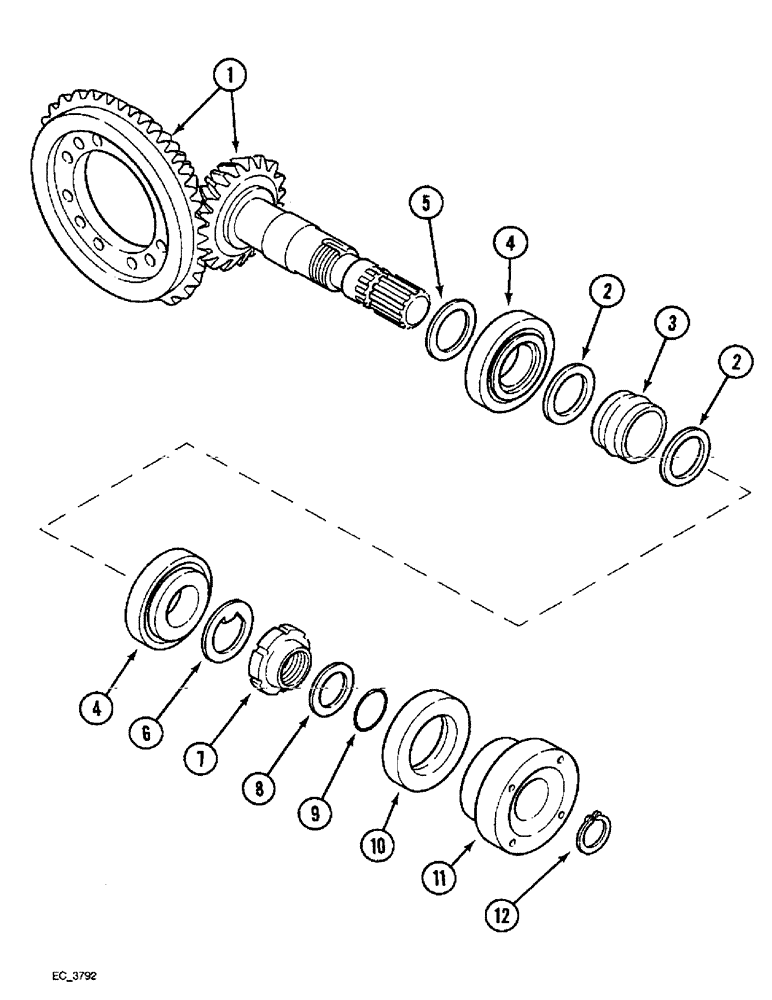

Схема запчастей Case IH 4240 - (5-42) - MECHANICAL FRONT DRIVE, BEVEL GEAR PINION SET (05) - STEERING
2
7
4
5
4
8
2
6
3
10
1
11
12
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1537626C1

GEAR, BEVEL

SHAFT - with drive bevel gear 9/32 teeth

1шт.

1

193524A1

GEAR, BEVEL

SHAFT - with drive bevel gear 10/32 teeth

1шт.

2

1984946C1

WASHER

- spacer

2шт.

3

1537627C1

SPACER

2шт.

4

3232726R91

TAPERED BEARING

- tapered roller

2шт.

5

1966172C1

SHIM

- 2.50 mm thick

1шт.

5

1966173C1

SHIM

- 2.60 mm thick

1шт.

5

1966174C1

SHIM

- 2.70 mm thick

1шт.

5

1966175C1

SHIM

- 2.80 mm thick

1шт.

5

1966176C1

SHIM

- 2.90 mm thick

1шт.

5

1966177C1

SHIM

- 3.00 mm thick

1шт.

5

1966178C1

SHIM

- 3.10 mm thick

1шт.

5

1966179C1

SHIM

- 3.20 mm thick

1шт.

5

1966180C1

SHIM

- 3.30 mm thick

1шт.

5

1966181C1

SHIM

- 3.40 mm thick

1шт.

6

1966574C1

WASHER

- special

1шт.

7

1966573C1

RING NUT

RING - nut, 35 mm - 1.5 mm

1шт.

8

1966264C1

THRUST WASHER

WASHER - thrust

1шт.

9

238-5123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1-3/16 ID x 1/8

1шт.

10

1966194C1

OIL SEAL

SEAL - oil

1шт.

11

1966270C1

FLANGE

- differential

1шт.

12

800-1130

SNAP RING,M30, Ext

1шт.
