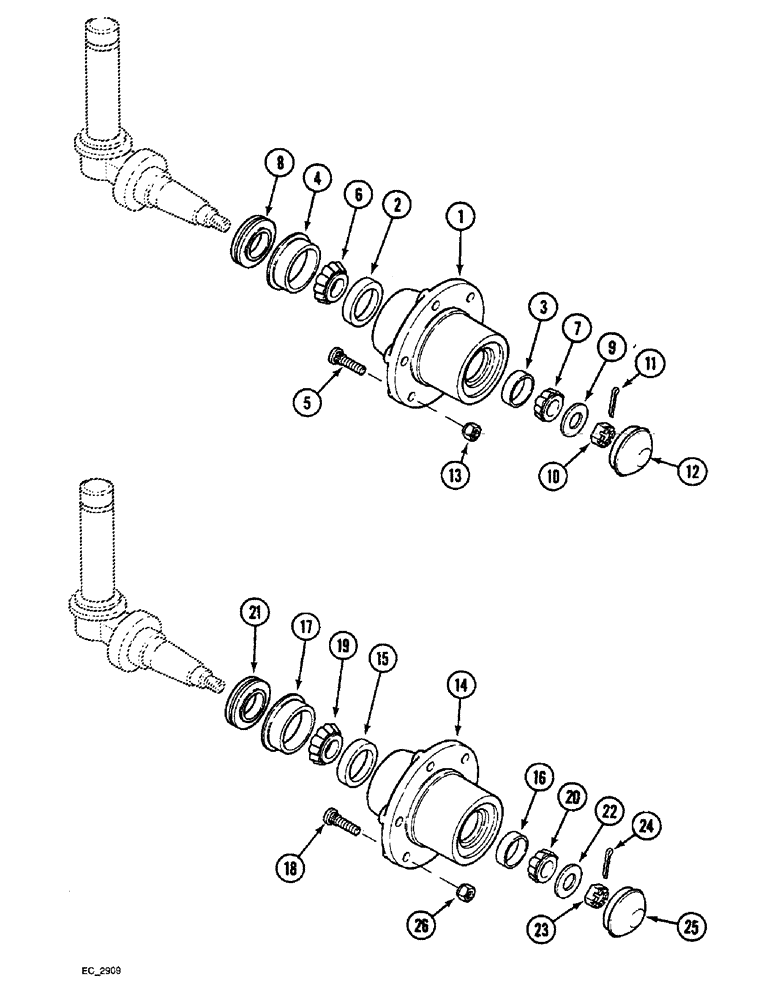

Запчасти Case IH 4240 (5-34) - WHEEL HUB, ADJUSTABLE FRONT AXLES, STRAIGHT FRONT AXLE, SWEPT BACK AXLE (05) - STEERING

1

67527C92

HUB

ASSEMBLY - front wheel, straight front axle, Includes: Ref. 2 - 5

2шт.

2

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - tapered roller bearing, inner, straight front axle

1шт.

3

536054R1

BEARING CUP,60mm OD x 11.94mm W

CUP - tapered roller bearing, outer, straight front axle

1шт.

4

67328C1

SEALING RING

RING - wear, straight front axle

1шт.

5

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

- wheel mounting, straight front axle

6шт.

6

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

BEARING - tapered roller, cone, inner, straight front axle

2шт.

7

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

CONE - bearing, outer, straight front axle

2шт.

8

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

- oil, dust, front wheel, straight front axle

2шт.

9

3118706R1

WASHER

- retaining, outer bearing, straight front axle

2шт.

10

1332751C1

SLOTTED NUT

- hex slotted, 3/4 inch NF, straight front axle

2шт.

11

32-1022

COTTER PIN,5/32" x 1 3/8"

PIN, SPLIT (COTTER), , Straight front axle 5/32" x 1 3/8"

2шт.

12

612884R1

HUB CAP

CAP - hub, front wheel, straight front axle

2шт.

13

453770R1

WHEEL NUT

- hex, 1/2 inch NF, straight front axle

12шт.

14

406294R21

HUB ASSY.

HUB ASSEMBLY - front wheel, swept back axle, Includes: Ref. 15 - 18

2шт.

15

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Tapered roller, Inner, Swept back axle

1шт.

16

371883R1

BEARING CUP

- Tapered roller, outer, swept back axle

1шт.

17

406295R2

RING

- wear, swept back axle

1шт.

18

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

- wheel mounting, swept back axle

6шт.

19

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - tapered roller, cone, inner, swept back axle

2шт.

20

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer, Swept back axle

2шт.

21

530104R91

SEAL

SEAL - dust, swept back axle

2шт.

22

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, special, hardened, swept back axle

2шт.

23

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex slotted, 3/4 inch NF, swept back axle

2шт.

24

32-1022

COTTER PIN,5/32" x 1 3/8"

PIN, SPLIT (COTTER), , Swept back axle 5/32" x 1 3/8"

2шт.

25

612884R1

HUB CAP

CAP - hub, front wheel, swept back axle

2шт.

26

453770R1

WHEEL NUT

- hex, 1/2 inch NF, swept back axle

12шт.
