Запчасти Case IH 4230 (6-068) - TRANSMISSION SHIFT CONTROL, EXTERNAL, TRACTOR WITH CAB (06) - POWER TRAIN

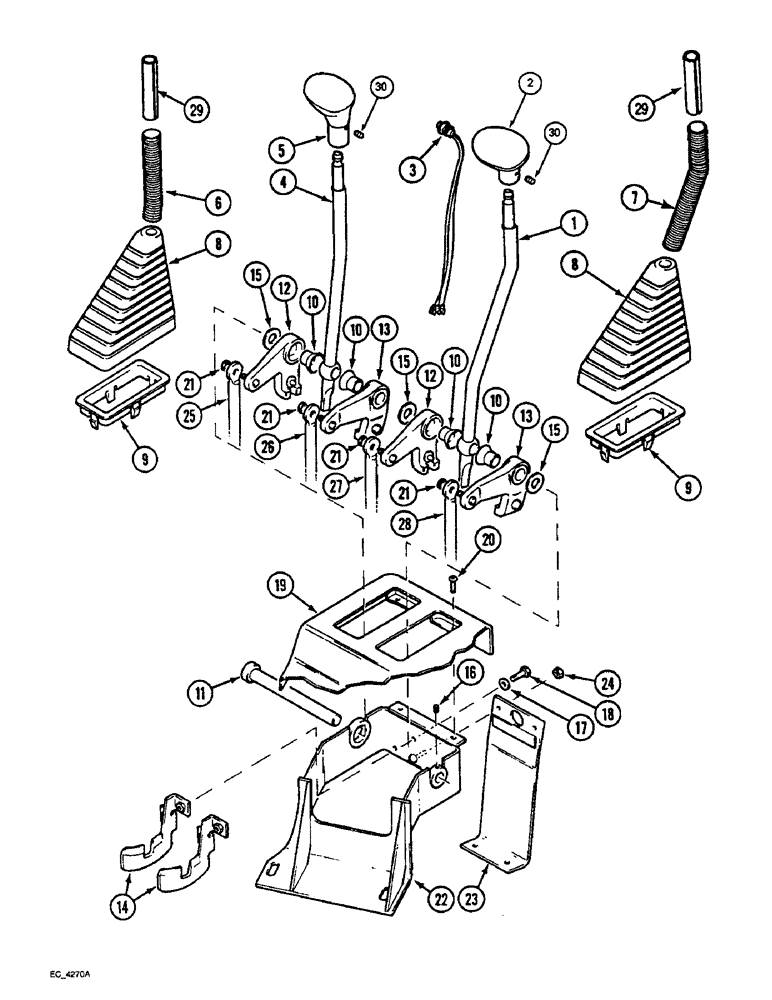

Схема запчастей Case IH 4230 - (6-068) - TRANSMISSION SHIFT CONTROL, EXTERNAL, TRACTOR WITH CAB (06) - POWER TRAIN
8
9
25
15
19
21
20
24
12
21
10
21
4
22
17
29
2
9
10
15
21
29
16
27
23
10
5
8
3
7
13
30
10
30
6
12
14
13
1
15
26
18
11
28

Артикул

Название

Примечание

Количество

1

138222A1

LEVER

- speed shift

1шт.

2

118558A2

BALL KNOB

KNOB - lever, (Without 2 speed power shift)

1шт.

2

118557A2

BALL KNOB

KNOB - lever, (With 2 speed power shift)

1шт.

3

127768A2

SWITCH

- 2 speed power shift

1шт.

4

139344A1

LEVER

- range shift

1шт.

5

118551A2

BALL KNOB

KNOB - lever, range (Without forward and reverse)

1шт.

5

118550A2

BALL KNOB

KNOB - lever, range (With forward and reverse)

1шт.

6

129421A2

LOOM

COVER - range lever

1шт.

7

129423A2

LOOM

COVER - speed lever

1шт.

8

153327AC1

INSULATOR - insulating

2шт.

9

1533264C1

FRAME

- retaining, bellows

2шт.

10

T101960

BUSHING,14mm ID x 17mm OD x 20mm L

- levers

4шт.

11

1533898C1

STUD,27mm OD x 160mm L

- lever

1шт.

12

1534650C1

ARM

- lever, left

2шт.

13

1999890C1

ARM ASSY.

ARM - lever, right

2шт.

14

131748A1

SUPPORT ASSY.

HOLDER - selector

2шт.

14

119799A2

SUPPORT

HOLDER - selector, (With forward and reverse)

2шт.

15

T102056

WASHER

- arm

1шт.

16

878-2068

SET SCREW,Hex Skt, M6 x 6mm, Cone Pt

SCREW - hex, socket head, 6 mm x 8 mm

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

18

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

19

114732A5

COVER

CONSOLE - side panel control

1шт.

20

540-704

SCREW,Cross Pan Hd, M6 x 16

- pan head, 6 x 16 mm

1шт.

21

T102202

CIRCLIP

RING - retaining, external

4шт.

22

119234A1

SUPPORT ASSY.

BRACKET - shift lever support

1шт.

23

122846A1

SUPPORT

BRACE - support

1шт.

24

832-46406

NUT,M6 x 1, Cl 8

Nut, Lock, M6 x 1, Cl 8

2шт.

25

REF

INSTRUCTION

ROD ASSEMBLY - hi range (See Figure 6-70)

1шт.

26

REF

INSTRUCTION

ROD ASSEMBLY - lo/rev range (See Figure 6-70)

1шт.

26

REF

INSTRUCTION

ROD ASSEMBLY - lo/hi range (With forward / reverse) (See Figure 6-70)

1шт.

27

REF

INSTRUCTION

ROD ASSEMBLY - control, 3/4 speed (See Figure 6-70)

1шт.

28

REF

INSTRUCTION

ROD ASSEMBLY - control, 1/2 speed (See Figure 6-70)

1шт.

29

141302A2

HOSE,13 mm ID x 25.00 mm

SLEEVE - speed (See Figure 6-70)

2шт.

30

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

SCREW - 5 mm x 8 mm

2шт.

Выбрано товаров: 34
