Запчасти Case IH 4230 (6-048) - REAR AXLE AND CARRIER (06) - POWER TRAIN

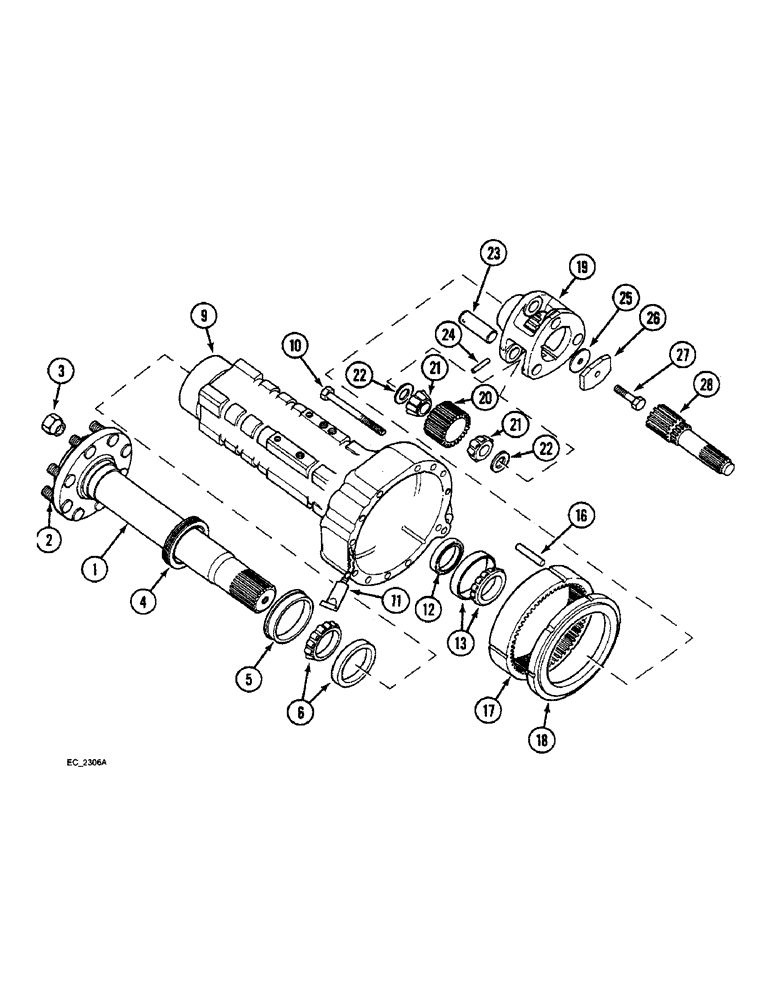

Схема запчастей Case IH 4230 - (6-048) - REAR AXLE AND CARRIER (06) - POWER TRAIN
3
20
21
21
28
19
4
16
12
27
23
9
1
13
6
2
22
10
17
18
5
26
25
24
22
11

Артикул

Название

Примечание

Количество

1

527353R11

AXLE, REAR

AXLE ASSEMBLY - rear (Bar type), Includes: Ref. 2

2шт.

1

404345R14

HALF SHAFT

AXLE ASSEMBLY - rear (Flange type), Includes: Ref. 2

2шт.

Diagram is of a flange type axle

1шт.

2

404341R4

STUD,5/8" - 18 x 55mm, Full Thd

BOLT - wheel stud, rear wheel mounting

8шт.

3

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, rear mounting

16шт.

4

105471C1

OIL SEAL

SEAL - oil, rear axle outer

2шт.

5

399796R1

SLEEVE

- wear

2шт.

6

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - roller, outer (Order ST2129 and ST988)

2шт.

9

117635A1

AXLE CARRIER

CARRIER - rear axle, left (Bar type axle)

1шт.

Used with BAR AXLE left hand.

1шт.

9

119688A1

AXLE CARRIER

CARRIER - rear axle, left (Flange type axle)

1шт.

Used with FLANGE AXLE left hand.

1шт.

9

117636A1

AXLE CARRIER

CARRIER - rear axle, right (Bar type axle)

1шт.

Used with BAR AXLE right hand.

1шт.

9

119689A1

AXLE CARRIER

CARRIER - rear axle, right (Flange type axle)

1шт.

Used with FLANGE AXLE right hand.

1шт.

10

326-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

22шт.

11

B17501

LOCTITE

SEALANT - gasket maker No. 515, 6 ml tube

1шт.

12

399798R91

OIL SEAL

SEAL - oil, rear axle inner

2шт.

13

972467R91

BEARING ASSY

ASSEMBLY - roller, inner (Order ST2175 and ST981)

2шт.

16

529686R1

DOWEL

PIN - dowel, 3/8 x 2-1/4 inch

6шт.

17

535317R1

GEAR, RING

GEAR - ring, 66 teeth

2шт.

18

114620C1

RING,260mm OD

- brake outer disc

2шт.

19

1110429C1

PINION CARRIER

CARRIER - planet gear

2шт.

20

66128C3

PINION

GEAR - planet, 25 teeth

6шт.

21

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING - tapered roller, 1-5/16 inch ID

12шт.

139256A1

SHIM KIT

KIT - service, planet gear shim, Includes: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.552 mm

3шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.622 mm

3шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.762 mm

3шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.832 mm

3шт.

23

399812R1

SHAFT

PIN - planet shaft

6шт.

24

38-32018

PIN,5/16" x 1 1/8", Coiled

6шт.

65422C1

SHIM KIT

KIT - service, rear axle retainer shims, Includes: Ref. 25

1шт.

25

399749R1

SHIM,17mm ID x 55.9mm OD x 0.18mm Thk

- axle retainer, 0.007 inch

1шт.

25

399750R1

SHIM,17mm ID x 55.9mm OD x 0.31mm Thk

- axle retainer, 0.049 inch

1шт.

25

399751R1

SHIM,17mm ID x 55.9mm OD x 0.76mm Thk

- axle retainer, 0.0299 inch

1шт.

26

399748R1

SPACER

- planet carrier

2шт.

27

25331R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

- hex, 5/8 NF x 1-1/2 inch, grade 8

2шт.

28

404343R1

SHAFT

- planetary drive, right hand

1шт.

28

404342R1

SHAFT

- planetary drive, left hand

1шт.

Выбрано товаров: 41
