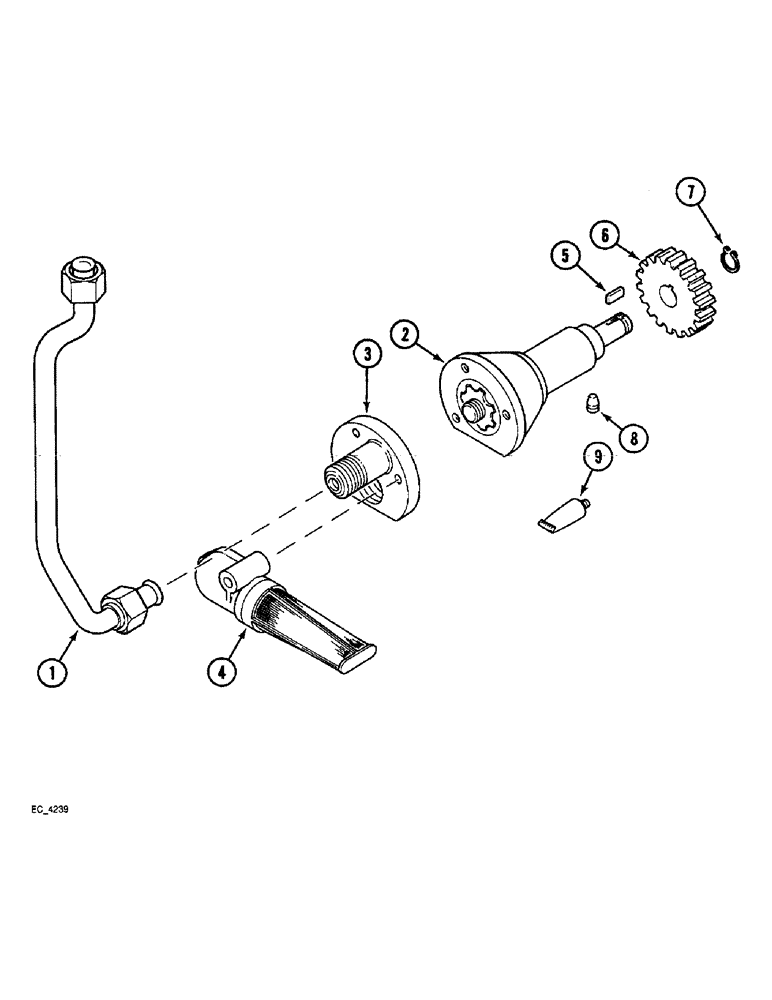

Запчасти Case IH 4230 (6-032) - REAR FRAME, TRANSFER OIL PUMP (06) - POWER TRAIN

1

115570A3

PIPE

- transfer pump outlet

1шт.

2

116636A2

PUMP, HYDRAULIC,10.39 CC

PUMP ASSEMBLY - oil transfer, Includes: Ref. 3 and 4

1шт.

3

3123727R1

PLATE

- end

1шт.

4

197581A1

STRAINER ELEMENT

STRAINER - pump

1шт.

5

529100R1

BUCKET TOOTH KEY

KEY - transfer pump driven gear

1шт.

6

528095R1

PINION

GEAR - transfer pump driven, 21 teeth

1шт.

7

3042123R1

RING, SNAP

RING - retaining, driven gear

1шт.

8

83-2318

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - hex, socket head 5/16 x 1/2 In

2шт.

9

345-188

GLUE

ADHESIVE - 2 ounce tube, No. 847

1шт.
