Запчасти Case IH 4230 (6-028) - REAR FRAME (06) - POWER TRAIN

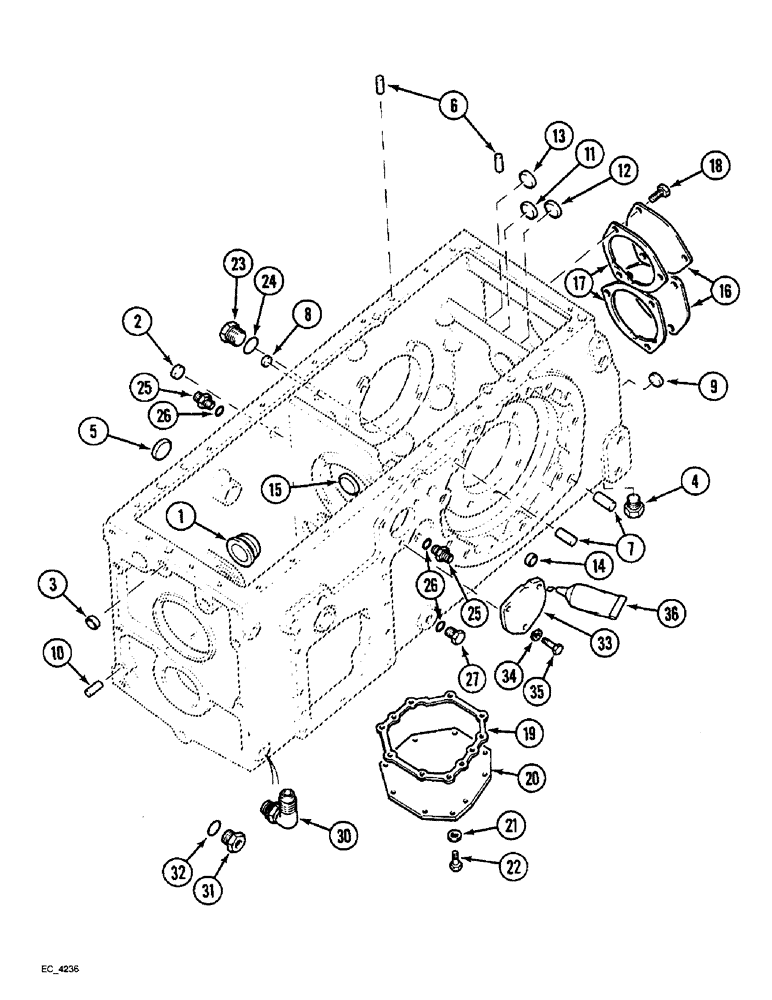

Схема запчастей Case IH 4230 - (6-028) - REAR FRAME (06) - POWER TRAIN
10
16
13
14
30
19
17
26
24
22
9
25
34
25
3
2
5
6
18
15
27
20
8
36
7
11
35
26
4
12
31
33
23
32
21
1

Артикул

Название

Примечание

Количество

116633A1

HOUSING

FRAME ASSEMBLY - rear, Includes: Ref. 1 - 15, Serial Range: -JJE0908036

1шт.

194201A2

HOUSING

FRAME ASSEMBLY - rear, Includes: Ref. 1 - 15, Start Serial: JJE0908037

1шт.

1

527748R2

PLUG

- oil reservoir

1шт.

2

930342R1

PLUG,M16, Conical

- cup (With forward and reverse)

1шт.

3

41-1013

PLUG,Cup, 13/16"

- cup, 13/16 inch

1шт.

4

217-424

PLUG,Hex Hd, 3/4" - 14 NPT

1шт.

5

41-1620

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch diameter

1шт.

6

37-1816

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch, hardened

2шт.

7

37-11024

DOWEL,5/8" x 1 1/2"

PIN - dowel, 5/8 x 1-1/2 inch

4шт.

8

41-1612

PLUG,Cup, 3/4", Stainless

Without Differential Lock Cup, 3/4", Stainless

1шт.

9

41-1036

PLUG,Cup, 2 1/4"

- core hole, 2-1/4", cup

1шт.

10

37-1820

DOWEL,1/2" x 1 1/4"

PIN - dowel, 1/2 x 1-1/4 inch, hardened

1шт.

11

41-1040

PLUG,Cup, 2 1/2"

- cup, 2-1/2 inch (Without IPTO)

1шт.

12

41-1622

PLUG,Cup, 1 3/8", Stainless

- cup, 1-3/8 inch (Without IPTO)

1шт.

13

3142063R1

PLUG

- cup, 52 mm (Without IPTO)

1шт.

14

41-1622

PLUG,Cup, 1 3/8", Stainless

- cup, 1-3/8 inch

1шт.

15

41-1034

PLUG,Cup, 2 1/8"

- cup, 2-1/8 inch

1шт.

16

399842R1

COVER

- rear frame (Without IPTO)

2шт.

17

1970891C1

GASKET

- rear frame IPTO flange

2шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

19

1970896C1

GASKET

- transfer gear box

1шт.

20

94293C1

COVER

- MFD drop box opening

1шт.

21

396-21053

WASHER,17/32" x 1 1/16" x .134"

9шт.

22

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

9шт.

23

273916

PLUG,Hex, 1-5/16" - 12 ORB

(Auxiliary hydraulic tube) Hex Hd, 1 5/16"-12 ORB

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

25

3129671R1

FITTING

ADAPTER - brake pipe

2шт.

26

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

3шт.

27

9672438

PLUG,7/16" - 20 ORB

(Without IPTO) Hex Hd, 7/16"-20 ORB

1шт.

30

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x Adj O-Ring boss

1шт.

33

119248A1

SUPPORT

COVER - pivot hole (2 wheel drive)

1шт.

33

116599A2

COVER

- pivot hole (MFD)

1шт.

34

492-11038

LOCK WASHER,3/8"

2шт.

35

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

36

B17501

LOCTITE

SEALANT - gasket maker No. 515, 6 ml tube

2шт.

Выбрано товаров: 35
