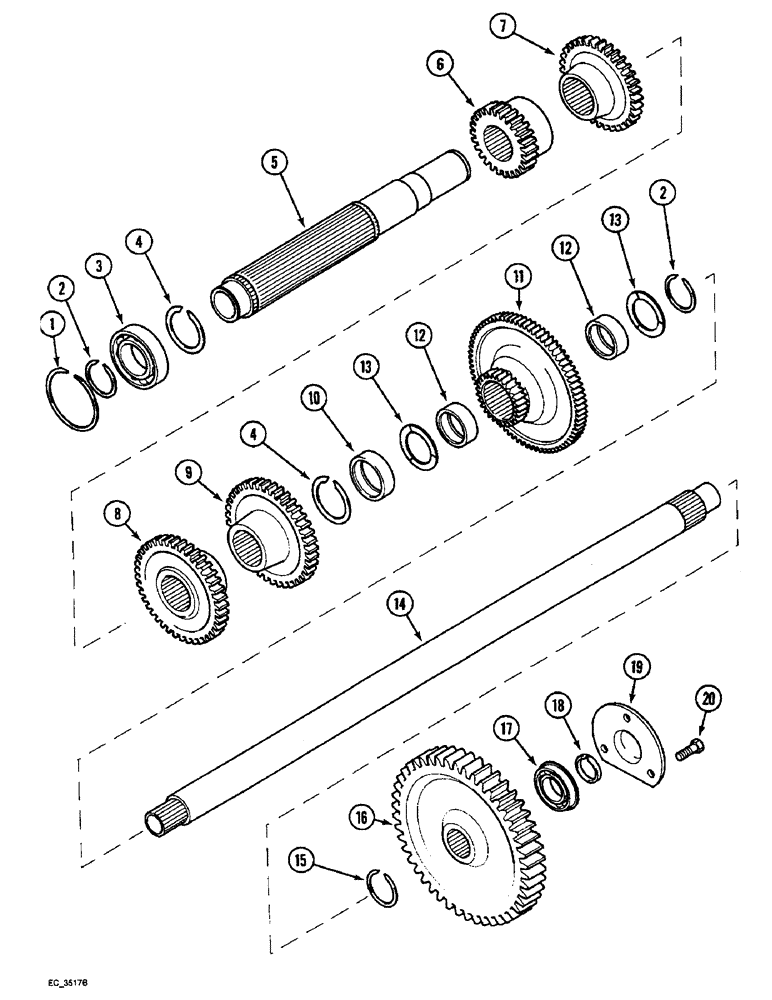

Запчасти Case IH 4230 (6-018) - SPEED TRANSMISSION COUNTERSHAFT, WITH CREEPER (06) - POWER TRAIN

1

574964R1

RING, SNAP

RING - snap

1шт.

2

101-11177

SNAP RING,#177, 1.657", Ext

RING - snap, 1.657 inch

2шт.

3

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING - ball

1шт.

4

101-11215

SNAP RING,#215, 2.026", Ext

RING, SNAP, , Retaining #215, 2.026", Ext

2шт.

5

1343152C1

SHAFT

- counter

1шт.

6

404093R1

GEAR

- 1st speed drive, 26 teeth

1шт.

7

404092R1

PINION

GEAR - 2nd speed drive, 34 teeth

1шт.

8

404091R1

PINION

GEAR - 4th speed drive, 43 teeth

1шт.

9

404090R1

PINION

GEAR - constant mesh driven, 39 teeth

1шт.

10

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING - needle

1шт.

11

1342933C1

PINION

GEAR ASSEMBLY - idler, 28/75 teeth, Includes: Ref. 12

1шт.

12

1343157C1

BEARING, NEEDLE

BEARING - needle

2шт.

13

1343156C2

THRUST WASHER,44.63mm ID x 63mm OD x 2.38mm Thk

- thrust

2шт.

14

135986A2

SHAFT

- IPTO driven, front

1шт.

15

101-11118

SNAP RING,#118, 1.121", Ext

RING - retaining, external, 1.121 inch

1шт.

16

113332A1

PINION

GEAR - IPTO driven, 46 teeth

1шт.

17

135990A1

BEARING, BALL,19.99mm ID x 71.99mm OD x 18.94mm W

BEARING - roller, IPTO driven shaft front

1шт.

18

800-1120

SNAP RING,M20, Ext

Retaining, IPTO shaft front bearing M20, Ext

1шт.

19

143944A1

FLANGE

RETAINER - IPTO driven shaft front bearing cap

1шт.

20

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.
