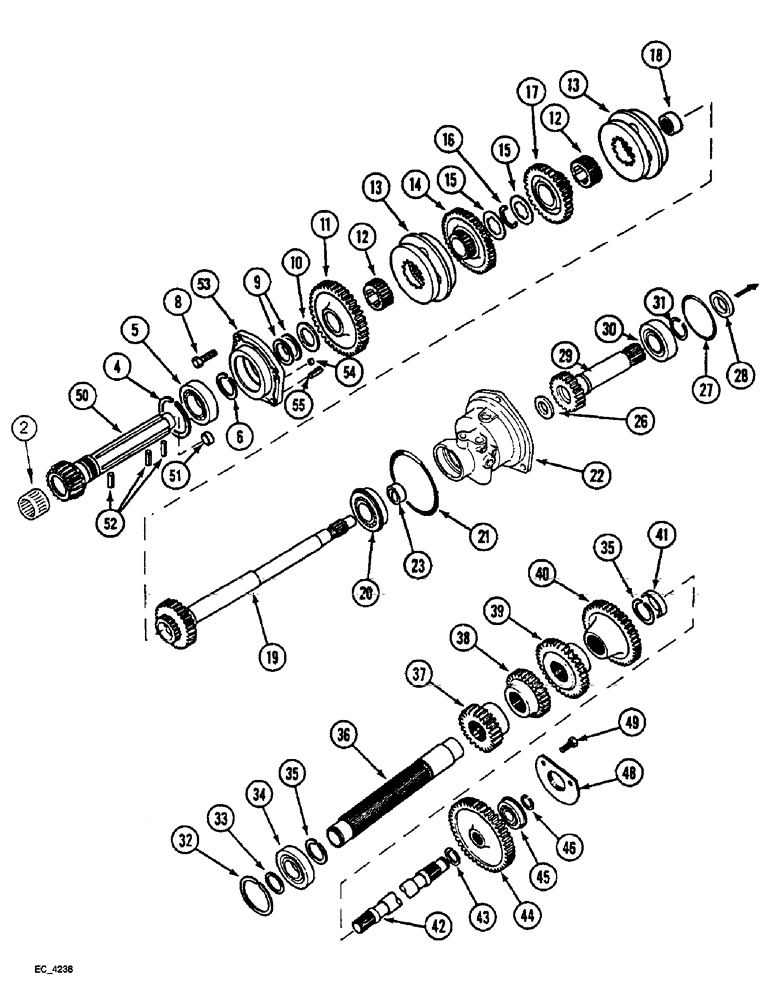

Запчасти Case IH 4230 (6-010) - SPEED TRANSMISSION, WITHOUT CREEPER (06) - POWER TRAIN

2

116589A1

BEARING, NEEDLE,37.3mm ID x 50.01mm OD x 28.5mm W

BEARING - needle, forward end of bevel shaft

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING - internal snap

1шт.

5

ST278

BEARING, BALL,49.99mm ID x 90mm OD x 20mm W

BEARING - ball

1шт.

6

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, retaining

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

9

116597A1

SEAL

RING - sealing, main shaft lubrication line

2шт.

10

186787A1

THRUST WASHER

WASHER - thrust, 6.89/6.83

1шт.

10

186788A1

THRUST WASHER

WASHER - thrust, 7.02/6.96

1шт.

10

398332R2

THRUST WASHER

WASHER - thrust, 7.14/7.08

1шт.

10

186789A1

THRUST WASHER

WASHER - thrust, 7.27/7.21

1шт.

10

183881A1

THRUST WASHER

WASHER - thrust, 7.04/7.34

1шт.

10

186790A1

THRUST WASHER

WASHER - thrust, 7.53/7.47

1шт.

10

183664A1

THRUST WASHER

WASHER - thrust, 7.65/7.59

1шт.

10

186791A1

THRUST WASHER

WASHER - thrust, 7.78/7.72

1шт.

10

183882A1

THRUST WASHER

WASHER - thrust, 7.91/7.85

1шт.

10

186792A1

THRUST WASHER

WASHER - thrust, 8.03/7.79

1шт.

10

183883A1

THRUST WASHER

WASHER - thrust, 8.16/8.10

1шт.

10

244369A1

THRUST WASHER

WASHER - thrust, 6.63/6.57

1шт.

10

244368A1

THRUST WASHER

WASHER - thrust, 6.76/6.70

1шт.

11

398331R3

PINION

GEAR - 1st speed driven, 41 teeth

1шт.

12

398325R1

HUB

- speed shift, 25.15

2шт.

12

183665A1

HUB

- speed shift, 24.64

2шт.

12

183877A1

HUB

- speed shift, 24.13

2шт.

12

183884A1

HUB

- speed shift, 23.63

2шт.

12

244365A1

HUB

- speed shift, 25.66

2шт.

13

65793C4

SYNCHRONIZER

- with cups

2шт.

14

398330R4

PINION

GEAR - 2nd speed driven, 33 teeth

2шт.

15

398328R3

THRUST WASHER

WASHER - thrust, 1.78/1.74

2шт.

15

186793A1

THRUST WASHER

WASHER - thrust, 1.90/1.86

2шт.

15

183878A1

THRUST WASHER

WASHER - thrust, 2.03/1.99

2шт.

15

186794A1

THRUST WASHER

WASHER - thrust, 2.16/2.12

2шт.

15

182854A1

THRUST WASHER

WASHER - thrust, 2.28/2.24

2шт.

15

186795A1

THRUST WASHER

WASHER - thrust, 2.41/2.37

2шт.

15

183879A1

THRUST WASHER

WASHER - thrust, 2.54/2.50

2шт.

15

186796A1

THRUST WASHER

WASHER - thrust, 2.66/2.62

2шт.

15

183880A1

THRUST WASHER

WASHER - thrust, 2.79/2.75

2шт.

15

244366A1

THRUST WASHER

WASHER - thrust, 1.65/1.61

2шт.

15

244367A1

THRUST WASHER

WASHER - thrust, 1.53/1.49

2шт.

16

398329R1

CIRCLIP

RING - snap, synchronizer locating

1шт.

17

398327R4

PINION

GEAR - 4th speed driven, 24 teeth

1шт.

18

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING - needle (See note)

1шт.

19

92717C1

SHAFT

ASSEMBLY - clutch (See note)

1шт.

20

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING - ball, clutch shaft

1шт.

21

238-6252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

22

115204A3

BALL RACE

CAGE ASSEMBLY - IPTO and clutch cup retainer (See note), Includes: Ref. 23

1шт.

23

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

- clutch shaft

1шт.

26

114321A1

OIL SEAL

- oil, IPTO drive shaft

1шт.

27

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

28

108982C1

OIL SEAL

SEAL - oil, release sleeve

1шт.

29

113331A3

SHAFT

- drive, IPTO, 540/1000 rpm, 21 teeth, 10 Spline

1шт.

30

ST342

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING - roller, IPTO drive shaft (Standard) (4210)

1шт.

30

127687A1

BALL BEARING,44.99mm ID x 85mm OD x 19mm W

BEARING - roller, IPTO drive shaft (Heavy duty)

1шт.

31

101-11177

SNAP RING,#177, 1.657", Ext

RING - snap, 1.657 inch

1шт.

32

574964R1

RING, SNAP

RING - snap, countershaft bearing, inner

1шт.

33

101-11177

SNAP RING,#177, 1.657", Ext

RING - snap, 1.657 inch

1шт.

34

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING - ball, countershaft

1шт.

35

101-11215

SNAP RING,#215, 2.026", Ext

RING, SNAP, , Retaining #215, 2.026", Ext

2шт.

36

404089R2

SHAFT

- counter, speed transmission (See note)

1шт.

37

404093R1

GEAR

- 1st speed drive, 26 teeth

1шт.

38

404092R1

PINION

GEAR - 2nd speed drive, 34 teeth

1шт.

39

404091R1

PINION

GEAR - 4th speed drive, 43 teeth

1шт.

40

404090R1

PINION

GEAR - constant mesh driven, 39 teeth

1шт.

41

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING - needle, countershaft

1шт.

42

99439C1

SHAFT

- IPTO driven (Standard) (4210)

1шт.

42

135986A2

SHAFT

- IPTO driven, front (Heavy duty)

1шт.

43

101-11118

SNAP RING,#118, 1.121", Ext

RING - retaining, external, 1.121 inch

1шт.

44

1342559C2

GEAR

- IPTO driven, 46 teeth, 1000 rpm

1шт.

45

127688A1

BEARING, BALL,24.99mm ID x 62mm OD x 17mm W

BEARING - roller, IPTO driven shaft front (Standard) (4210)

1шт.

45

135990A1

BEARING, BALL,19.99mm ID x 71.99mm OD x 18.94mm W

BEARING - roller, IPTO driven shaft front (Heavy duty)

1шт.

46

A32438

SNAP RING

RING - snap, retaining, IPTO shaft front bearing (Standard) (4210)

1шт.

46

800-1120

SNAP RING,M20, Ext

Retaining, IPTO shaft front bearing (Heavy duty) M20, Ext

1шт.

48

143944A1

FLANGE

RETAINER - IPTO driven shaft front bearing cap

1шт.

49

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Front bearing (Standard) (4210) Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

50

115584A2

SHAFT

- main

1шт.

50

115585A2

SHAFT

- main (With 2 speed power shift)1, Includes: Ref. 51 and 52

1шт.

51

115583A1

PLUG

- cup, 5/8 inch

1шт.

52

38-1805

LOCK PIN,1/8" x 5/16", Slotted

PIN - slotted, 3/32 x 5/16 inch

3шт.

NSS

NOT SOLD SEPARAT

CARRIER ASSEMBLY - main shaft (Order components), Includes: Ref. 53 - 55

1шт.

53

116587A2

BALL RACE

CARRIER - main shaft

1шт.

54

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch Dia.

1шт.

55

38-1605

LOCK PIN,2.36mm OD x 7.92mm L, Slotted

Pin, 3/32" x 5/16", Slotted

3шт.
