Запчасти Case IH 4230 (6-006) - CLUTCH HOUSING TOP COVER, TRACTOR WITHOUT CAB (06) - POWER TRAIN

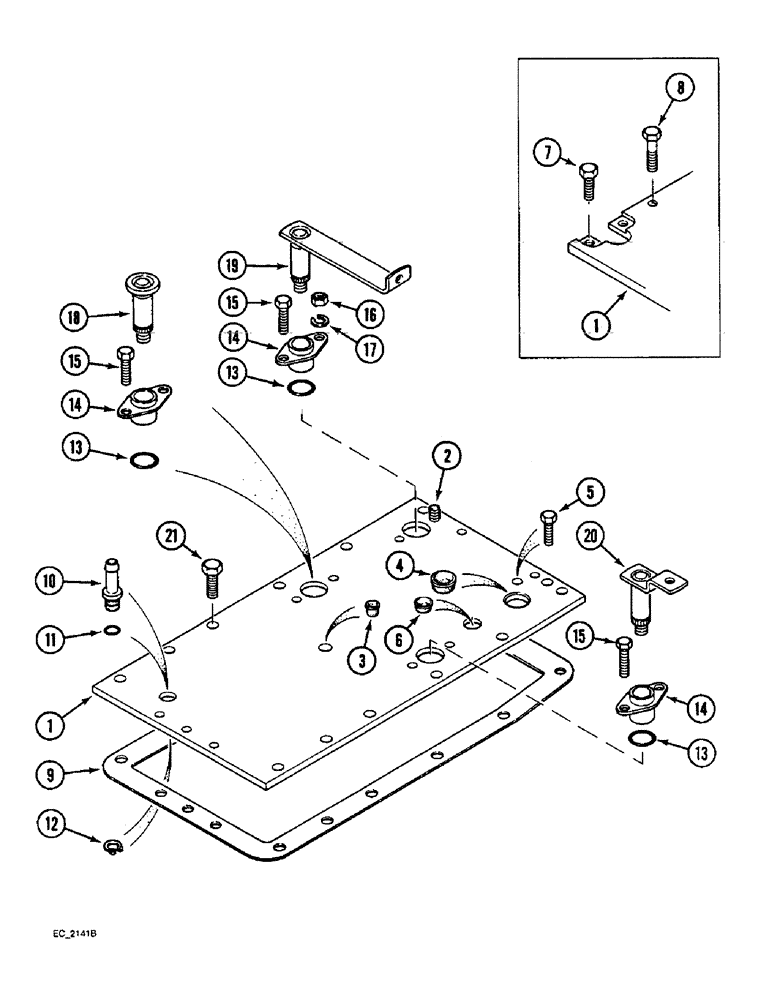

Схема запчастей Case IH 4230 - (6-006) - CLUTCH HOUSING TOP COVER, TRACTOR WITHOUT CAB (06) - POWER TRAIN
9
6
13
1
5
17
18
14
19
15
10
21
7
20
16
1
3
13
15
14
8
14
15
12
2
11
4
13

Артикул

Название

Примечание

Количество

127429A1

COVER ASSY

COVER ASSEMBLY - (With 2 speed power shift or standard transmission) (Order components), Includes: Ref. 1 - 6

1шт.

127431A1

COVER ASSY

COVER ASSEMBLY - (With forward and reverse) (Order components), Includes: Ref. 1 - 6

1шт.

127432A1

COVER ASSY

COVER ASSEMBLY - (With creeper) (Order components), Includes: Ref. 1 - 6

1шт.

1

1288495C1

COVER

- (With 2 speed power shift or standard transmission)

1шт.

1

99496C1

COVER

- (With forward and reverse)

1шт.

1

1343282C1

COVER

- (With creeper)

1шт.

2

3129159R1

STUD

- top cover

1шт.

3

41-108

PLUG,Cup, 1/2"

- cup, 1/2 inch diameter

1шт.

4

41-1620

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch diameter

2шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

6

41-1620

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch diameter

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

9

1970894C1

GASKET

- clutch housing top cover (Without creeper)

1шт.

9

1970895C1

GASKET

- clutch housing top cover (With creeper)

1шт.

10

3129200R1

ADAPTER

ADAPTOR - brake return hose

1шт.

11

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

12

100-1168

SNAP RING,#68, Ext

Ring, Snap, #68, Ext

1шт.

13

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

3шт.

14

3129165R2

HOUSING

- speed shift arm

3шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

5шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

1277030C1

PIVOT ASSY.

PIVOT - interlock

1шт.

19

3129166R1

ARM ASSY.

ARM ASSEMBLY - speed shift actuating, 1st/2nd (See Figure 6-58, 64)

1шт.

20

3129172R2

ARM ASSY.

ARM ASSEMBLY - speed shift actuating, 3rd/4th (See Figure 6-58, 64)

1шт.

21

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

Выбрано товаров: 27
