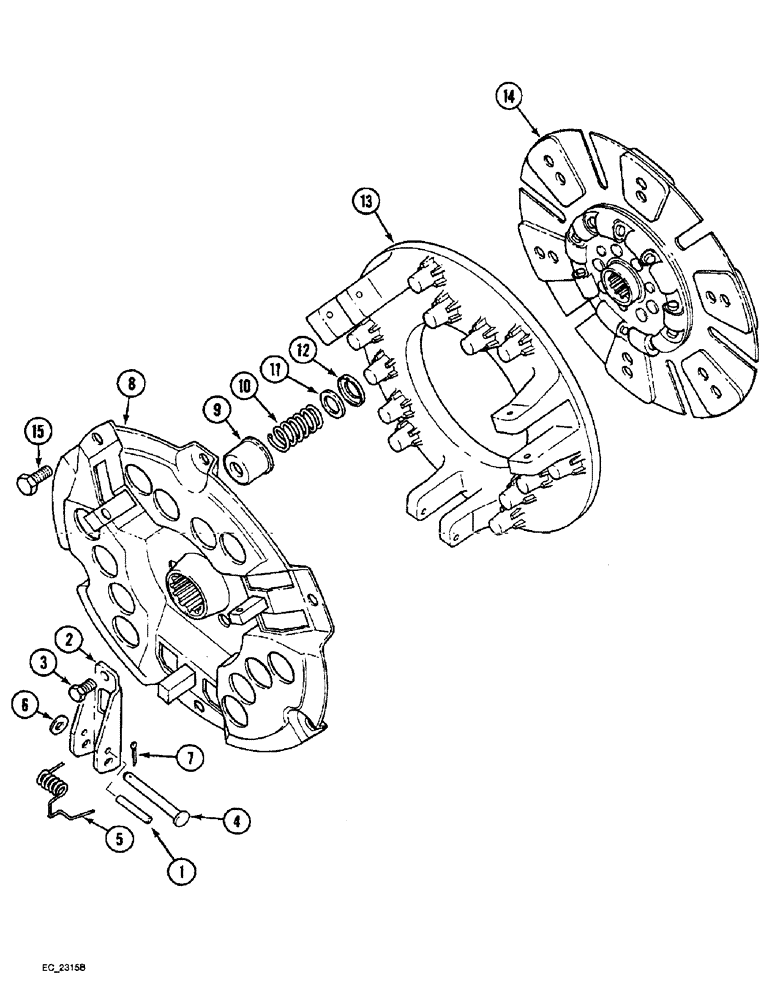

Запчасти Case IH 4230 (6-002) - CLUTCH, ROCKFORD 12 INCH (06) - POWER TRAIN

1944257C1

COVER ASSY

PLATE ASSEMBLY - clutch pressure, remanufactured

1шт.

1944258C1

CORE-CLUTCH PLATE

RETURN NUMBER - (Use this part number to return core for credit)

1шт.

85025C2

CLUTCH ASSEMBLY

PLATE ASSEMBLY - clutch pressure, Includes: Ref. 1 - 13

1шт.

85025C2R

REMAN-CLUTCH PLATE

Reman for New PN 85025C2

1шт.

85025C2C

CORE-CLUTCH PLATE

Return Number

1шт.

84342556R

REMAN-CLUTCH PLATE

4210, 4230, 4240, ALL (1/94-12/98), Reman For New PN 85025C2

1шт.

84342556C

CORE-CLUTCH PLATE

Return Number

1шт.

1

140296A1

PIVOT PIN

PIN - pivot lever

3шт.

85120C92

KIT

KIT - lever assembly, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER - release (Order kit 85120C92)

3шт.

3

129219A1

ADJUSTMENT SCREW,Hex, 3/8" - 24 x 1/2", Gr 8

SCREW - adjusting

3шт.

4

149487R1

PIN

- lever pivot

3шт.

5

375572R1

SPRING

- lever tension

3шт.

6

95-11034

WASHER,1/4"

- flat, 11/32 x 11/16 x 1/16 inch

3шт.

7

32-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

3шт.

8

85148C1

PLATE

ASSEMBLY - back

1шт.

9

353316R1

SPRING CUP

CUP - spring

12шт.

10

349934C1

SPRING

- pressure plate

12шт.

11

311291C1

INSULATING WASHER

- insulating

12шт.

12

311292C1

WASHER

- retainer

12шт.

13

373614R1

CLUTCH, PRESSURE PLA,304.09mm OD

PLATE - clutch

1шт.

14

85026C3

CLUTCH DISC,305mm OD

PLATE ASSEMBLY - clutch driven disc

1шт.

14

1944259C1

DRIVEN PLATE

PLATE ASSEMBLY - clutch driven disc, remanufactured

1шт.

14

1944260C1

CORE-CLUTCH PLATE

RETURN NUMBER - (Use this part number to return core for credit)

1шт.

15

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.
