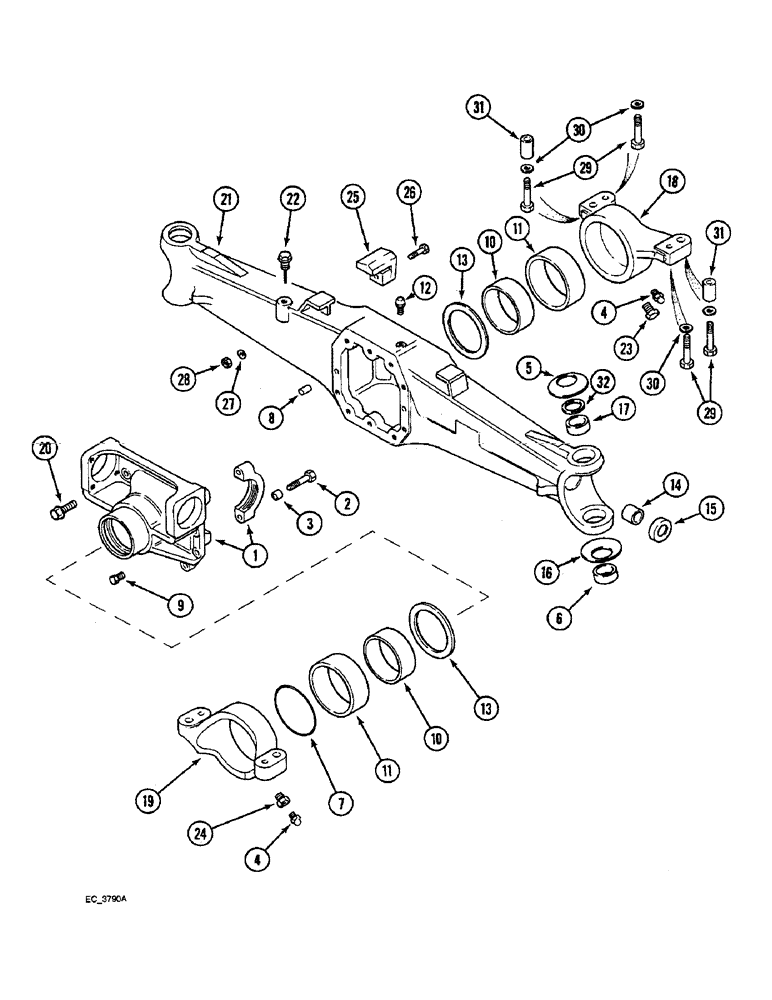

Запчасти Case IH 4230 (5-38) - MECHANICAL FRONT DRIVE, AXLE HOUSING (05) - STEERING

1985085C2

4WD AXLE ASSY

AXLE ASSEMBLY - front, 9/32 gear set, Includes: Ref. 1 - 24

1шт.

193521A1

4WD AXLE ASSY

AXLE ASSEMBLY - front, 10/32 gear set, Includes: Ref. 1 - 24

1шт.

1

100521A1

SUPPORT

CARRIER - differential

1шт.

2

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT, , Special Hex Flg, M14 x 75, 12.9

4шт.

3

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

- centering

4шт.

4

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

2шт.

5

122270A1

BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th

- Belleville

22шт.

6

100520A1

SPHERICAL BEARING,25mm ID x 47mm OD x 15mm W

- spherical

2шт.

7

K965267

O-RING,0.07" Thk x 4.489" ID

RING - sealing

1шт.

8

1966138C1

DOWEL

PIN - dowel

2шт.

9

110782A1

PLUG, DRAIN,M24 x 1.5

PLUG - 24 mm

1шт.

10

K965266

BUSHING

SLEEVE - bushing

2шт.

11

K965265

BUSHING

- steel

2шт.

12

1966149C1

BREATHER

- axle housing

1шт.

13

K395022

WASHER

- thrust, front

2шт.

14

1966186C1

BUSHING

2шт.

15

1966191C1

OIL SEAL

- oil

2шт.

16

122268A1

BELLEVILLE WASHER

- Belleville

22шт.

17

100522A1

BUSHING

2шт.

18

1537607C1

SUPPORT

- front

1шт.

19

1537608C1

SUPPORT

- rear

1шт.

20

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT - hex flange, 12 x 33 mm, class 12.9, Use with 1985085C2

10шт.

20

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, 12 x 35 mm, grade 10.9 (Use with 193521A1)

10шт.

21

137045A1

HOUSING

- axle, beam

1шт.

22

1537610C1

DIPSTICK

PLUG - drain

1шт.

23

1537654C1

BOLT

BOLT

1шт.

24

1537655C1

BOLT

BOLT

1шт.

25

1537537C1

STOP

2шт.

26

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

27

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

2шт.

28

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, M12 x 1.75, Cl 8

2шт.

29

626-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9, Full Thd

8шт.

30

1538003C1

WASHER

- hardened, 17.5 x 32 x 6 mm

8шт.

31

838-42136

LOCK PIN,M21 x 36, Slotted

PIN - slotted spring, 21 x 36 mm

4шт.

32

136990A1

WASHER

WASHER - spacer

2шт.
