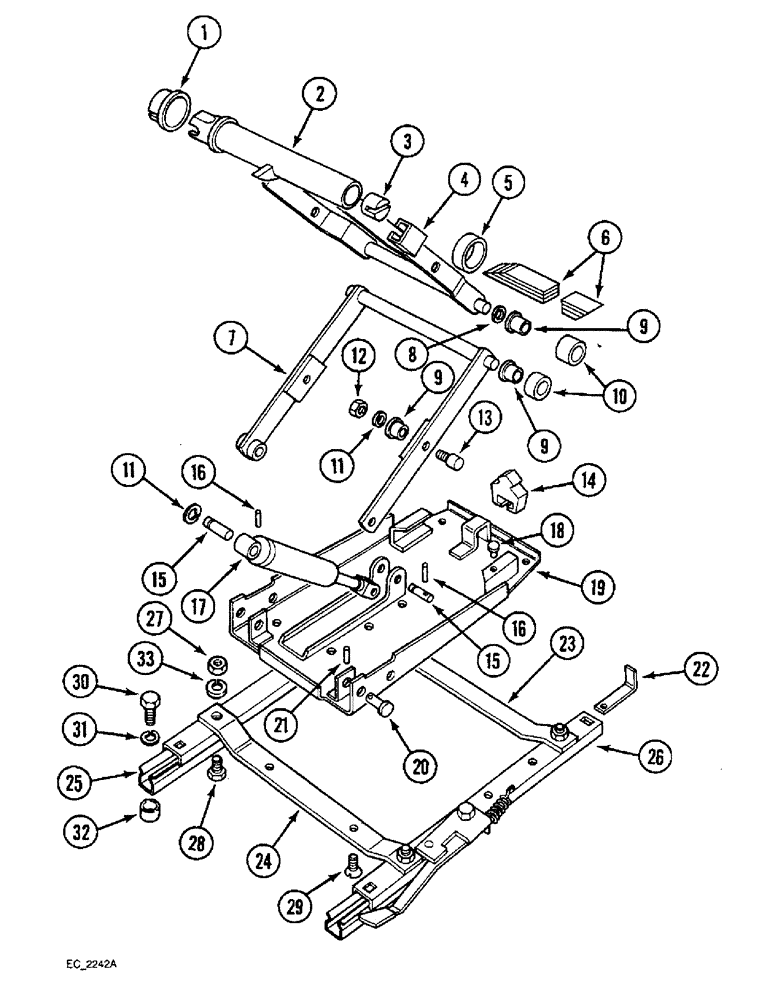

Запчасти Case IH 4230 (9-082) - SUSPENSION SEAT, TRACTOR WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1536395C1

SEAT

ASSEMBLY - PVC covered, 2 inch seat belt, Includes: Ref. 1 - 33

1шт.

NSS

NOT SOLD SEPARAT

SEAT ASSEMBLY - deluxe suspension (PVC) (Order 1536395C1), Includes: Ref. 1 - 33

1шт.

1

3123316R1

BUSHING

BEARING - center lever

1шт.

2

3123315R1

LEVER

- center

1шт.

3

3220529R1

RETAINER

- center lever

1шт.

4

3220519R1

STOP

- limit

2шт.

5

3109331R1

FLANGED BEARING

BEARING - flange

1шт.

6

3129922R1

BAR

- torsion (Set of 5)

1шт.

7

3220517R1

ARM

LEVER - outer

1шт.

8

538565R1

WASHER

- suspension scissors

4шт.

9

3123319R1

BUSHING

BEARING - suspension scissors

4шт.

10

3123320R1

ROLLER BEARING

- suspension scissors

4шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

12

829-1304

NUT,M4, Cl 8

- hex, 4 mm - 0.70 class 10

2шт.

13

3123321R1

PIVOT PIN

PIN - pivot

2шт.

14

3220516R1

STOP

BUMPER - rubber

1шт.

15

538578R1

PIN

- damper

2шт.

16

538579R1

PIN, ROLL

PIN - roll

2шт.

17

3123329R1

SHOCK ABSORBER

DAMPER - complete

1шт.

18

3123308R1

BUMPER

BUTTON - bumper

2шт.

19

3220524R1

PLATE

- base

1шт.

20

3123318R1

PIVOT PIN

PIN - pivot

2шт.

21

3125165R1

PIN, ROLL

PIN - roll, 3 mm

2шт.

22

3123376R1

BRACKET

- stop

1шт.

23

3123306R1

BRACKET

STRAP - mounting, rear

1шт.

24

3123305R1

BRACKET

STRAP - mounting, front

1шт.

25

3123304R1

RAIL

- slide, right (Free)

1шт.

26

3123303R1

RAIL

- slide, left (Adjustable)

1шт.

27

825-1408

NUT,M8, Cl 8

4шт.

28

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, 8 - 1.25 x 16 mm, class 10.9

2шт.

29

931860R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 8.8

- countersunk, 8 x 20 mm

4шт.

30

71-524

SCREW,Slotted Fil Hd, 5/16"-18 x 1 1/2"

- Fillister head slotted, 5/16 NC x 1-1/2 inch

4шт.

31

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

32

3123562R1

SPACER

- seat

4шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

not illustrated 1/8" x 1 1/4", Coiled

2шт.
