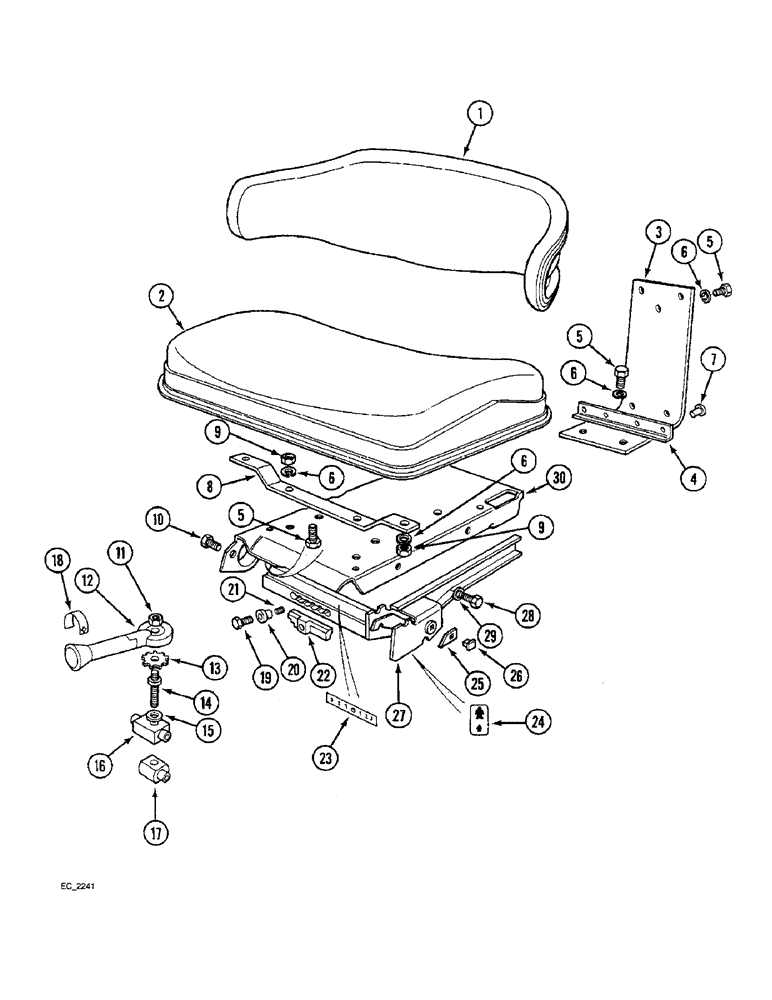

Запчасти Case IH 4230 (9-080) - SUSPENSION SEAT, TRACTOR WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1536395C1

SEAT

ASSEMBLY - PVC covered, 2 inch seat belt, Includes: Ref. 1 - 30

1шт.

537339R1

SAFETY BELT

SAFETY BELT, 2" (See Figure 9-90)

1шт.

NSS

NOT SOLD SEPARAT

SEAT - deluxe suspension (PVC) (Order 1536395C1), Includes: Ref. 1 - 30

1шт.

1

3123336R2

BACKREST

CUSHION ASSEMBLY - back (PVC)

1шт.

2

3123332R2

CUSHION, SEAT

CUSHION ASSEMBLY - seat (PVC)

1шт.

3

3123331R2

SUPPORT

- seat back

1шт.

4

3125164R1

BRACKET

- seat

1шт.

5

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, 8 - 1.25 x 16 mm, class 10.9

9шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

11шт.

7

3125163R1

RIVET

- pop

4шт.

8

3123334R1

SUPPORT

BRACKET - seat tilt

1шт.

9

829-1304

NUT,M4, Cl 8

- hex, 4 mm - 0.70 class 10

4шт.

10

3123312R1

SCREW

- taptite, 8 mm - 1.25 x 16 mm

1шт.

11

3123326R1

NUT

- clamp

1шт.

12

3123327R1

HANDLE

- complete, weight adjusting

1шт.

13

538570R1

GEAR

- weight adjusting

1шт.

14

3123325R1

BOLT

- adjuster

1шт.

15

3123322R1

THRUST WASHER

WASHER - thrust

1шт.

16

3123323R1

TRUNNION

- adjuster (Large)

1шт.

17

3123324R1

TRUNNION

- adjuster (Small)

1шт.

18

3220518R1

PRODUCT GRAPHIC

DECAL - (+/-)

1шт.

19

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

20

3123309R1

BUTTON

KNOB - pull (Order 1536441C1)

1шт.

21

3220537R1

SPRING

- slider

1шт.

22

3123307R1

SLIDE

- seat adjusting

1шт.

23

3220526R1

DECAL

- indicator

1шт.

24

3123311R1

DECAL

- descriptive

1шт.

25

3220525R1

INDICATOR

- adjusting

1шт.

26

538695R1

PLUG

- end

1шт.

27

3123314R1

SHROUD ASSY.

SHROUD ASSEMBLY - right

1шт.

28

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

29

892-11010

LOCK WASHER,M10

2шт.

30

1539060C1

SUSPENSION

PLATE - top

1шт.

3220555R1

RETAINER

CLIP - (Not illustrated)

2шт.

31

1536180C1

SUPPORT

BRACKET - assembly tool box

1шт.

32

1536072C1

BOX, TOOL

BOX - tool

1шт.

33

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

34

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

35

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.
