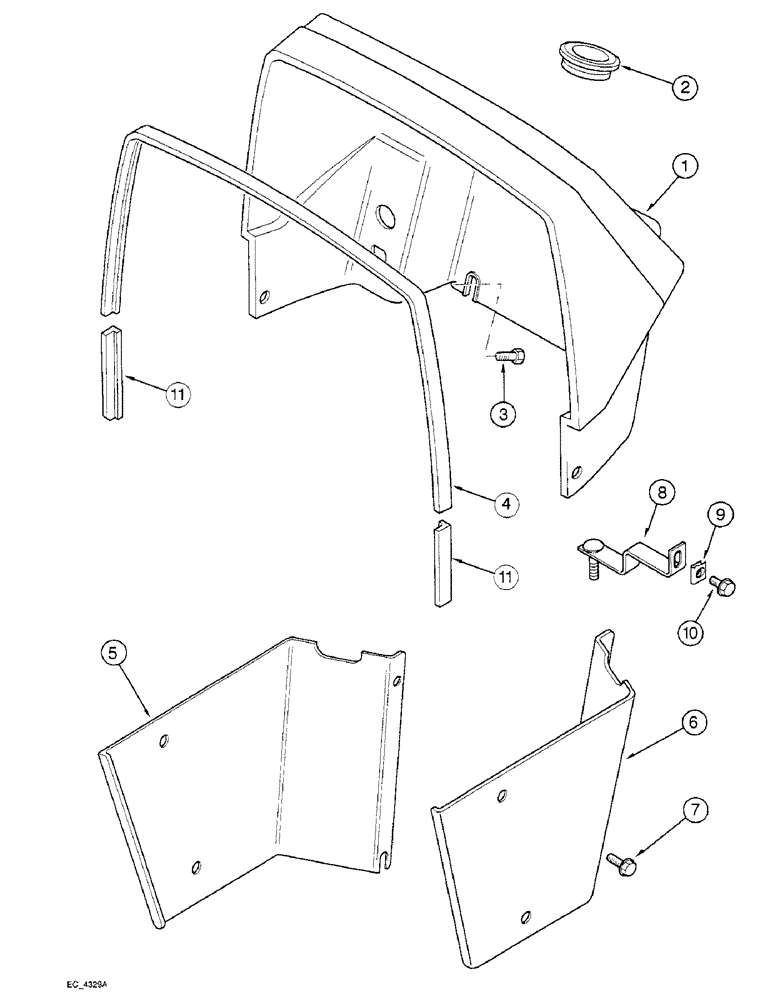

Запчасти Case IH 4230 (9-012) - INSTRUMENT HOUSING, TRACTOR WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

140313A3

PANEL, INSTRUMENTS

HOUSING - instrument panel

1шт.

1

140314A3

PANEL, INSTRUMENTS

HOUSING - instrument panel (With oil pressure gauge and ammeter)

1шт.

2

3141495R1

BOOT

- rubber (Steering column)

1шт.

3

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

- machine, pan Phillips, 1/4 NC x 5/8 inch

2шт.

4

NSS

NOT SOLD SEPARAT

SEAL - panel, 1102 mm (Order 4 x 3121645R1 and, Serial Range: cut-length)

1шт.

5

3121638R3

GUARD

PANEL - side, lower rear right (4210/4230)

1шт.

5

1536922C1

GUARD

PANEL - side, lower rear right (4240)

1шт.

6

3121637R3

GUARD

PANEL - side, lower rear left

1шт.

7

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

- cap, 1/4 NC x 5/8 inch

6шт.

8

144653A1

SUPPORT

BRACKET - panel, instrument

1шт.

9

96900C1

SPRING NUT,U, #10-16, Panel type

Speed U, #10-16, Panel type

2шт.

10

1975919C1

SELF-TAP SCREW

- cross slotted truss, 10-16 x 1 inch

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - panel, 110 mm (Order 1 x 3121645R1 and, Serial Range: cut-length)

2шт.

3121645R1

SEALING STRIP

- rubber, 1 foot length

1шт.
