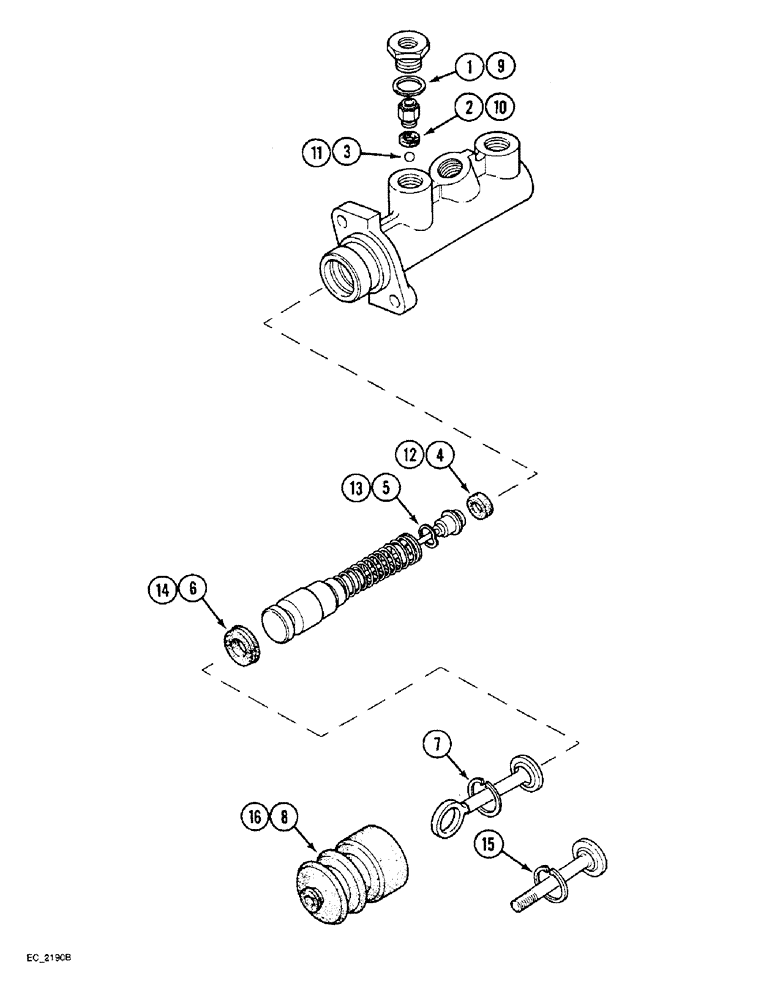

Запчасти Case IH 4230 (7-10) - BRAKE MASTER CYLINDER, TRACTOR WITHOUT CAB, TRACTOR WITH CAB (07) - BRAKES

1287843C92

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master, tractor without cab, Includes: Ref. 1 - 8

2шт.

1288228C1

REPAIR KIT

KIT - service, brake master cylinder, tractor without cab, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

GASKET - flow valve (Order kit 1288228C1), tractor without cab

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - flow valve (Order kit 1288228C1), tractor without cab

1шт.

3

NSS

NOT SOLD SEPARAT

BALL - flow valve (Order kit 1288228C1), tractor without cab

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - valve (Order kit 1288228C1), tractor without cab

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - spring (Order kit 1288228C1), tractor without cab

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - gland (Order kit 1288228C1), tractor without cab

1шт.

7

NSS

NOT SOLD SEPARAT

CIRCLIP - valve (Order kit 1288228C1), tractor without cab

1шт.

8

1288242C1

BELLOWS

BOOT - dust, brake master cylinder, tractor without cab

1шт.

1287734C92

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master, tractor with cab, Includes: Ref. 9 - 16

1шт.

1288229C1

KIT

KIT - service, brake master cylinder, tractor with cab, Includes: Ref. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - flow valve (Order kit 1288229C1), tractor with cab

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - flow valve (Order kit 1288229C1), tractor with cab

1шт.

11

NSS

NOT SOLD SEPARAT

BALL - flow valve (Order kit 1288229C1), tractor with cab

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - valve (Order kit 1288229C1), tractor with cab

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - spring (Order kit 1288229C1), tractor with cab

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - gland (Order kit 1288229C1), tractor with cab

1шт.

15

NSS

NOT SOLD SEPARAT

CIRCLIP - valve (Order kit 1288229C1), tractor with cab

1шт.

16

85109C1

BELLOWS

BOOT - master brake cylinder, tractor with cab

1шт.
