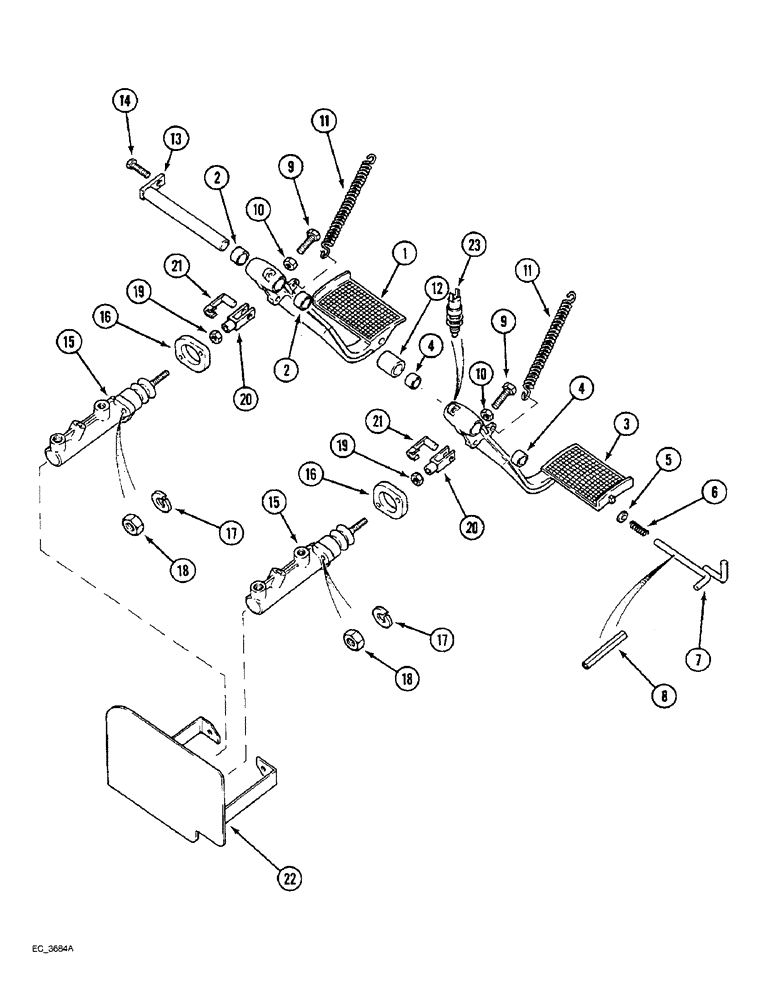

Запчасти Case IH 4230 (7-06) - BRAKE PEDALS, TRACTOR WITH CAB (07) - BRAKES

1

3232965R93

PEDAL ASSY.

brake, right, Includes: Ref. 2

1шт.

2

3226548R1

BUSHING

- pedal

2шт.

3

3232966R93

PEDAL ASSY.

brake, left, Includes: Ref. 4

1шт.

4

3226548R1

BUSHING

- pedal

2шт.

5

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

- flat

1шт.

6

3232969R1

SPRING

- compression

1шт.

7

3232964R1

LATCH ASSY.

pedal

1шт.

8

38-31012

PIN,3.96mm OD x 19.05mm L, Coiled

1шт.

9

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm (Brake pedal stop)

2шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

2783696R1

SPRING

- tension

2шт.

12

3232968R1

SPACER

- pedal support

1шт.

13

3232962R1

PIVOT PIN,20mm OD x 170mm L

ROD - pedal support

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

1шт.

15

1287734C92

MASTER CYLINDER

brake master (See Figure 7-10)

2шт.

16

3129655R1

SPACER

- master cylinder

2шт.

17

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

19

825-1410

NUT,M10, Cl 8

2шт.

20

713-2110

CLEVIS

- adjusting

2шт.

21

3232963R1

PIN

- clevis, 10 x 20 mm

2шт.

22

1536492C1

GUARD

BAFFLE - heat shield, Serial Range: -JJE0922289

1шт.

22

231449A1

GUARD

SHIELD - heat, brake cylinders, Start Serial: JJE0922290

1шт.

23

115206A1

LIMIT SWITCH

SWITCH

1шт.
