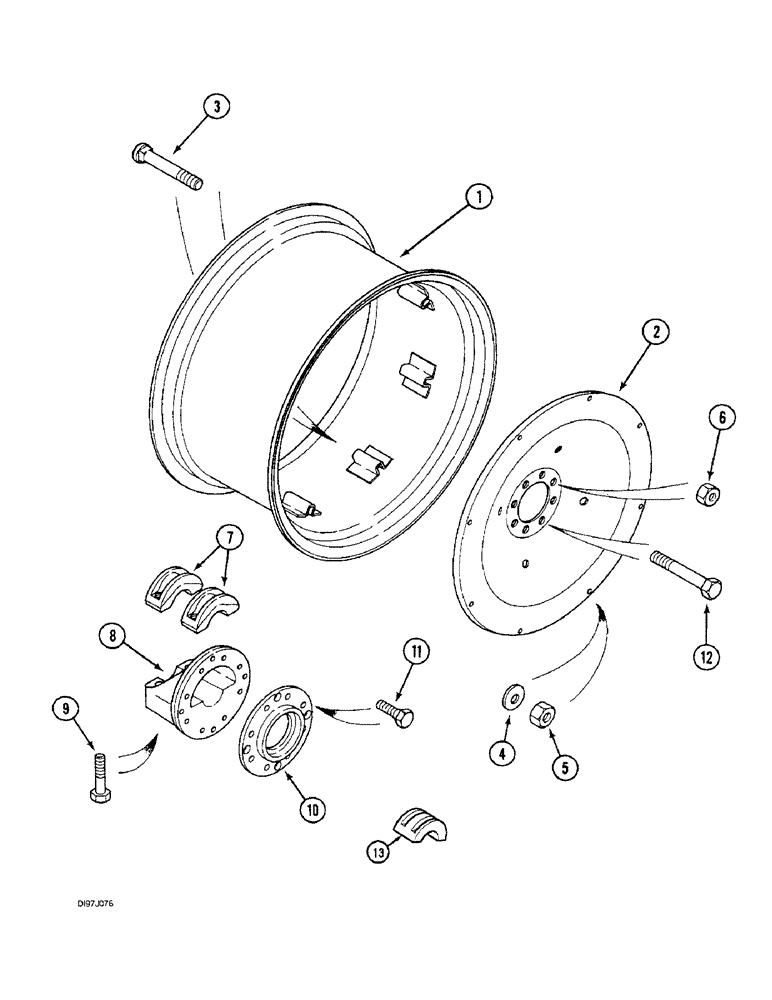

Запчасти Case IH 4230 (6-126) - REAR WHEELS, "CAN - AM", HUB CLAMP FOR BAR TYPE AXLE (06) - POWER TRAIN

1

1985679C1

RIM

- wheel, 15 x 34 inch

2шт.

1

1985688C1

RIM

- wheel, 11 x 38

2шт.

1

1985682C1

RIM

- wheel, 14 x 38

2шт.

2

1985683C1

DISC, WHEEL

DISC - 34 inch wheel

2шт.

2

1985680C2

DISC, WHEEL

DISC - wheel, 38 inch

2шт.

2

1985680C2

DISC, WHEEL

DISC - wheel, 38 inch

2шт.

3

711-16120

CARRIAGE BOLT,Sq Nk, M16 x 2 x 120mm, Cl 8.8

BOLT - round, square neck, 16 x 120 mm, class 8.8

16шт.

3

711-16100

CARRIAGE BOLT,Sq Nk, M16 x 2 x 100mm, Cl 8.8

BOLT - round, square neck, 16 x 100 mm, class 8.8

16шт.

3

711-16100

CARRIAGE BOLT,Sq Nk, M16 x 2 x 100mm, Cl 8.8

BOLT - round, square neck, 16 x 100 mm, class 8.8

16шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened

16шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened

19шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened

16шт.

5

825-1416

NUT,M16, Cl 8

16шт.

5

825-1416

NUT,M16, Cl 8

16шт.

5

825-1416

NUT,M16, Cl 8

16шт.

6

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

6

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

6

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

7

389539R1

CLAMP

- rear wheel hub, clamp for bar type axle, Serial Range: -JJE950141

4шт.

8

530504R1

HUB

- rear wheel, clamp for bar type axle

2шт.

9

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT - special, hex head, hub clamp for bar type axle

8шт.

10

365957R3

FLANGE

- pilot, hub clamp for bar type axle

2шт.

11

161-102

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW - pilot, flange mounting, hub clamp for bar type axle

8шт.

12

365397R3

WHEEL BOLT

BOLT - rear wheel, mounting, hub clamp for bar type axle

16шт.

13

1961091C1

CLAMP

- rear wheel hub, for bar type axle, Start Serial: JJE0950142

2шт.
