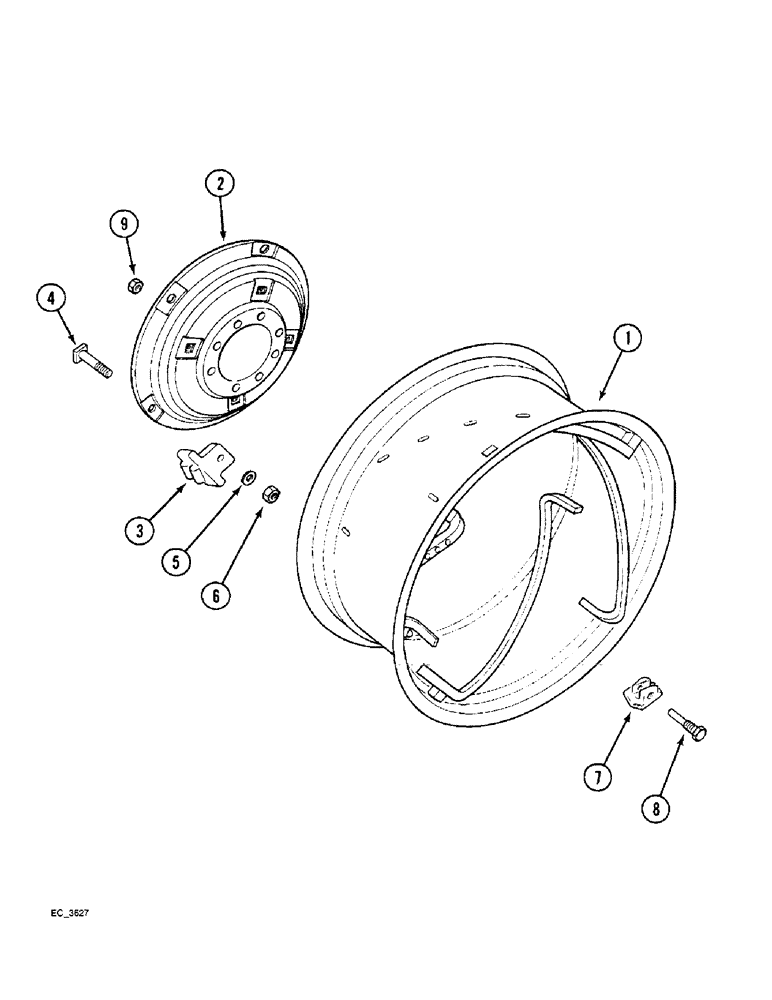

Запчасти Case IH 4230 (6-124) - REAR WHEELS 28 IN. AND 30 IN. POWER ADJUSTED WHEELS (06) - POWER TRAIN

1

A167901

RIM

- power adjusted, W12-28 (For 31.6 x 28 tire), 28 in. power adjusted wheel

2шт.

2

1282567C1

DISC, WHEEL

DISC - formed, 28 inch diameter, 28 in. power adjusted wheel

2шт.

3

399004R1

SHIN

CLAMP - double ramp, 28 in. power adjusted wheel

10шт.

4

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT - square head, 3/4 NC x 2-1/4 inch, 28 in. power adjusted wheel

10шт.

5

399007R1

WASHER

- flat, 3/4 inch NC, 28 in. power adjusted wheel

10шт.

6

399006R1

WHEEL NUT

- hex, 3/4 inch NC, 28 in. power adjusted wheel

10шт.

7

A9406

STOP

- rim, 28 in. power adjusted wheel

4шт.

8

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT - stop bracket, 28 in. power adjusted wheel

4шт.

9

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, 28 in. power adjusted wheel

16шт.

1

1343078C1

RIM

- power adjusted wheel, W15-30 (For 18.4 x 30 tire), 28 in. power adjusted wheel

2шт.

2

399002R1

DISC, WHEEL

DISC - formed, 30 inch diameter, 28 in. power adjusted wheel

2шт.

3

399004R1

SHIN

CLAMP - double ramp, 28 in. power adjusted wheel

10шт.

4

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT - square head, 3/4 NC x 2-1/4 inch, 28 in. power adjusted wheel

10шт.

5

399007R1

WASHER

- flat, 3/4 inch NC, 28 in. power adjusted wheel

10шт.

6

399006R1

WHEEL NUT

- hex, 3/4 inch NC, 28 in. power adjusted wheel

10шт.

7

A9406

STOP

- rim, 28 in. power adjusted wheel

4шт.

8

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT - stop bracket, 28 in. power adjusted wheel

4шт.

9

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, 28 in. power adjusted wheel

16шт.

1

1282566C1

RIM

- power adjusted wheel, W14-30 (For 16.9 x 30 tire), 30 in. power adjusted wheel

2шт.

2

399002R1

DISC, WHEEL

DISC - formed, 30 inch diameter, 30 in. power adjusted wheel

2шт.

3

399004R1

SHIN

CLAMP - double ramp, 30 in. power adjusted wheel

10шт.

4

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT - square head, 3/4 NC x 2-1/4 inch, 30 in. power adjusted wheel

10шт.

5

399007R1

WASHER

- flat, 3/4 inch NC, 30 in. power adjusted wheel

10шт.

6

399006R1

WHEEL NUT

- hex, 3/4 inch NC, 30 in. power adjusted wheel

10шт.

7

A9406

STOP

- rim, 30 in. power adjusted wheel

4шт.

8

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT - stop bracket, 30 in. power adjusted wheel

4шт.

9

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, 30 in. power adjusted wheel

16шт.
