Запчасти Case IH 4230 (6-122) - REAR WHEELS, 26 IN AND 30 IN. WHEELS, AND HUB CLAMP FOR BAR TYPE AXLE (06) - POWER TRAIN

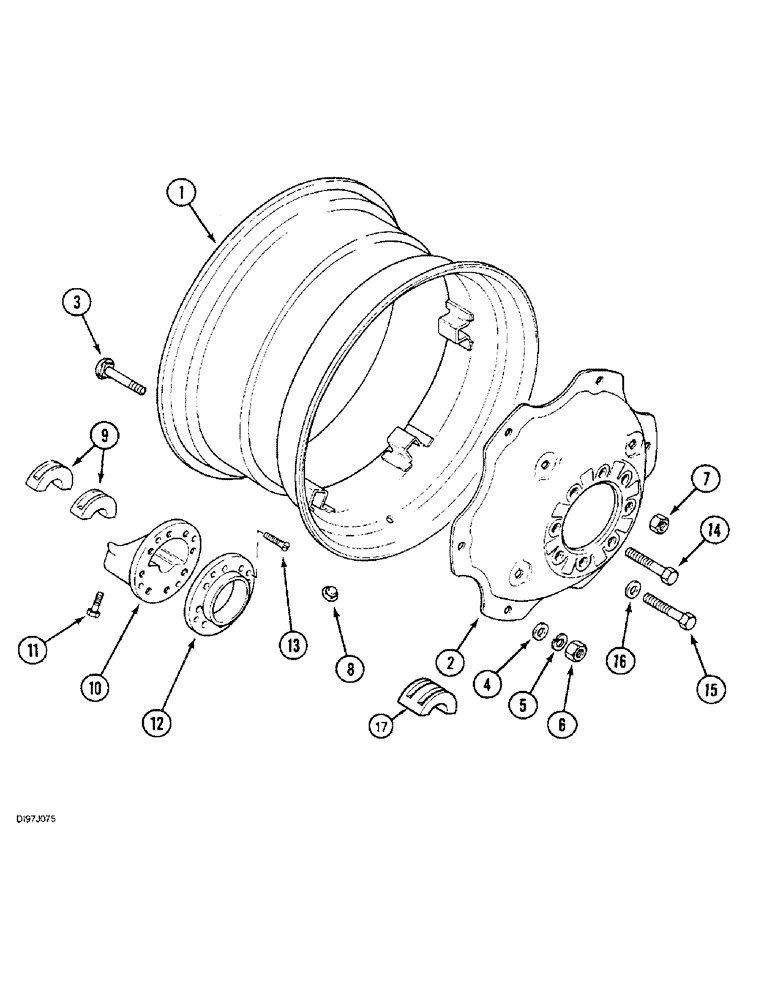

Схема запчастей Case IH 4230 - (6-122) - REAR WHEELS, 26 IN AND 30 IN. WHEELS, AND HUB CLAMP FOR BAR TYPE AXLE (06) - POWER TRAIN
10
2
16
4
7
5
3
17
13
9
1
14
12
11
6
15
8

Артикул

Название

Примечание

Количество

1

3129777R1

RIM

- wheel, DW16-26 (For 18.4 x 26 tire), 26 in. wheels

2шт.

2

129373A1

DISC, WHEEL

DISC - 24 and 26 inch wheel, 26 in. wheels

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp, 26 in. wheels

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch, 26 in. wheels

12шт.

5

492-21062

LOCK WASHER,5/8"

26 in. wheels 5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

26" Wheels 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining (Not used with bar type axle), 26 in. wheels

16шт.

8

383697R1

PLUG

- valve hole, 26 in. wheels

1шт.

1

395856R2

RIM

- wheel, DW14-30 (For 16.9 x 30 tire), 30 in. wheels

2шт.

2

129374A1

DISC, WHEEL

DISC - 28 and 30 inch wheel, 30 in. wheels

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp, 30 in. wheels

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch, 30 in. wheels

12шт.

5

492-21062

LOCK WASHER,5/8"

30 in. wheels 5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

30" Wheels 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining (Not used with bar type axle), 30 in. wheels

16шт.

8

383697R1

PLUG

- valve hole, 30 in. wheels

1шт.

1

395855R2

RIM

- wheel, DW16-30 (For 18.4 x 30 tire), 30 in. wheels

2шт.

2

129374A1

DISC, WHEEL

DISC - 28 and 30 inch wheel, 30 in. wheels

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp, 30 in. wheels

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch, 30 in. wheels

12шт.

5

492-21062

LOCK WASHER,5/8"

30 in. wheels 5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

30" Wheels 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining (Not used with bar type axle), 30 in. wheels

16шт.

8

383697R1

PLUG

- valve hole, 30 in. wheels

1шт.

9

389539R1

CLAMP

- rear wheel hub, hub clamp for bar type axle, Serial Range: -JJE0950141

4шт.

10

530504R1

HUB

- rear wheel, hub clamp for bar type axle

2шт.

11

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT - special, hex head, hub clamp for bar type axle

8шт.

12

365957R3

FLANGE

- pilot, rear wheel hub, hub clamp for bar type axle

2шт.

13

161-102

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW - pilot, flange mounting, hub clamp for bar type axle

8шт.

14

365397R3

WHEEL BOLT

BOLT - rear wheel, mounting, hub clamp for bar type axle

16шт.

15

414-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

- hex, rear wheel mounting (For straight through holes), hub clamp for bar type axle

16шт.

16

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

- flat, 21/32 x 1-5/16 x 3/32 inch (Use with 414-1028), hub clamp for bar type axle

16шт.

17

1961091C1

CLAMP

- rear wheel hub, hub clamp for bar type axle, Start Serial: JJE0950142

2шт.

Выбрано товаров: 33
