Запчасти Case IH 4230 (6-120) - REAR WHEELS, 24 AND 28 INCH WHEELS (06) - POWER TRAIN

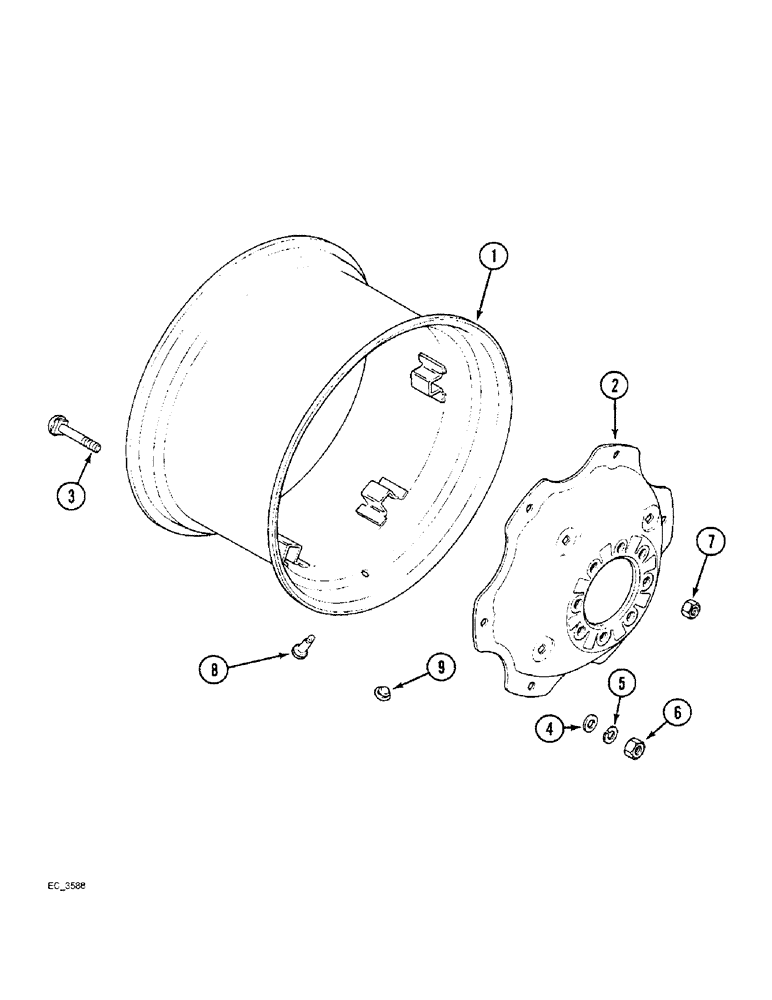

Схема запчастей Case IH 4230 - (6-120) - REAR WHEELS, 24 AND 28 INCH WHEELS (06) - POWER TRAIN
1
8
4
2
5
3
6
9

Артикул

Название

Примечание

Количество

1

D72304

RIM

- adjustable, W12-24, (For 13.6 x 24 or 14.9 x 24 tires)

2шт.

2

129373A1

DISC, WHEEL

DISC - 24 and 26 inch wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

9

383697R1

PLUG

- valve hole

1шт.

1

1265033C92

RIM

- wheel, W15L-24 (For 16.9 x 24 tire)

2шт.

2

129373A1

DISC, WHEEL

DISC - 24 and 26 inch wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

2шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

2шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

8

A20058

VALVE STEM

Wheel

2шт.

9

383697R1

PLUG

- valve hole

1шт.

1

1265034C1

RIM

- wheel, W11-28 (For 13.6 x 28 tire)

2шт.

2

129374A1

DISC, WHEEL

DISC - 28 and 30 inch wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

9

383697R1

PLUG

- valve hole

1шт.

1

G45710

RIM

- wheel, W12-28 (For 14.9 x 28 tires)

2шт.

2

129374A1

DISC, WHEEL

DISC - 28 and 30 inch wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

9

383697R1

PLUG

- valve hole

1шт.

1

1265036C1

RIM

- wheel, W15L-28 (For 16.9 x 28 tire)

2шт.

2

129374A1

DISC, WHEEL

DISC - 28 and 30 inch wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

9

383697R1

PLUG

- valve hole

1шт.

Выбрано товаров: 41
