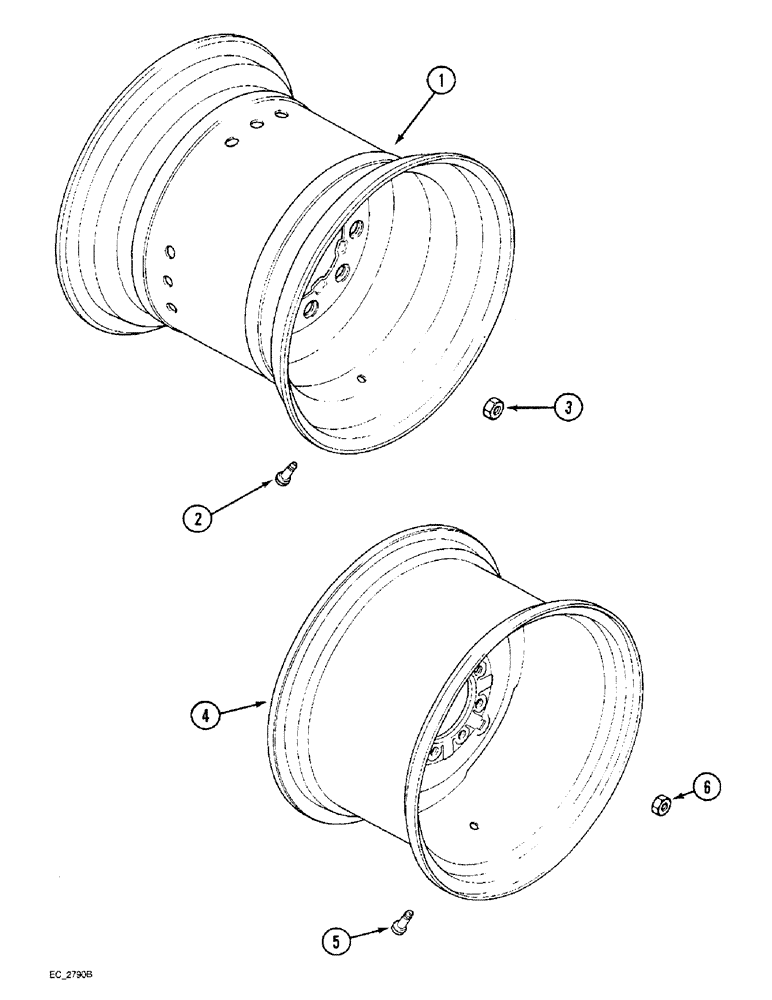

Запчасти Case IH 4230 (6-118) - REAR WHEELS INTEGRAL DISC TYPE, 16 IN., 26 IN., 24 IN. AND 28 IN. WHEELS (06) - POWER TRAIN

1

179161A1

RIM

WHEEL ASSEMBLY - rear, flat disc, 16.1-W16C (For 18.4 x 16.1 tire), 16 in. wheels

2шт.

1

386078R92

RIM

WHEEL ASSEMBLY - rear, 16LB-16.1 (For 18.4 x 16.1 or 21.5 x 16.1 tires) Chamfered holes, 16 in. wheels

2шт.

2

A20058

VALVE STEM

Wheel, 16 in. wheels

2шт.

3

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, 16 in. wheels

16шт.

1

1975356C1

WHEEL ASSY.

WHEEL ASSEMBLY - rear, DW20-26, (For 23.1 x 26.8 tires), 26 in. wheels

2шт.

2

A20058

VALVE STEM

Wheel, 26 in. wheels

2шт.

3

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, 26 in. wheels

16шт.

4

1541719C1

RIM

WHEEL - rear, W12 x 24 inch (For 14.9 x 24 tire), rear, 24 in. wheels

2шт.

5

A20058

VALVE STEM

Wheel, rear, 24 in. wheels

2шт.

6

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, rear, 24 in. wheels

16шт.

4

1288036C1

WHEEL ASSY.

WHEEL ASSEMBLY - rear, W15L-24 (For 16.9 x 24 tire), rear, 24 in. wheels

2шт.

5

A20058

VALVE STEM

Wheel, rear, 24 in. wheels

2шт.

6

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, rear, 24 in. wheels

16шт.

4

376197R91

WHEEL ASSY.

WHEEL ASSEMBLY - rear, W12-28 (For 14.9 x 28 tire), rear, 28 in. wheels

2шт.

5

A20058

VALVE STEM

Wheel, 28 in. wheels

2шт.

6

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, 28 in. wheels

16шт.

4

1288037C1

WHEEL

ASSEMBLY - rear, W15L-28 (For 16.9-28 tire), 28 in. wheels

2шт.

5

A20058

VALVE STEM

Wheel, 28 in. wheels

2шт.

6

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, 28 in. wheels.

16шт.
