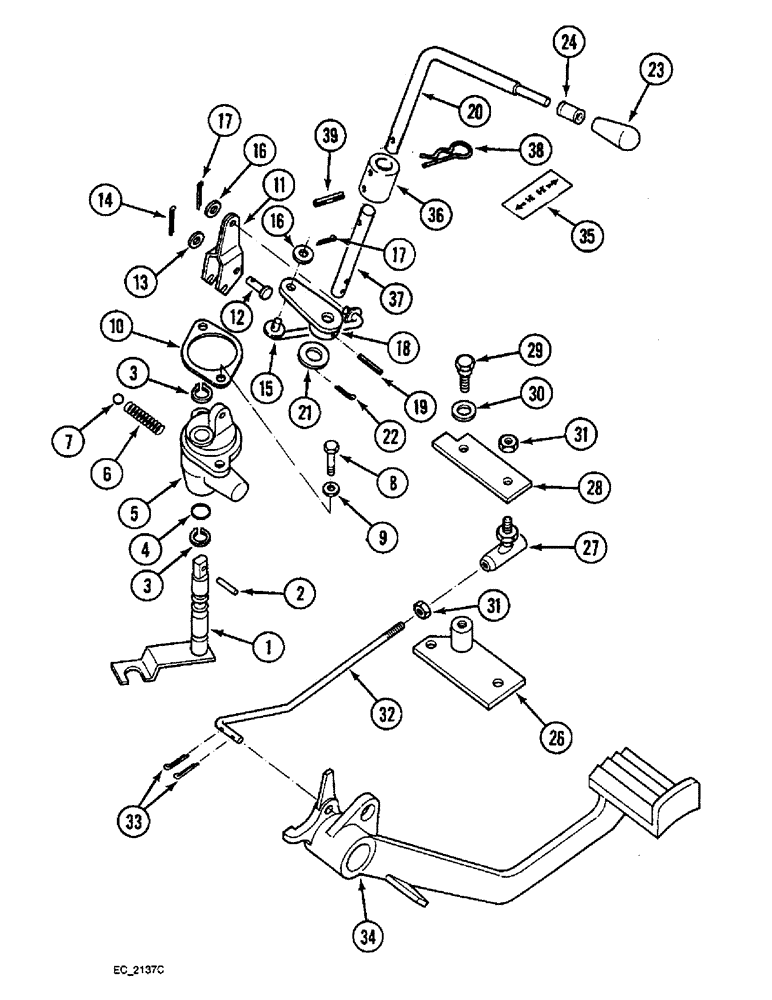

Запчасти Case IH 4230 (6-092) - FORWARD AND REVERSE CONTROL, TRACTOR WITHOUT CAB (06) - POWER TRAIN

1

531553R1

LEVER ASSY.

LEVER ASSEMBLY - lockout control

1шт.

2

37-1316

DOWEL,3/16" x 1"

PIN - dowel, hardened, 3/16 x 1 inch

1шт.

3

100-1862

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

2шт.

4

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

5

402595R2

SUPPORT

- control shaft

1шт.

6

402596R1

SPRING

- control

1шт.

7

211-1014

BALL,7/16" Dia

- chrome alloy steel, 7/16 inch, grade 24

1шт.

8

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

9

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

401623R1

GASKET

- control shaft support

1шт.

11

1282951C2

LEVER

BELLCRANK ASSEMBLY - forward and reverse control

1шт.

12

27-4090

CLEVIS PIN,1/4" x .906"

PIN - clevis, 1/4 x 29/32 inch

1шт.

13

95-31027

WASHER,1/4"

- flat, 17/64 x 5/8 x 3/64 inch

1шт.

14

32-410

COTTER PIN,1/16" x 5/8"

PIN, SPLIT (COTTER), 1/16" x 5/8"

1шт.

15

122202A1

ROD

ASSEMBLY - control

1шт.

16

95-11028

WASHER,1/4"

- flat, 9/32 x 5/8 x 1/16 inch

2шт.

17

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

18

402585R2

ARM ASSY.

ARM ASSEMBLY - control

1шт.

19

38-31014

PIN,5/32" x 7/8", Coiled

1шт.

20

143942A2

LEVER

ROD - governor control handle, upper

1шт.

21

495-81195

WASHER,1 5/32" x 2 3/4" x .164"

- flat, 17/32 x 1 x 1/16 inch

1шт.

22

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

23

1536683C1

HANDLE GRIP

KNOB ASSEMBLY - control handle, Includes: Ref. 24

1шт.

24

1536684C1

SPACER

RING - star, tolerence

1шт.

26

528942R1

PLATE ASSY.

PLATE ASSEMBLY - mounting

1шт.

27

A19105

BALL JOINT

JOINT - ball, 5/16 inch NF

1шт.

28

1282952C1

STRIP

- locking

1шт.

29

399509R1

BOLT,Shldr, Hex, 3/8" - 16 x 1", W/ Wshr

BOLT - shoulder

1шт.

30

495-81008

WASHER,.469" x 3/4" x .060"

- flat, 15/32 x 3/4 x 1/16 inch

1шт.

30

495-81153

WASHER,.469" x 3/4" x .030"

- flat, 15/32 x 3/4 x 1/32 inch

1шт.

31

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

32

528946R2

ROD

- lockout

1шт.

33

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

34

1500212C93

PEDAL ASSY.

PEDAL - clutch, with bushing (See Figure 6-50)

1шт.

35

123616A1

DECAL

- forward and reverse

1шт.

36

143941A2

COUPLING

COUPLER - rods, coupling

1шт.

37

143943A2

LEVER

ROD - governor control handle, lower

1шт.

38

198121A1

SPRING CLIP

PIN - quick attachable

1шт.

39

38-31014

PIN,5/32" x 7/8", Coiled

1шт.
