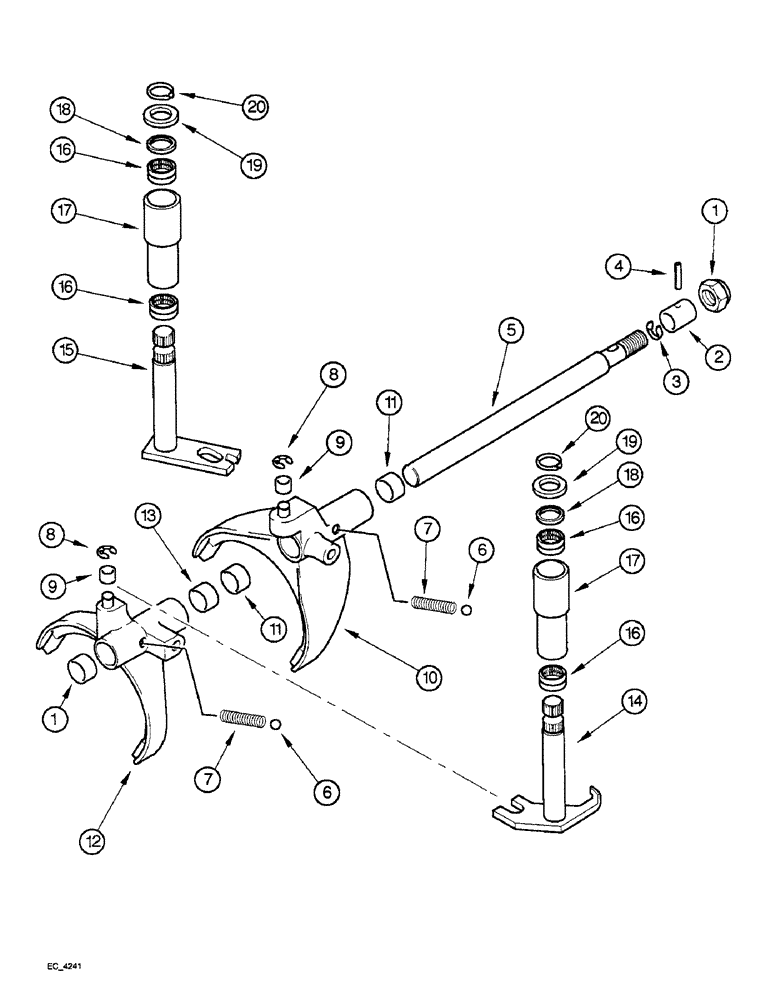

Запчасти Case IH 4230 (6-076) - TRANSMISSION CONTROL, INTERNAL (06) - POWER TRAIN

1

231-14412

LOCK NUT,3/4"-10, GB

NUT - hex lock, 3/4 inch NC

1шт.

2

115543A1

SLEEVE

BUSHING - shift rail support

1шт.

3

115544A1

CIRCLIP

RING - retaining crescent, 1.00 mm

1шт.

3

115545A1

CIRCLIP

RING - retaining crescent, 0.9 mm

1шт.

3

115546A1

CIRCLIP

RING - retaining crescent, 0.8 mm

1шт.

3

115547A1

CIRCLIP

RING - retaining crescent, 0.7 mm

1шт.

3

115548A1

CIRCLIP

RING - retaining crescent, 0.6 mm

1шт.

3

115549A1

CIRCLIP

RING - retaining crescent, 0.5 mm

1шт.

4

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

1шт.

5

115542A3

RAIL

- range, shift

1шт.

6

211-1013

BALL,10.31mm OD, Gr 24

- chrome alloy steel, 13/32 inch, grade 24

2шт.

7

128866A1

SPRING

- poppet ball, shift, detent

2шт.

8

100-3344

SNAP RING,#X43, .438" Dia, E-Type

Ring, Retaining, #X43, .375" Dia, E-Type

2шт.

9

A178954

SLEEVE

- shift fork pin

2шт.

10

115530A1

SHIFTER FORK

FORK ASSEMBLY - rear, range shift (Without cab), Includes: Ref. 11

1шт.

10

115531A1

SHIFTER FORK

FORK ASSEMBLY - rear, range shift (With cab), Includes: Ref. 11

1шт.

11

3057214R1

BUSHING

2шт.

12

115527A1

SHIFTER FORK

FORK ASSEMBLY - front, range shift (Without cab), Includes: Ref. 13

1шт.

12

115528A1

SHIFTER FORK

FORK ASSEMBLY - front, range shift (With cab), Includes: Ref. 13

1шт.

13

3057214R1

BUSHING

2шт.

14

115534A2

ARM ASSY.

ARM ASSEMBLY - front, range shift (Without cab)

1шт.

14

115538A2

ARM ASSY.

ARM ASSEMBLY - front, range shift (With cab)

1шт.

14

115555A1

ARM ASSY.

ARM ASSEMBLY - shift, hi/lo (With forward and reverse)

1шт.

15

115536A2

ARM ASSY.

ARM ASSEMBLY - rear, range shift (Without cab)

1шт.

15

115540A2

ARM ASSY.

ARM ASSEMBLY - rear, range shift (With cab)

1шт.

16

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

BEARING - needle

4шт.

17

115541A1

BUSHING

- control pivot

2шт.

18

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil

2шт.

19

A186416

WASHER, THRUST

WASHER - thrust, race

2шт.

20

100-1168

SNAP RING,#68, Ext

Ring, Snap, #68, Ext

2шт.
