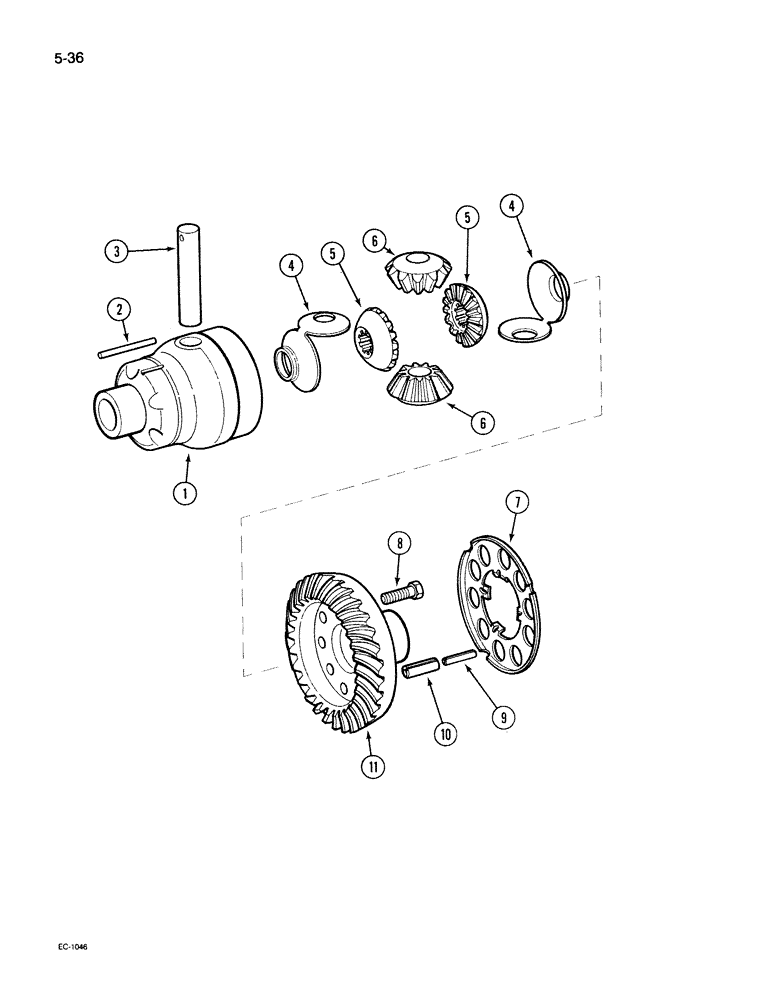

Запчасти Case IH 395 (5-036) - MECHANICAL FRONT DRIVE "ZF", DIFFERENTIAL, MFD AXLE (05) - STEERING

REF

INSTRUCTION

AXLE ASSEMBLY - APL-325, without self-locking differential, Includes: MFD axle differential assembly and Ref. 1 - 11

1шт.

NSS

NOT SOLD SEPARAT

AXLE ASSEMBLY - APL-330, without self-locking differential, Includes: MFD axle differential assembly and Ref. 1 - 11

1шт.

NSS

NOT SOLD SEPARAT

DIFFERENTIAL ASSEMBLY - MFD Axle, Includes: Ref. 1 - 11

1шт.

1

81400C1

HOUSING

CASE - differential

1шт.

2

932183R1

LOCK PIN,M5 x 50, Slotted

PIN - slotted spring, 5 x 50 mm

1шт.

3

81252C1

AXLE DIFFERENTIAL

SHAFT - differential

1шт.

4

81402C1

THRUST WASHER

WASHER - thrust

2шт.

5

81401C1

CONE PINION

GEAR - differential, side

2шт.

6

81403C1

CONE PINION

GEAR - pinion, differential

2шт.

7

81253C1

PLATE

- lock

1шт.

8

626-10028

BOLT,Hex, M10 x 1.5 x 28mm, Cl 10.9, Full Thd

- hex, M10 x 28 mm, class 10.9

10шт.

9

932671R1

LOCK PIN,M6 x 30, Slotted

PIN - slotted spring, 6 x 30 mm

5шт.

10

Q2948

LOCK PIN,M10 x 30, Slotted

PIN, LOCK, M10 x 30, Slotted

5шт.

11

NSS

NOT SOLD SEPARAT

GEAR - bevel (See Figure 5-034)

1шт.
