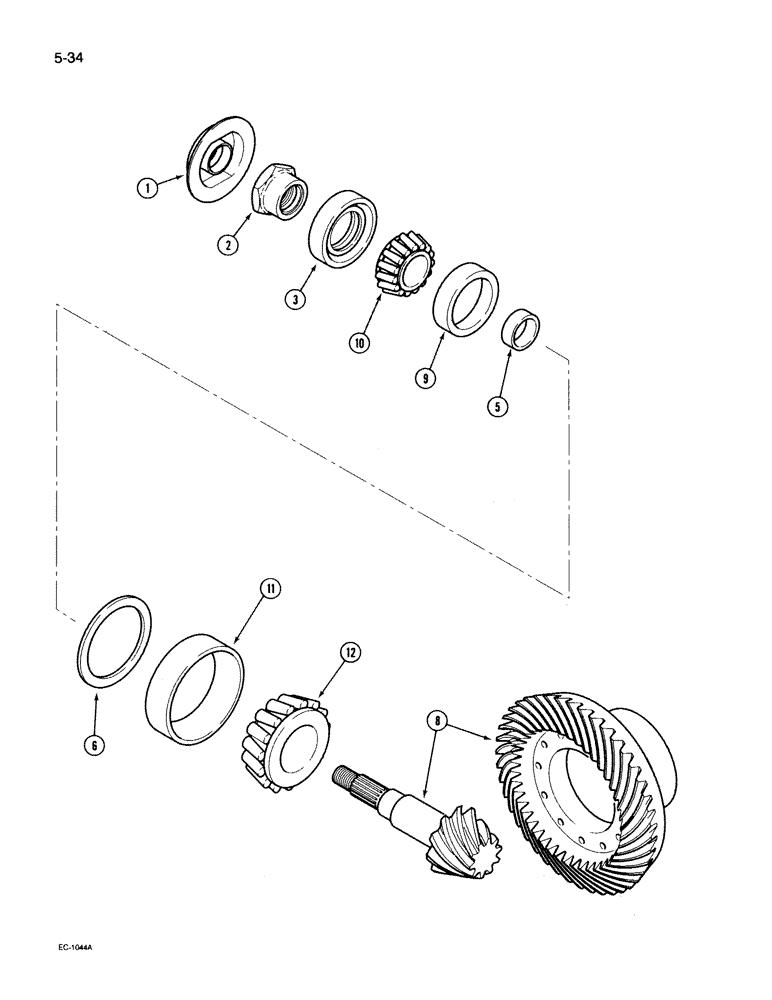

Запчасти Case IH 395 (5-034) - MECHANICAL FRONT DRIVE "ZF", DRIVE ASSEMBLY (05) - STEERING

NSS

NOT SOLD SEPARAT

AXLE ASSEMBLY - APL-330, Includes: MFD axle drive assembly and Ref. 1 - 12

1шт.

NSS

NOT SOLD SEPARAT

AXLE ASSEMBLY - APL-325, Includes: MFD axle drive assembly and Ref. 1 - 12

1шт.

NSS

NOT SOLD SEPARAT

DRIVE ASSEMBLY - MFD axle, Includes: Ref. 1 - 12

1шт.

1

1349126C1

LOCKING PLATE

PLATE - lock

1шт.

2

81397C1

NUT

1шт.

3

1349125C1

SEAL,45mm ID x 68mm OD x 11mm Thk

- shaft

1шт.

5

81380C1

RING

- 11.0 mm

1шт.

5

81381C1

RING

- 11.1 mm

1шт.

5

81382C1

RING

- 11.2 mm

1шт.

5

81383C1

RING

- 11.3 mm

1шт.

5

81384C1

RING

- 11.4 mm

1шт.

5

81385C1

RING

- 11.5 mm

1шт.

5

81386C1

RING

- 11.6 mm

1шт.

5

81387C1

RING

- 11.7 mm

1шт.

5

81388C1

RING

- 11.8 mm

1шт.

5

81389C1

RING

- 11.9 mm

1шт.

5

81390C1

RING

- 12.0 mm

1шт.

5

81391C1

RING

- 12.1 mm

1шт.

5

81392C1

RING

- 12.2 mm

1шт.

5

81393C1

RING

- 12.3 mm

1шт.

5

81394C1

RING

- 12.4 mm

1шт.

6

81367C1

SHIM

DISK - 0.90 mm

1шт.

6

81368C1

WASHER

DISK - 0.95 mm

1шт.

6

81369C1

SHIM

DISK - 1.00 mm

1шт.

6

81370C1

SHIM

DISK - 1.05 mm

1шт.

6

81371C1

SHIM

DISK - 1.10 mm

1шт.

6

81372C1

SHIM

DISK - 1.15 mm

1шт.

6

81373C1

SHIM

DISK - 1.20 mm

1шт.

6

81374C1

SHIM

DISK - 1.25 mm

1шт.

6

81375C1

SHIM

DISK - 1.30 mm

1шт.

6

81376C1

SHIM

DISK - 1.35 mm

1шт.

6

81377C1

SHIM

DISK - 1.40 mm

1шт.

6

81378C1

SHIM

DISK - 1.45 mm

1шт.

6

81366C1

WASHER

DISK - 1.50 mm

1шт.

8

81365C1

GEAR SET

GEAR - bevel, with matched shaft (Order 1997719C1)

1шт.

9

530741R1

BEARING CUP

BEARING - cup

1шт.

10

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

BEARING - cone

1шт.

11

871245R1

BEARING, CUP,72.233 mm OD x 19.842 mm

BEARING - cup (Order 131312C1)

1шт.

12

503098C91

BEARING ASSY,35.72mm ID x 25.4mm W

BEARING - cone

1шт.
