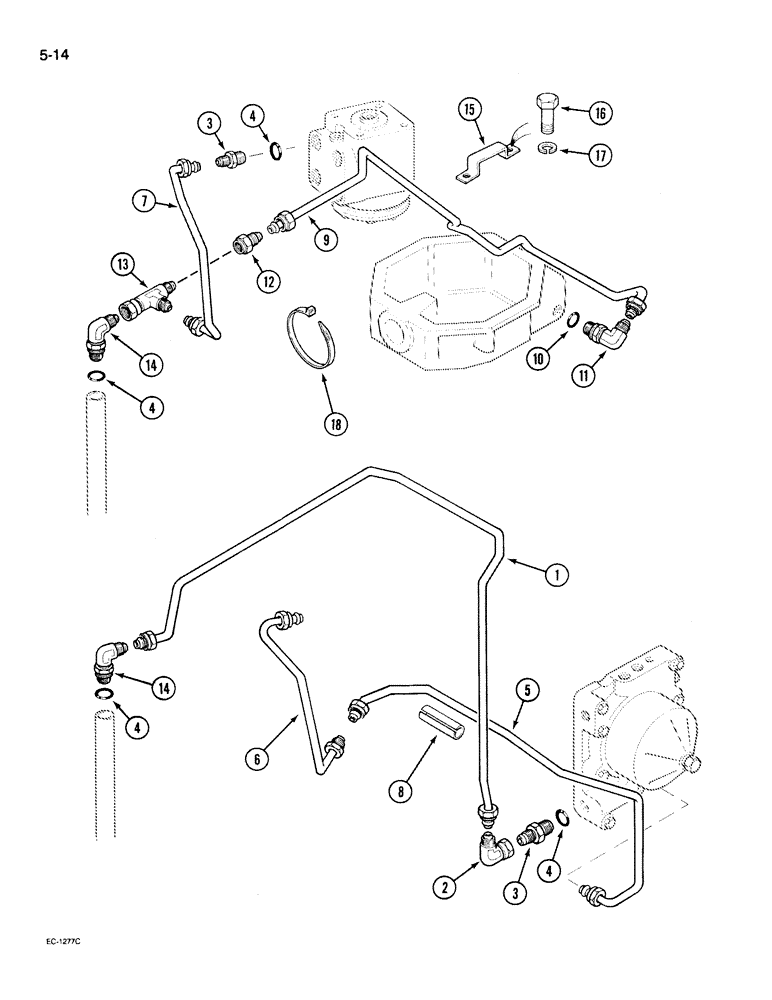

Запчасти Case IH 395 (5-014) - POWER STEERING TUBES, REAR, MFD TRACTOR WITH HYDRAULIC ACTIVATED DISC CLUTCH (05) - STEERING

1

99778C2

PIPE

TUBE ASSEMBLY - return, power steering

1шт.

2

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

3шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

5шт.

5

99777C3

PIPE

TUBE ASSEMBLY - pressure, power steering

1шт.

6

99797C3

PIPE

TUBE ASSEMBLY - pressure, power steering

1шт.

7

99798C2

PIPE

TUBE ASSEMBLY - return, power steering

1шт.

8

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

9

94365C5

PIPE

TUBE ASSEMBLY - drop box "ZF"

1шт.

9

1537827C1

HYD TUBE

TUBE ASSEMBLY - drop box "Carraro"

1шт.

11

99865C1

ELBOW

- 90 degree, 5/16 inch OD tube

1шт.

12

99799C1

FITTING

ADAPTOR - reducer

1шт.

13

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj straight thread

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

15

99953C1

CLAMP

BRACKET - pipe retaining

1шт.

16

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- hex, 3/8 NC x 1-7/8 inch

2шт.

17

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

2шт.

10

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
