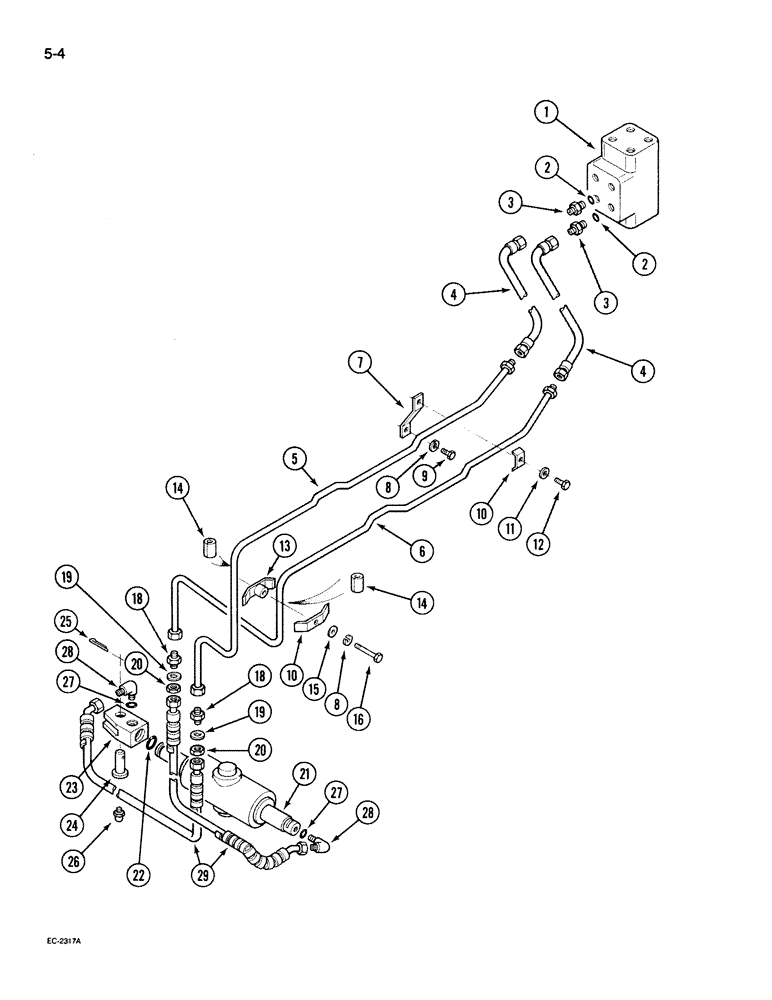

Запчасти Case IH 395 (5-004) - POWER STEERING TUBES, FRONT, 2 WHEEL DRIVE TRACTOR (05) - STEERING

1

88107C93

PUMP

VALVE ASSEMBLY - integral, power steering (See Figure 5-016)

1шт.

366441A1R

REMAN-HYD PUMP

395 (NORTH AMERICA) (1/90-12/94), Reman for New PN 88107C93

1шт.

366441A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

4

99784C1

HOSE

- flexible

2шт.

5

1282988C2

HYD TUBE

TUBE ASSEMBLY - power steering, front right

1шт.

6

1282989C2

HYD TUBE

TUBE ASSEMBLY - power steering, front left

1шт.

7

1500309C1

SUPPORT

BRACKET ASSEMBLY - front power steering pipes

1шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

10

529644R1

CLAMP

- tube

2шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

12

613-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, 6 mm - 1 x 25 mm

1шт.

13

529644R11

CLAMP

- tube

1шт.

14

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

15

95-11028

WASHER,1/4"

- flat, 9/32 x 5/8 x 1/16 inch

1шт.

16

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

1шт.

18

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

2шт.

19

93-21065

LOCK WASHER,Int Tooth, 5/8"

WASHER - lock, internal tooth, 5/8 inch

2шт.

20

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

21

549667R93

STEERING CYLINDER

CYLINDER ASSEMBLY - power steering (See Figure 5-018)

1шт.

84336125R

REMAN-HYD CYLINDER

395 (1/90-12/94), Reman for New P/N 549667R93

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

3125306R1

CLEVIS,9/16" - 18

- cylinder end

1шт.

24

3125305R1

PIN

- power steering cylinder

1шт.

25

1970958C1

PIN, SPLIT (COTTER)

PIN - cotter, 1/4 x 1-1/4 inch

1шт.

26

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

1шт.

28

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

1шт.

29

3121235R1

HOSE

ASSEMBLY - power steering cylinder

2шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
