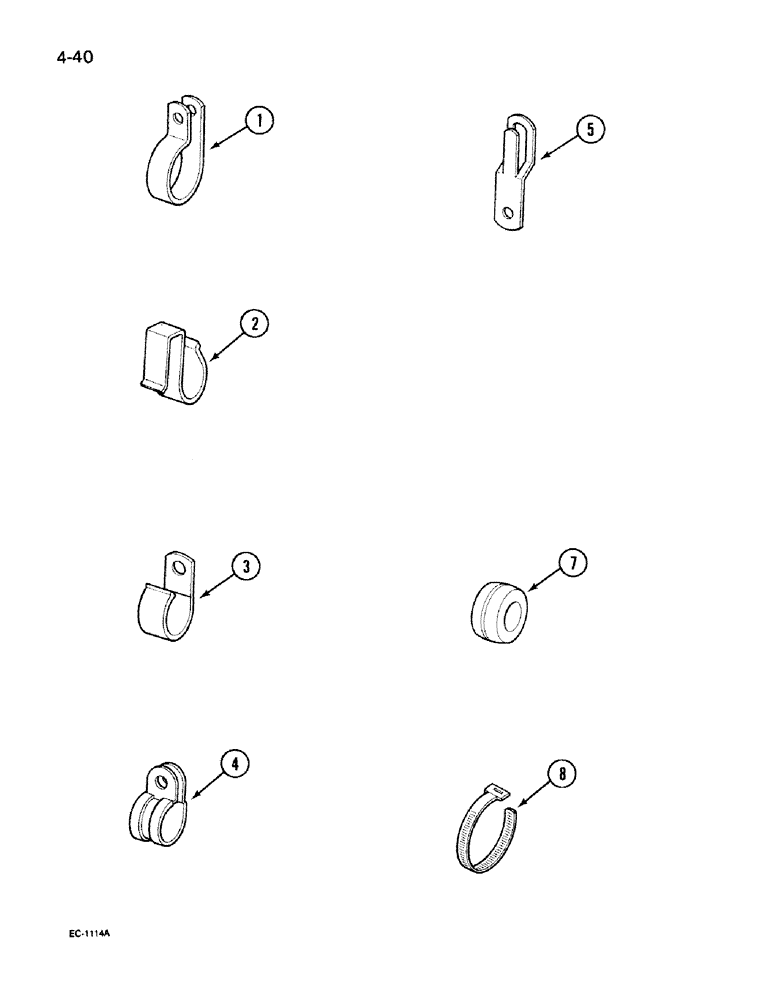

Запчасти Case IH 395 (4-040) - CABLE CLIPS, STRAPS AND GROMMETS (04) - ELECTRICAL SYSTEMS

1

3116240R1

CLIP

- 0.56 inch diameter, closed (Battery cable)

1шт.

2

3116918R1

CABLE CLIP

CLIP - edge, 0.25 inch max diameter (Air cleaner bracket)

1шт.

2

3125873R1

CLIP

- edge, 0.374 inch max diameter (Front grille)

2шт.

2

306132C1

CABLE TIE,14.5" L

CLIP - edge, 0.46 inch max diameter (Seat deck, left)

1шт.

2

537025R1

CLIP

- edge, 0.55 inch max diameter (Master cylinder bracket)

1шт.

2

3113490R1

CLIP

- edge, 0.55 inch max diameter (Steering support)

1шт.

2

539015R1

CLIP

- edge, 0.75 inch max diameter (Flasher unit)

1шт.

2

535303R1

CABLE CLIP

CLIP - edge, 0.95 inch max diameter (Battery tray)

1шт.

3

100770H

CLIP

- 0.31 inch diameter, open (Grille shroud, left)

1шт.

3

100770H

CLIP

- 0.31 inch diameter, open (Grille tie bar, left)

1шт.

3

316433C1

CLAMP

CLIP - 0.50 inch diameter, open (Main harness)

1шт.

4

3125823R1

CLIP

- 0.75 inch diameter (Battery tray)

1шт.

5

708115R1

PLATE ASSY.

CLIP - spring type

1шт.

7

705548R1

GROMMET

- 0.25 x 0.56 inch (Rear fender top)

1шт.

7

3123681R1

GROMMET

- 0.31 x 0.56 inch (Rear flasher lamps)

1шт.

7

3113661R1

GROMMET

- (Left and right fenders)

2шт.

7

1333007C1

GROMMET

- diaphram, 3/4 inch (Instrument side panel, left)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 inch max bundle (Battery cable)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 inch max bundle (Battery support)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 inch max bundle (Battery tray)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 inch max bundle (Fuel pipe)

2шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 inch max bundle (Steering support)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 inch max bundle (Front hood support)

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 inch max bundle (Starter cable)

1шт.

8

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 inch max bundle (Air inlet hose)

2шт.

8

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 inch max bundle (Steering support)

1шт.
