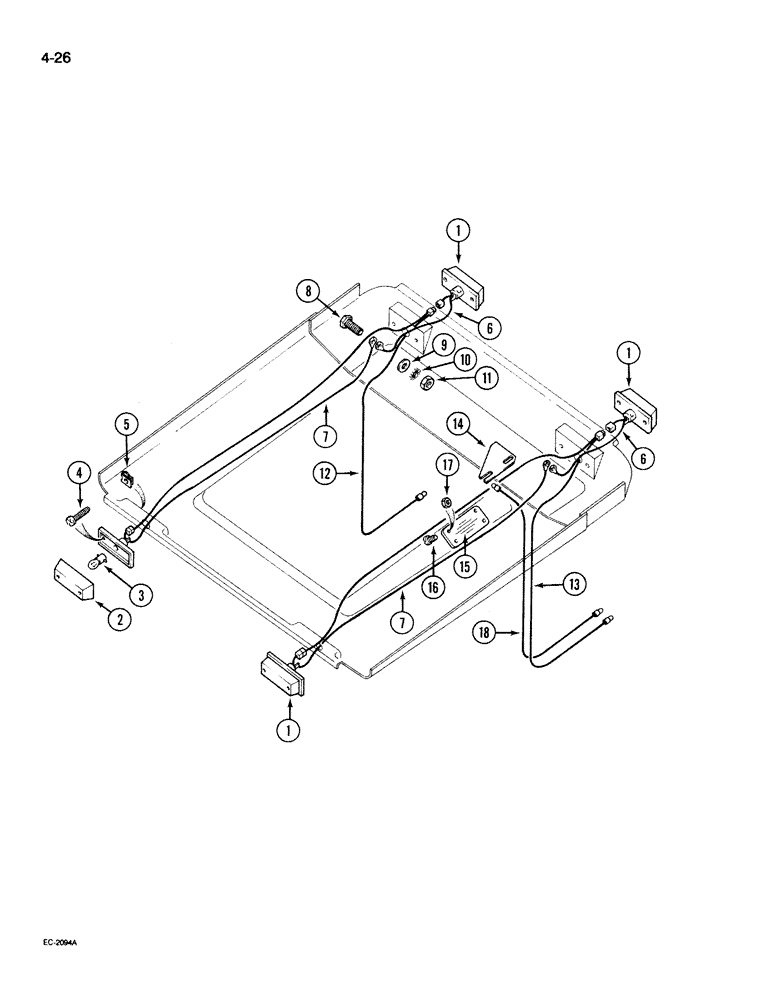

Запчасти Case IH 395 (4-026) - ROPS CANOPY WIRING AND LIGHTS (04) - ELECTRICAL SYSTEMS

1

130882C91

LAMP

LIGHT ASSEMBLY - warning, Includes: Ref. 2 and 3

4шт.

2

130883C1

LENS

- amber

1шт.

3

9417866

BULB,C6, #1156, 12.8V

- lamp, type C-6, trade No. 1156 (Order A41264)

1шт.

4

260-13540

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/2"

SCREW - tapping, pan head Phillips, No. 10-16 x 2-1/2 inch

8шт.

5

684322R1

SPRING NUT

- spring, U-type

8шт.

6

111264C3

CABLE

ASSEMBLY - ground, rear lights

2шт.

7

118219C1

CABLE

ASSEMBLY - ground, front lights

2шт.

8

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

2шт.

9

495-31022

WASHER,#10

2шт.

10

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

11

225-14110

NUT,#10-24

2шт.

12

118384C1

CABLE

ASSEMBLY - warning light, right

1шт.

13

118383C1

CABLE

ASSEMBLY - warning light, left

1шт.

14

118522C1

BRACKET

- radio mounting

1шт.

15

118258C1

PANEL

GRILLE - speaker

2шт.

16

342-10812

SCREW,Cross Oval Hd, #8-32 x 3/4"

- machine, oval head Phillips, No. 8 NF x 3/4 inch

8шт.

17

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, No. 8-32, with lock washer

8шт.

18

118523C2

CABLE

- radio power

1шт.
