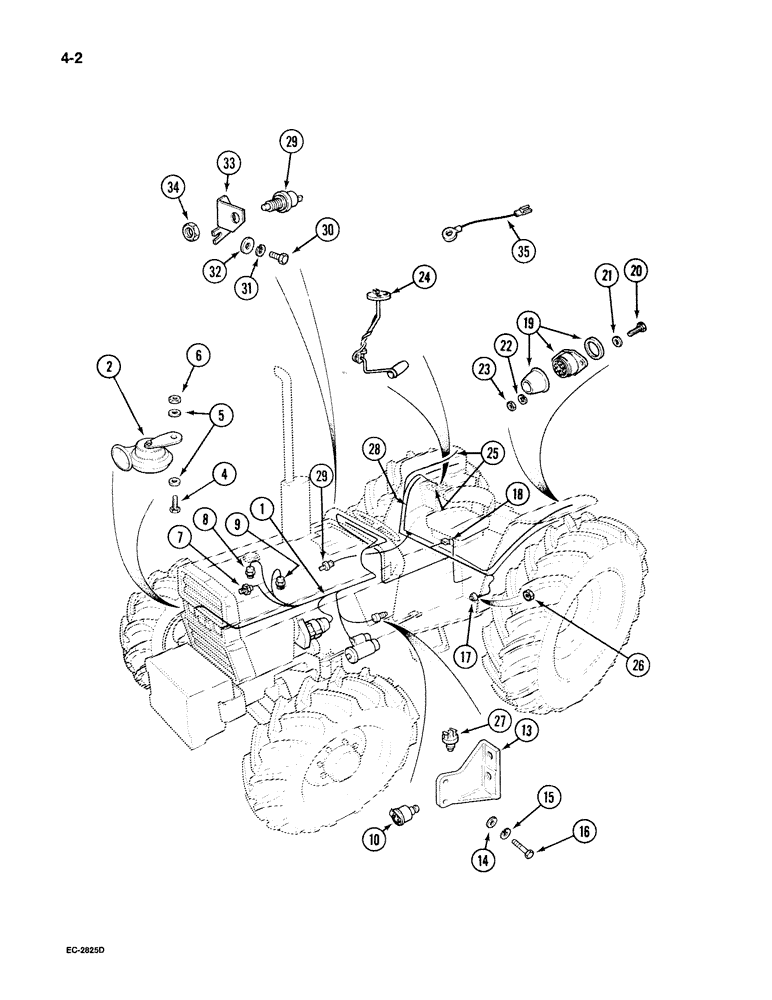

Запчасти Case IH 395 (4-002) - CHASSIS HARNESS AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

1537028C1

HARNESS

ASSEMBLY - main cable

1шт.

2

3057542R91

HORN

- warning (See Figure 9-008)

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 9/32 x 5/8 x 1/16 inch

2шт.

6

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

7

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator

1шт.

8

3127956R1

TEMPERATURE SENDER

TRANSMITTER - water temperature, Icknield

1шт.

9

91450C1

SWITCH, PRESSURE

SWITCH ASSEMBLY - enine oil pressure (On oil filter base)

1шт.

10

3072122R94

NEUTRAL START SWITCH

SWITCH - plunger, neutral starting (Order 3114409R92)

1шт.

13

1536664C1

SUPPORT

BRACKET - neutral starting switch

1шт.

14

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

2шт.

15

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

3147137R1

SWITCH

SWITCH - plunger, park brake warning (2WD tractor)

1шт.

17

1332724C1

SWITCH

- plunger, park brake warning (MFD tractor)

1шт.

Ref. 17 - 1332724C1 Switch, Park Brake Warning, Plus 1332725C1 Nut (For the back of the switch) Introduced in EBT SB 050 91. to be used with the new heavy duty park brake lever assembly option. Switch is also used with the non-cab brake light and the differention lock warning light.

1шт.

18

82634C1

CABLE

- MFD solenoid (See Figure 4-024)

1шт.

19

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET - , with boot 7 Pin

1шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

21

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

125-10001

NUT,5/16"-18, G5

2шт.

24

3129841R91

FUEL GAUGE

TRANSMITTER - fuel gauge, Icknield

1шт.

25

3123678R2

HARNESS

- fender, right

1шт.

26

1332725C1

NUT

M18

1шт.

27

3106565R91

SWITCH

- plunger,neutral starting (2 speed power shift) (See Figure 4-022)

1шт.

28

1537163C1

HARNESS

- stop and tail light feed

1шт.

29

1332724C1

SWITCH

- plunger, brake light

1шт.

30

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

31

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

32

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

1шт.

33

1332723C2

SUPPORT

BRACKET - brake light switch

1шт.

34

1332725C1

NUT

M18

1шт.

35

1537714C1

CABLE

- ground, 7 pin socket

1шт.
