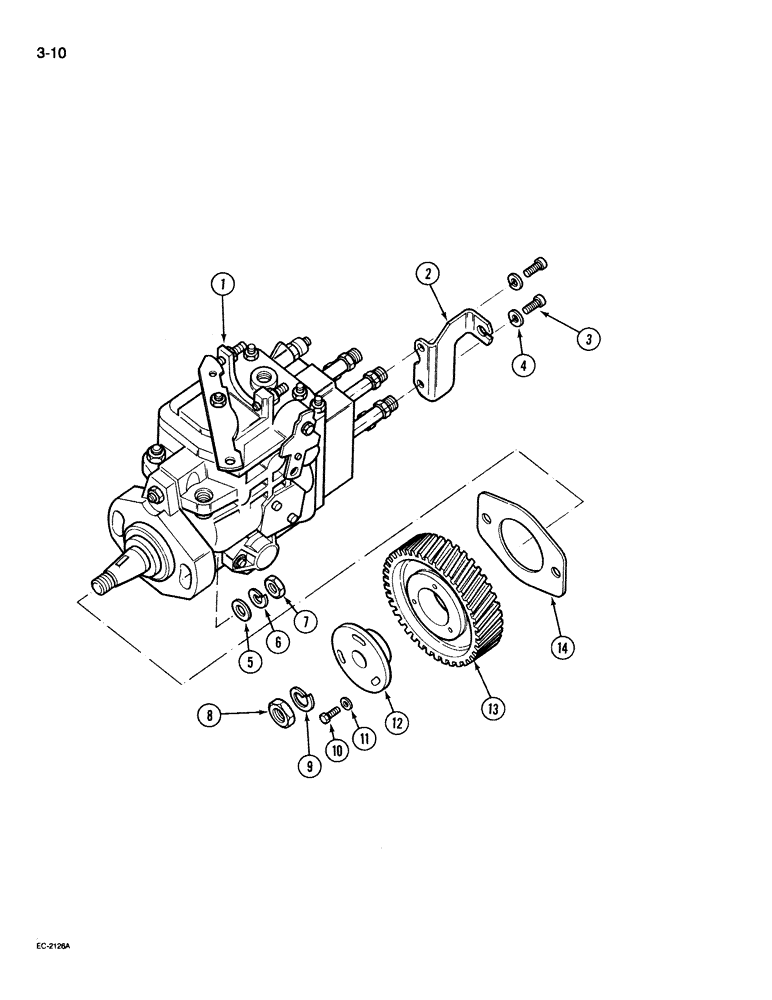

Запчасти Case IH 395 (3-010) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

1

1329101C91

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection (VE 3/10F 1100 R276/1)

1шт.

2

3218939R1

BRACKET

- support, fuel shut-off cable

1шт.

3

930679R1

HEX SOC SCREW,M6 x 25mm, Cl 8.8

hex socket, 6 mm - 1.00 x 25 mm, class 8.8

2шт.

4

905176R1

WAVE WASHER,M6.4 ID x 11 OD x .5 Thk

Lock M6.4 ID x 11 OD x .5 Thk

2шт.

5

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

6

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

2шт.

8

933981R1

NUT,M12 x 1.75, Cl 5

Hex M12 x 1.75, Cl 5

1шт.

9

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

1шт.

10

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

3шт.

11

896-16008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

- flat M8 x 21.5 x 2.5, HT

3шт.

12

3055067R2

HUB

- injection pump gear

1шт.

13

3056885R3

PINION

GEAR - injection pump

1шт.

14

3055384R1

GASKET

- fuel injection pump

1шт.
