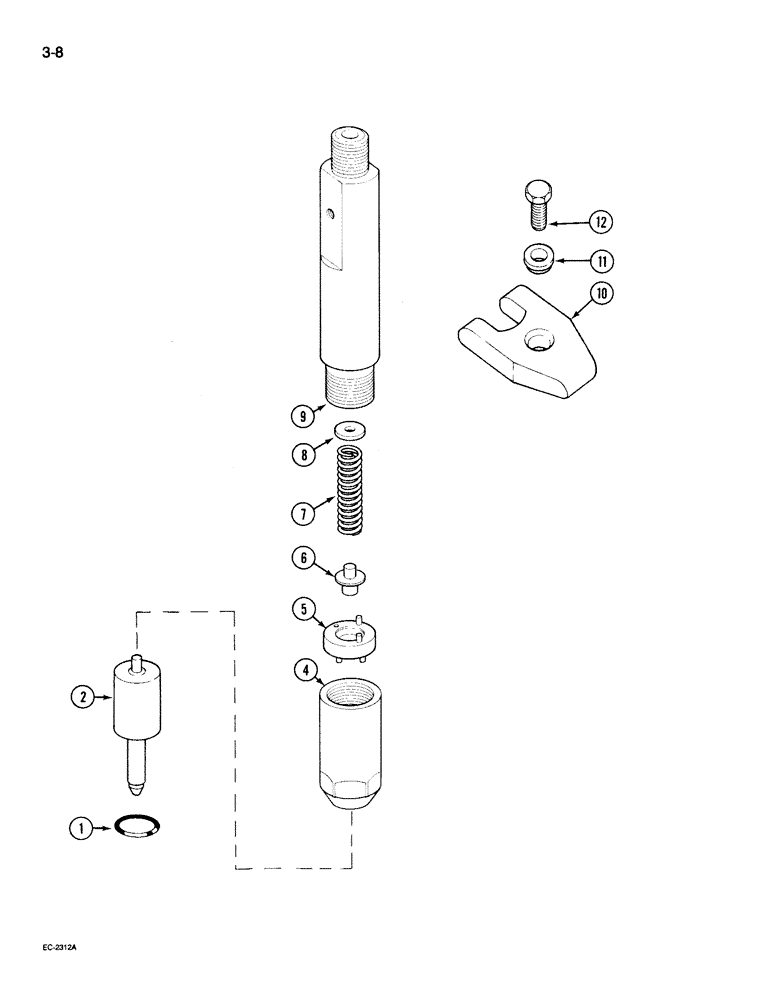

Запчасти Case IH 395 (3-008) - FUEL INJECTION NOZZLE (03) - FUEL SYSTEM

1

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

- injection nozzle

3шт.

Part of cylinder head gasket service kit

1шт.

2

3218248R2

NOZZLE CAP

NOZZLE - injection

3шт.

3218247R92

HOLDER

- injection nozzle, Includes: Ref. 4 - 9

3шт.

4

3218388R1

NUT

- nozzle cap

1шт.

5

3218387R1

SPACER

- nozzle holder

1шт.

6

3218386R2

SPACER

PIN - pressure

1шт.

7

3218385R2

SPRING

- compression

1шт.

8

3218657R1

SHIM

- 0.500 mm

1шт.

8

3218658R1

SHIM

- 0.525 mm

1шт.

8

3218659R1

SHIM

- 0.550 mm

1шт.

8

3218660R1

SHIM

- 0.575 mm

1шт.

8

3218661R1

SHIM

- 0.600 mm

1шт.

8

3218662R1

SHIM

- 0.700 mm

1шт.

8

3218663R1

SHIM

- 0.800 mm

1шт.

8

3218664R1

SHIM

- 0.900 mm

1шт.

9

3218389R1

BODY

- nozzle holder

1шт.

10

3218128R1

RETAINER

- fuel injection nozzle

3шт.

11

3218129R1

WASHER

- retainer bolt

3шт.

12

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

3шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets, Includes: Ref. 1 (See Figure 2-054)

1шт.
