Запчасти Case IH 395 (3-004) - FUEL FILTER (03) - FUEL SYSTEM

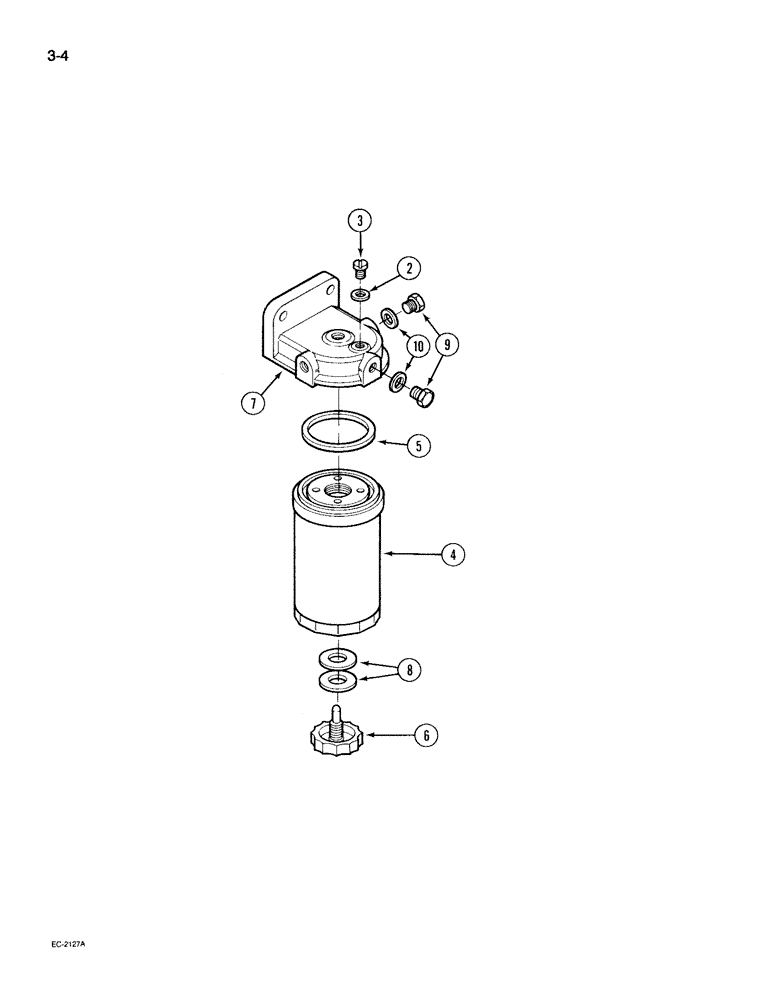

Схема запчастей Case IH 395 - (3-004) - FUEL FILTER (03) - FUEL SYSTEM
7
3
5
9
6
2
10
8
4

Артикул

Название

Примечание

Количество

3132452R92

FILTER

- fuel, Includes: Ref. 2 - 10

2шт.

2

757760R1

RING

- packing

1шт.

3

3144780R1

SCREW

- air vent

1шт.

4

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT - fuel filter

1шт.

5

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING - packing

1шт.

6

3228407R1

PLUG

- drain, 7.8 mm (For Bosch filter)

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - drain (For Champion filter) (Order filter 3132452R92)

1шт.

7

3132198R2

COVER

HEAD - filter

1шт.

8

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

- sealing

2шт.

9

712616R1

PLUG,Hex, M14 x 1.5

2шт.

10

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

Выбрано товаров: 11
