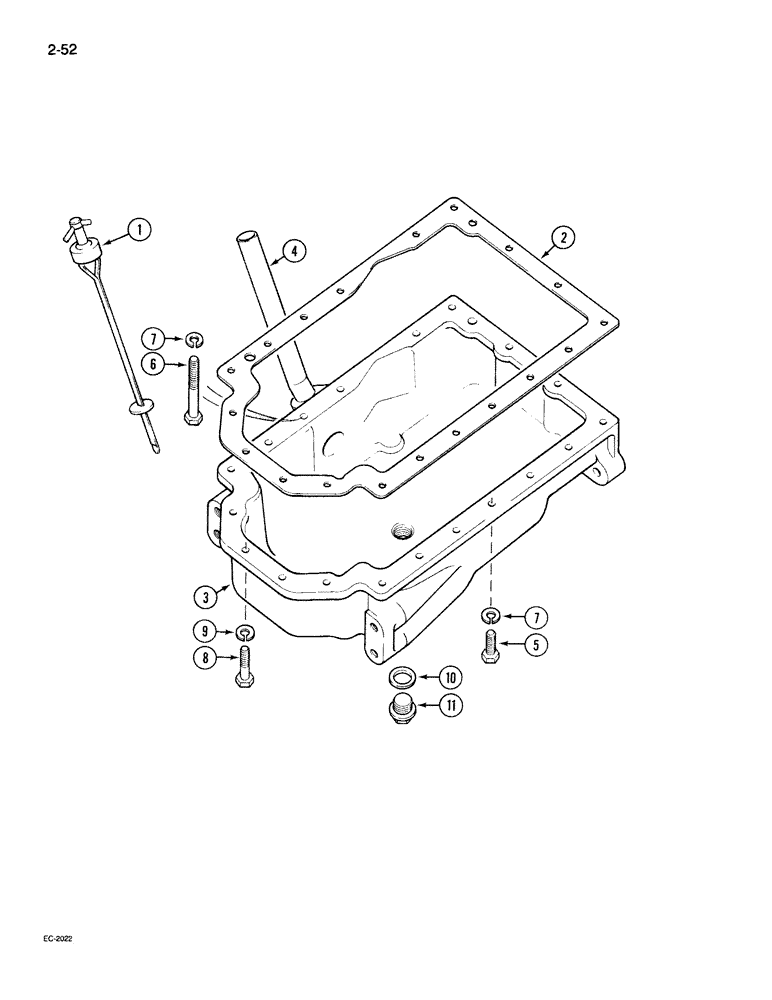

Запчасти Case IH 395 (2-052) - OIL PAN (02) - ENGINE

1

1329040C3

DIPSTICK,260mm L

GAUGE - oil level

1шт.

2

3055160R3

OIL PAN GASKET SET

- oil pan

1шт.

Part of crankcase gaskets service kit

1шт.

3

1806866C91

PAN, ENGINE OIL

PAN ASSEMBLY - oil, Includes: Ref. 4

1шт.

4

3136241R1

TUBE,29.556 mm OD, 250 mm Length

PIPE - oil filler

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

11шт.

5

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

6

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - hex, 5/16 NC x 3 inch

2шт.

7

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

15шт.

8

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

4шт.

9

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

4шт.

10

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, M26 x 31 x 2

1шт.

Part of crankcase gaskets service kit

1шт.

11

3132544R2

PLUG

- drain

1шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets, Includes: Ref. 2 and 10 (See Figure 2-056)

1шт.
