Запчасти Case IH 395 (2-048) - OIL FILTER (02) - ENGINE

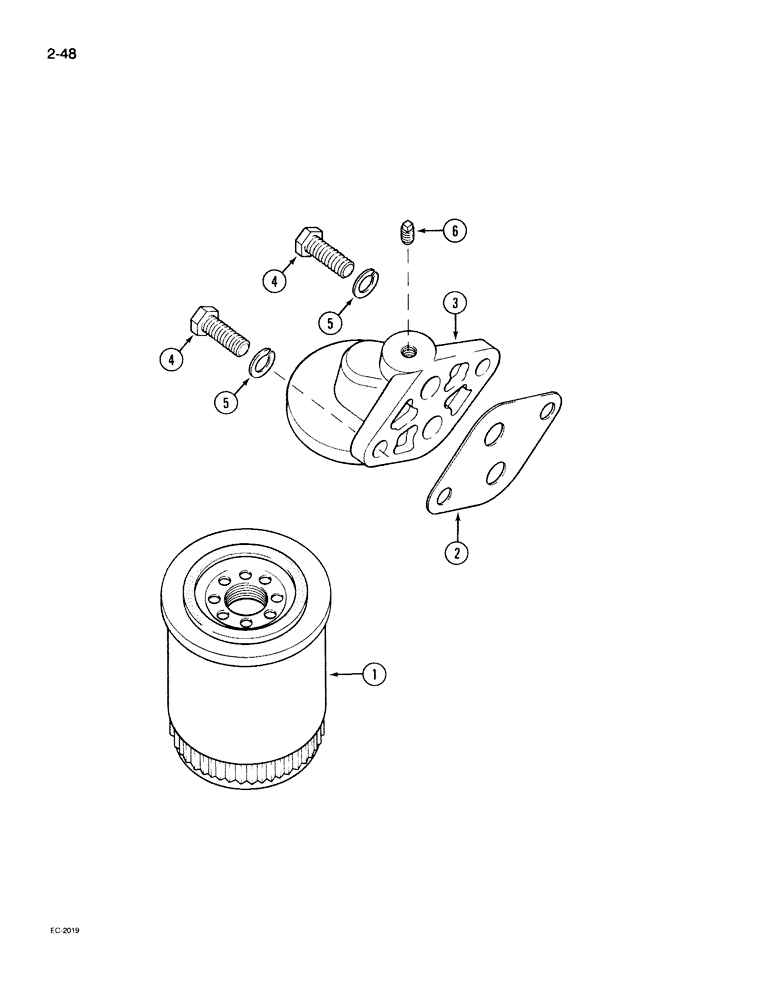

Схема запчастей Case IH 395 - (2-048) - OIL FILTER (02) - ENGINE
2
6
4
1
3
5
6
4

Артикул

Название

Примечание

Количество

1

3136046R93

FILTER, ENGINE OIL

FILTER - oil

1шт.

1

398080R2

ENGINE OIL FILTER

FILTER - oil, Serial Range: (Optional-3136046R93)

1шт.

2

3055237R2

GASKET

- oil filter socket

1шт.

Part of crankcase gaskets service kit

1шт.

3

3136047R1

HEAD

SOCKET - oil filter

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

3144513R1

SPRING WASHER

WASHER - lock

2шт.

6

444687

PLUG,Hex Soc, 1/8"-27

1шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets, Includes: Ref. 2 (See Figure 2-056)

1шт.

Выбрано товаров: 9
