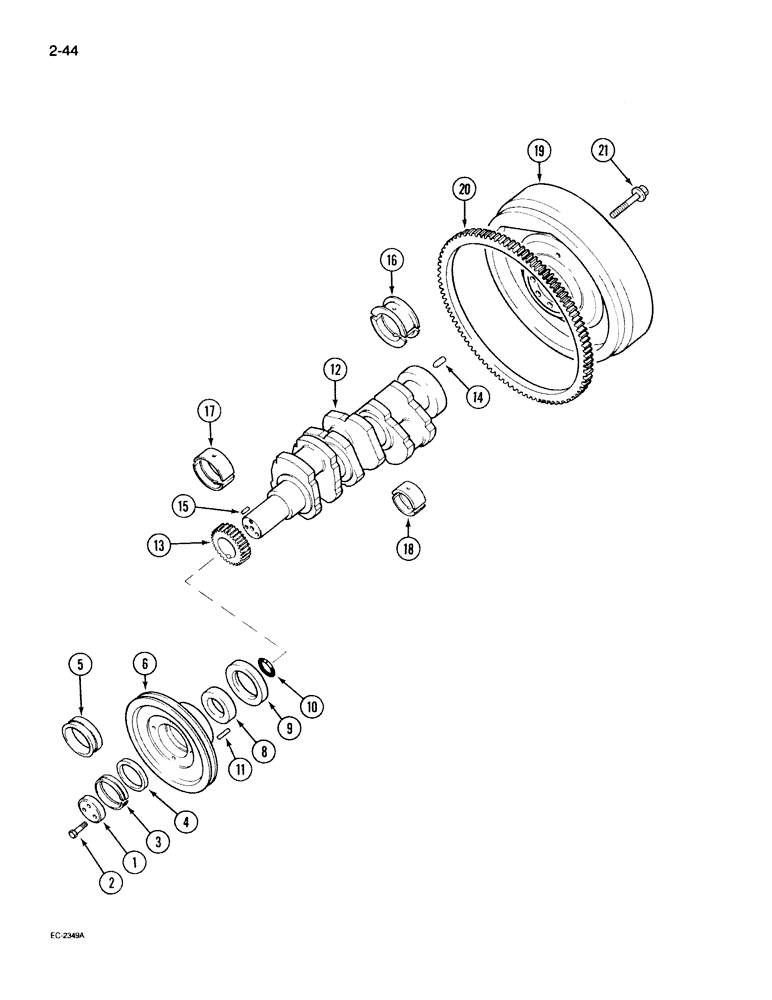

Запчасти Case IH 395 (2-044) - CRANKSHAFT AND BEARINGS (02) - ENGINE

1

3055154R1

WASHER

- pressure

1шт.

2

26-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 8

- hex, 7/16 NC x 1-3/8 inch, grade 8

3шт.

3

3055152R91

RING

ELEMENT - spring tightener

2шт.

4

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

- pressure

1шт.

5

3218394R1

BUSHING

KEY - locking element

1шт.

6

1808494C1

PULLEY

- crankshaft

1шт.

3228133R93

SEAL KIT

KIT - service, crankshaft oil seal, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - distance

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - crankshaft front

1шт.

10

713778R1

O-RING,3mm Thk x 55mm ID

- 55 x 61 mm

1шт.

11

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

11

932224R1

DOWEL,M4 x 32, Oval

PIN - dowel, 4 x 32 mm

1шт.

11

932652R1

DOWEL,4mm OD x 28mm L

PIN - dowel, 4 x 28 mm

1шт.

12

1329190C1

CRANKSHAFT BEARING

ASSEMBLY - with bearings, Includes: standard crankshaft assembly and Ref. 13 - 15

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT ASSEMBLY - standard, Includes: Ref. 13 - 15

1шт.

13

3055028R1

PINION

GEAR - pinion, crankshaft, 33 teeth

1шт.

14

141242

DOWEL

PIN - dowel, 3/8 x 7/8 inch

1шт.

15

932169R1

LOCK PIN,M4 x 10, Slotted

Spring M4 x 10, Slotted

1шт.

16

3055129R21

CRANKSHAFT BEARING

BEARING - main, standard size

1шт.

17

3055130R21

CRANKSHAFT BEARING

BEARING - main, standard size

3шт.

18

3055351R91

BEARING ASSY

BEARING - connecting rod, standard size

3шт.

19

1808166C92

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 20

1шт.

20

60883H

RING GEAR

GEAR - ring, flywheel

1шт.

21

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

- Flywheel mounting

7шт.
