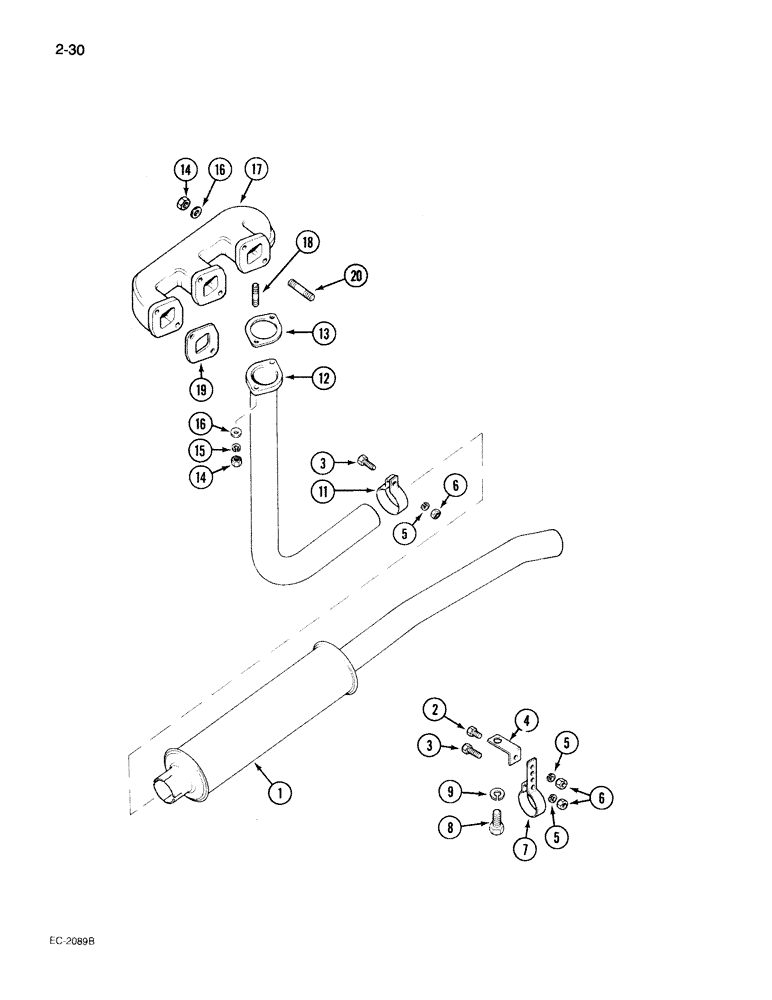

Запчасти Case IH 395 (2-030) - DOWNSWEPT EXHAUST (02) - ENGINE

1

401489R3

MUFFLER

- exhaust

1шт.

2

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

3

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

4

90156C1

GUARD

BRACKET - exhaust tail pipe

1шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

425-106

NUT,3/8"-16, Cl 5

3шт.

7

90157C1

SUPPORT

- tail pipe rear

1шт.

8

413-1014

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

1шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

67672C1

CLAMP

- pipe

1шт.

12

82864C1

TUBE,546.5 mm Length

PIPE ASSEMBLY - exhaust manifold

1шт.

13

401486R2

MANIFOLD GASKET

- exhaust manifold pipe

1шт.

14

129-123

NUT,3/8"-24, G5

8шт.

15

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

95-81080

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 3/32 inch

8шт.

17

3055124R12

MANIFOLD ASSY

MANIFOLD - exhaust

1шт.

18

3055663R1

STUD

- exhaust manifold

2шт.

19

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

3шт.

Part of cylinder head gasket service kit

1шт.

20

3055663R1

STUD

- exhaust manifold

6шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets, Includes: Ref. 19 (See Figure 2-054)

1шт.
