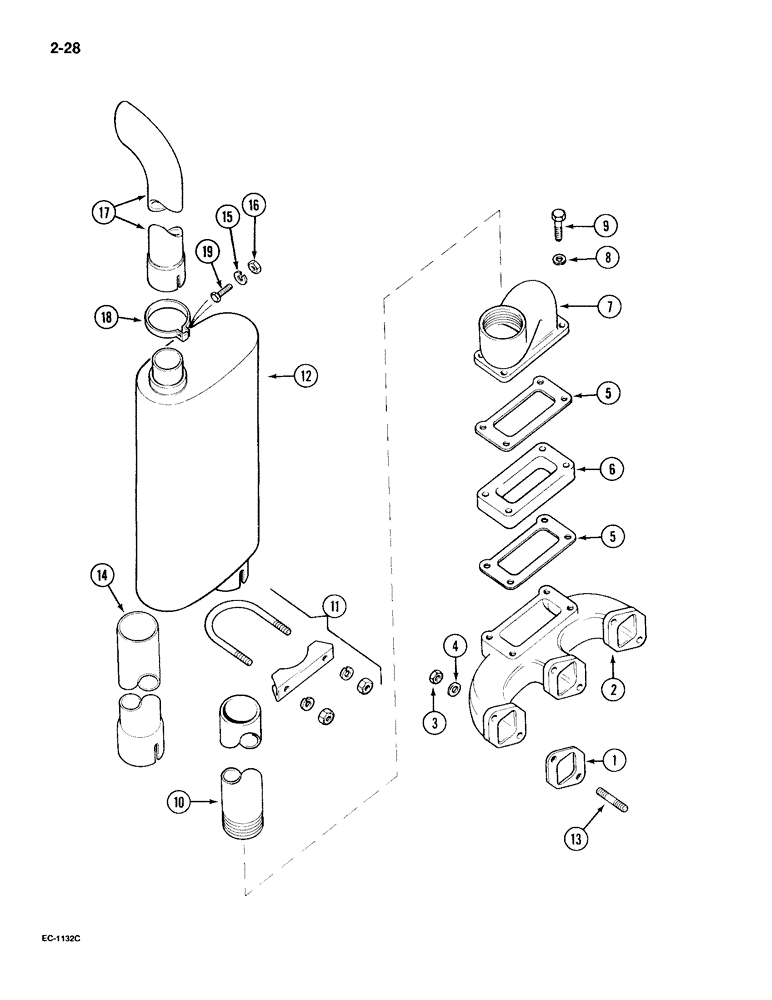

Запчасти Case IH 395 (2-028) - VERTICAL EXHAUST, PRIOR TO P.I.N. JJE0014501 (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

3шт.

Part of cylinder head gasket service kit

1шт.

2

3121373R3

MANIFOLD

- exhaust

1шт.

3

129-123

NUT,3/8"-24, G5

6шт.

4

95-81080

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 3/32 inch

6шт.

5

3136248R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

2шт.

6

3125792R1

SPACER

- exhaust manifold

1шт.

7

3136250R1

ELBOW

- exhaust manifold

1шт.

8

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

80547C1

TUBE

KIT - service, exhaust pipe, Includes: Ref. 10

1шт.

10

NSS

NOT SOLD SEPARAT

PIPE - exhaust

1шт.

11

1502294C1

CLAMP

- muffler, U-type

1шт.

12

84738C2

MUFFLER

- exhaust, curved end

1шт.

A173648

ARRESTER

MUFFLER spark arresting, for this application

1шт.

13

3055663R1

STUD

- exhaust manifold

6шт.

14

379661R1

PIPE

EXTENSION - exhaust (With ROPS canopy)

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

84755C1

PIPE

- curved exhaust

1шт.

18

1537216C1

CLAMP,50.8mm

- muffler pipe

1шт.

19

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets, Includes: Ref. 1 (See Figure 2-054)

1шт.
