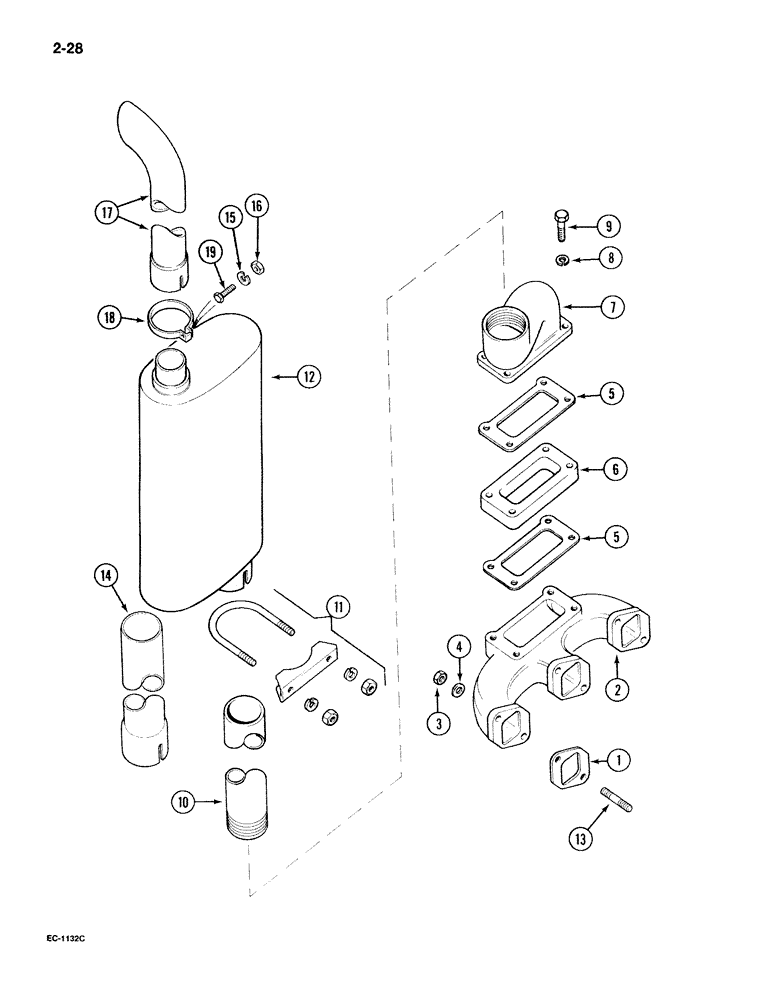

Запчасти Case IH 395 (2-026) - VERTICAL EXHAUST, P.I.N. JJE0014501 AND AFTER (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

3шт.

2

3121373R3

MANIFOLD

- exhaust

1шт.

3

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

3шт.

4

95-81080

WASHER,13/32" x 3/4" x .120"

- flat 0.406 x 0.75 x 0.105 inch

6шт.

5

3136248R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

2шт.

6

3125792R1

SPACER

- exhaust manifold

1шт.

7

1536853C1

ELBOW

- exhaust manifold with spacer

1шт.

7

1537693C1

ELBOW

- exhaust manifold without spacer

1шт.

8

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch with spacer

4шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

without spacer Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

10

1537413C1

PIPE

exhaust

1шт.

11

A13240

CLAMP,2-5/8" ID

muffler U-type

1шт.

12

A173180

MUFFLER

exhaust

1шт.

A173648

ARRESTER

MUFFLER, spark arresting, for this application

1шт.

13

REF

INSTRUCTION

STUD - exhaust manifold (See page 2-036)

1шт.

14

379661R1

PIPE

- extension, exhaust

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

84755C1

PIPE

- curved exhaust

1шт.

18

1537216C1

CLAMP,50.8mm

- muffler pipe

1шт.

19

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.
