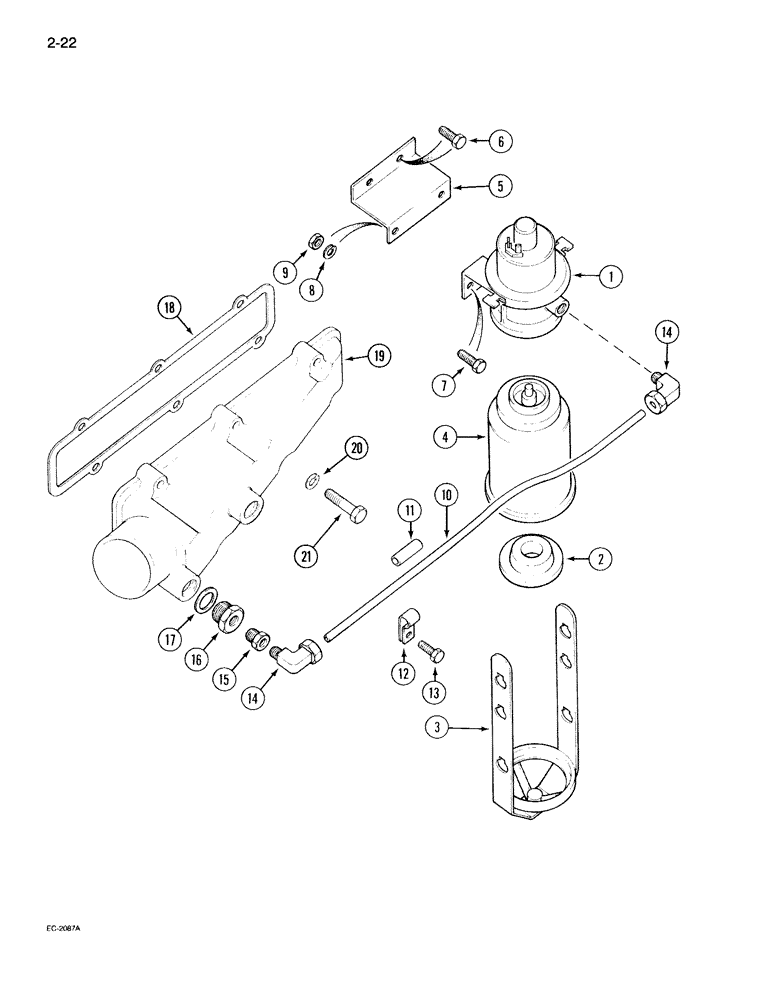

Запчасти Case IH 395 (2-022) - ETHER STARTING (02) - ENGINE

1

A143381

SOLENOID

VALVE ASSEMBLY - solenoid, ether injection, Includes: Ref. 2 and 3

1шт.

2

395686R1

GASKET

- ether can

1шт.

3

A45687

CLAMP

HANGER - ether can

1шт.

4

385064R91

FLUID

- ether starting, 12 ounce can

1шт.

5

535672R2

BRACKET

- injection mounting

1шт.

6

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

7

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

10

NSS

NOT SOLD SEPARAT

PIPE - injection feed, 12 inch (Cut from 995059R2)

1шт.

10

995059R2

TUBE

PIPE - bulk length, 20 foot roll

1шт.

11

3116374R1

SLEEVE

- pipe protection

1шт.

12

3112817R1

CLAMP

- support, feed pipe

1шт.

13

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

1шт.

14

140304

ELBOW

- 90 degree, 1/8 inch OD tube

2шт.

15

269635R91

NOZZLE CAP

NOZZLE - starting fluid

1шт.

16

3116081R1

JET

ADAPTOR - ether nozzle

1шт.

16

3136229R1

PLUG,7/8" - 14

- closing (Without Ether Starting)

1шт.

17

933945R1

SEALING RING,M23 x 28 x 2.5

RING - packing

1шт.

18

3055397R4

MANIFOLD GASKET

- intake manifold

1шт.

Part of cylinder head gasket service kit

1шт.

19

3138824R1

MANIFOLD

- intake

1шт.

20

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16"), Intake manifold M8.2 ID x 16 OD x .9 Thk

6шт.

21

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2", Intake manifold

6шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets, Includes: Ref. 18 (See Figure 2-054), intake manifold

1шт.
