(2-020) - AIR CLEANER, DONALDSON, WITHOUT SAFETY ELEMENT

Запчасти Case IH 395 (2-020) - AIR CLEANER, DONALDSON, WITHOUT SAFETY ELEMENT (02) - ENGINE

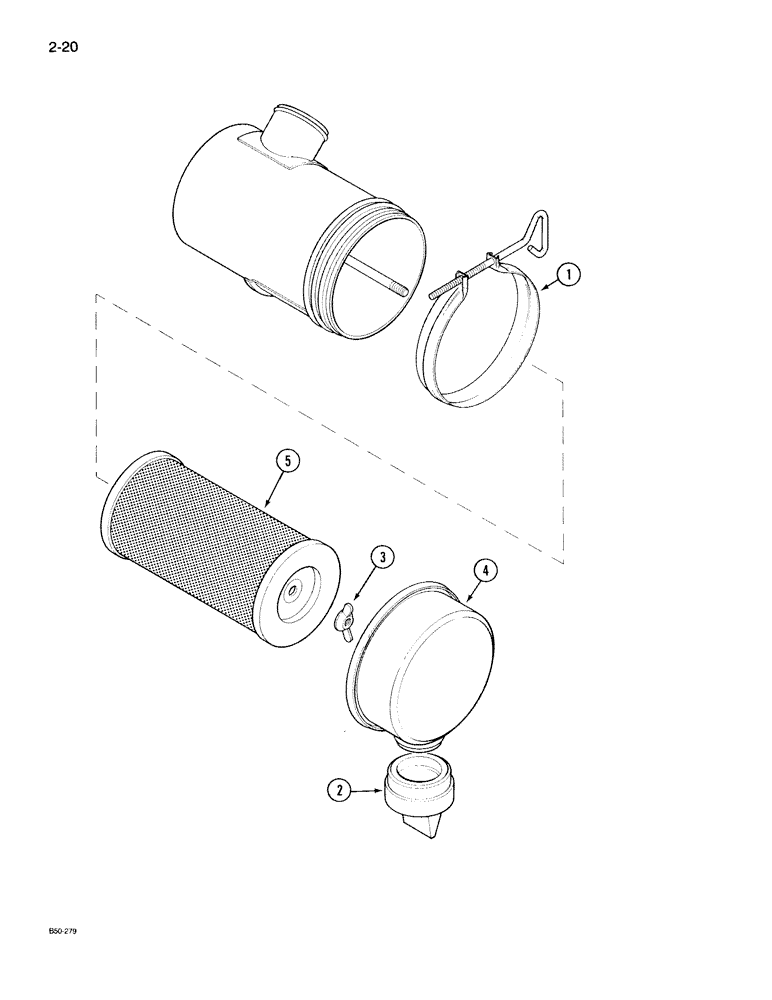

Схема запчастей Case IH 395 - (2-020) - AIR CLEANER, DONALDSON, WITHOUT SAFETY ELEMENT (02) - ENGINE
2
5
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3125250R92

AIR CLEANER

CLEANER ASSEMBLY - air (Order 3125198R94), Includes: Ref. 1 - 5

1шт.

1

3035559R1

CLAMP

- band (Order F84999)

1шт.

2

850470C1

BELLOWS

VALVE - evacuator

1шт.

3

412078C1

WING NUT

NUT ASSEMBLY - with gasket

1шт.

4

3125252R1

COVER ASSY

COVER - air cleaner

1шт.

5

3125251R1

FILTER, ELEMENT

ELEMENT - air cleaner

1шт.
