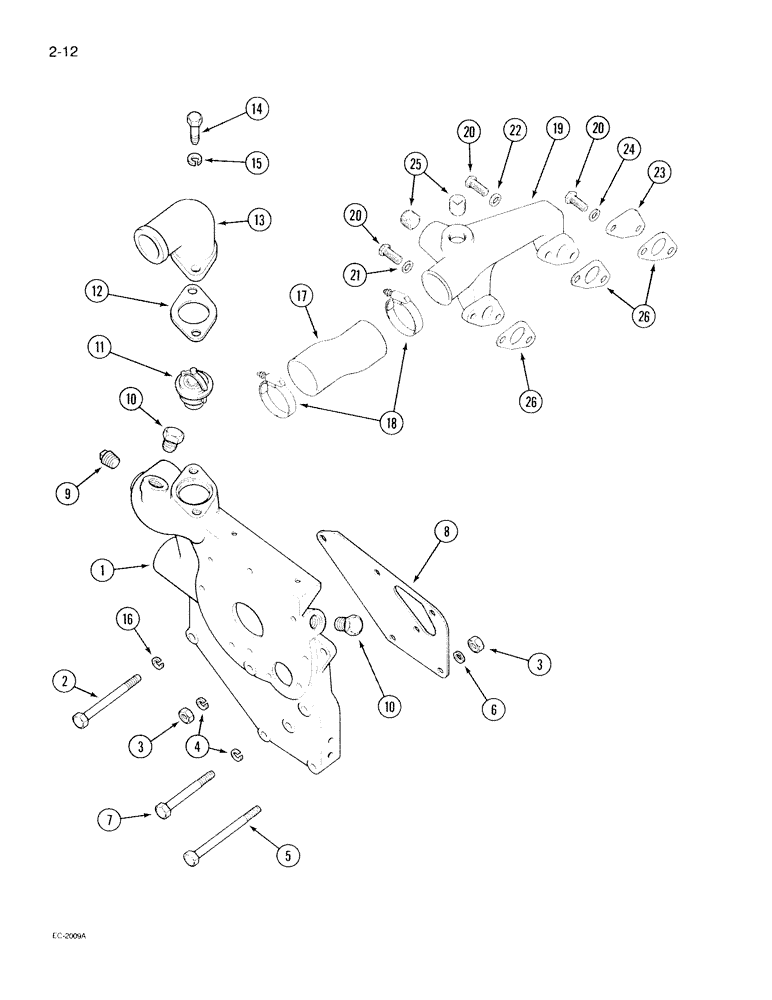

Запчасти Case IH 395 (2-012) - WATER PUMP CARRIER AND THERMOSTAT (02) - ENGINE

1

3136678R2

COVER

CARRIER - water pump

1шт.

2

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

1шт.

3

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

2шт.

4

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

5шт.

5

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- hex, 5/16 NC x 4 inch

1шт.

6

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

1шт.

7

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - hex, 5/16 NC x 3 inch

2шт.

8

3055999R3

GASKET

- water pump carrier

1шт.

Part of crankcase gaskets service kit

1шт.

9

445686

PLUG

- automotive square head, 3/8 inch PT

1шт.

10

444630

PLUG,Hex Hd, 1/2"-14

- automotive hex head, 1/2 inch PT

2шт.

11

3228046R1

THERMOSTAT

- coolant temperature

1шт.

12

3132143R2

GASKET,1mm Thk

- water outlet flange

1шт.

Part of cylinder head gasket service kit

1шт.

13

3136052R1

ELBOW

- water outlet

1шт.

14

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

15

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

3144028R2

HOSE

- Connecting, Coolant manifold 50.70 mm ID x 112.00 mm, SAE J20B Or SAE 20

1шт.

18

3218259R1

CLAMP,M40-60, Worm

- hose, coolant manifold

1шт.

19

3218034R1

MANIFOLD

- water collecting, coolant

1шт.

20

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Coolant manifold Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

21

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch, coolant manifold

4шт.

22

3136506R1

RING

- packing, coolant manifold

1шт.

23

3132721R1

COVER

- closing, coolant manifold

1шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Coolant manifold 5/16"

2шт.

25

444667

PLUG

- automotive square socket, 1/2 inch PT, coolant manifold

2шт.

26

3055306R2

GASKET

- manifold, water collecting, coolant

3шт.

Part of cylinder head gasket service kit

1шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets, Includes: Ref. 12 and 26 (See Figure 2-054), coolant manifold

1шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets, Includes: Ref. 8 (See Figure 2-056), coolant manifold

1шт.
